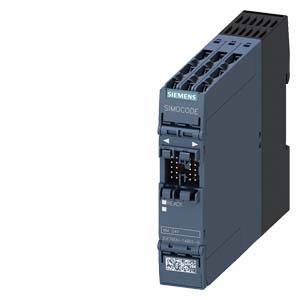

Siemens 3UF76001AB010 3UF7600-1AB01-0 PLC add-on module
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 259.66 / piece)
€ 259.66
plus VAT.
Technical specifications
- Electrical life: 100000
- Mechanical life: 1000 0000
- Design of the Electrical Connection: screw terminals.
- Thermal current 6 A
- Isolation voltage: 300 V
- Product type
PLC add-on module
- Type
3UF7600-1AB01-0
- Manufacturer part #
3UF76001AB010
- No. of digital inputs (max.)
4
- No. of inputs (max.)
4
- No. of outputs (max.)
2

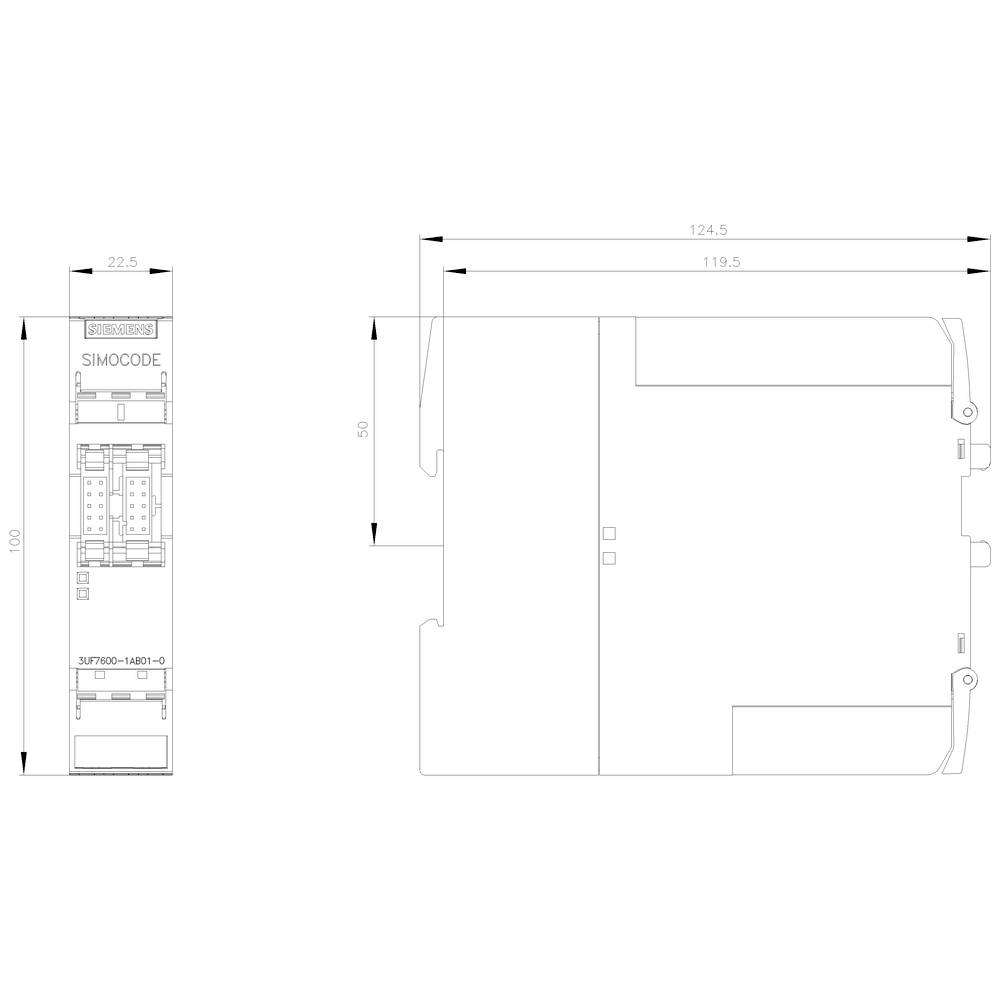

- Height
100 mm
- Length
124.5 mm
- Width
22.5 mm
IP20
- Dim
(L x W x H) 124.5 x 22.5 x 100 mm
- Content
1 pc(s)
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-25 °C
Other
Mono stable
4
0
0
4
IP20
0
2
Screw connection
TRUE
TRUE
FALSE
DC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1740731 Siemens 3UF76001AB010 3UF7600-1AB01-0 PLC add-on module
User & Safety Instructions
User & Safety Instructions 1740731 Siemens 3UF76001AB010 3UF7600-1AB01-0 PLC add-on module
Description
circuit breaker 3VA2 IEC frame 100 breaking capacity class M Icu=55kA @ 415 V 3-pole, line protection ETU320, li, In=100A overload protection Ir=40A ...100A short circuit protection iI=1,5... 12 x In busbar connection Undervoltage release (UVR) 208-230 V AC 50/60 Hz 2 Auxiliary switch HQ 1 trip alarm switch HQ
