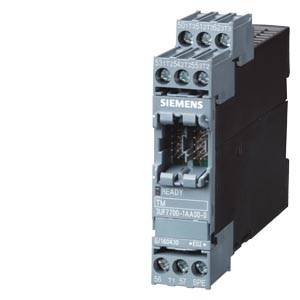

A Siemens product, probably an electrical module or relay, with part number and connections visible on the side.

Image similar

A Siemens product, probably an electrical module or relay, with part number and connections visible on the side.

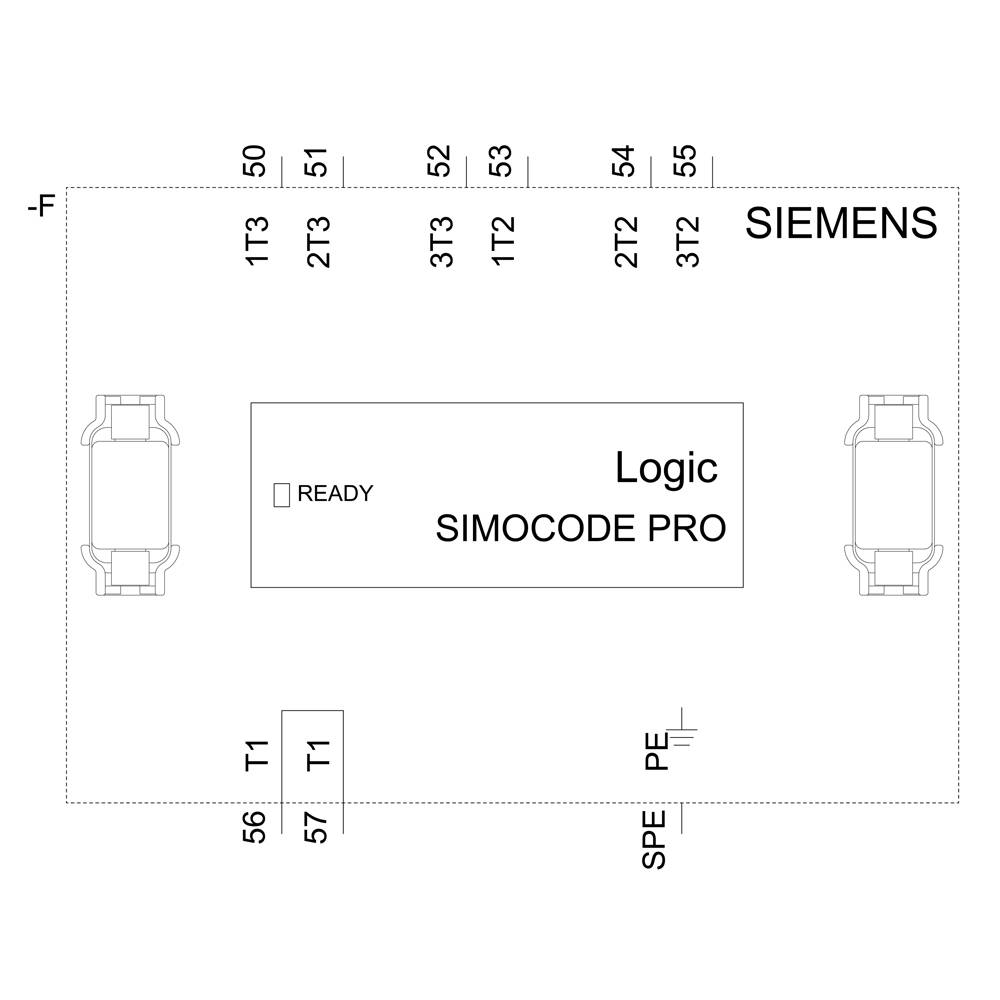

Wiring diagram shows Siemens SIMOCODE PRO with input and output connections and a 'READY' status in the centre.

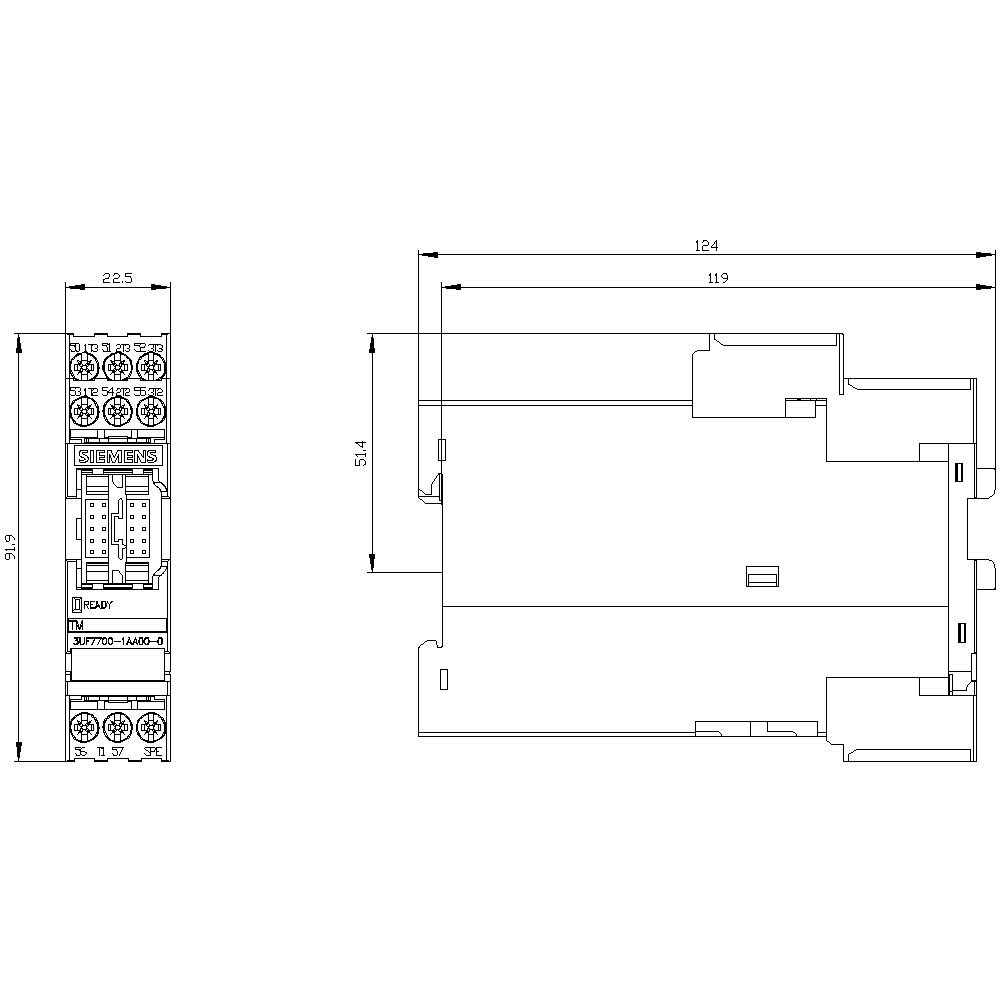

Technical drawing of an electrical module with dimensions in millimetres, showing front and top views for installation.

1/3

Image similar

Siemens

Our service for you

Datasheet (PDF)

Dispatches on Fri, 11 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 273.11 / piece)

€ 273.11

plus VAT.

Report legal concerns

Technical specifications

Surge voltage resistance: 4000 V
Design of the Electrical Connection: screw terminals.
Installation altitude at altitude: 2000 m

Compatible with (details): SIMOCODE pro V.

Product type: PLC temperature unit

Type: 3UF7700-1AA00-0

Manufacturer part #: 3UF77001AA000

No. of inputs (max.): 3

Height: 92 mm

Length: 124 mm

Width: 22.5 mm

: IP20

Dim: (L x W x H) 124 x 22.5 x 92 mm

Content: 1 pc(s)

Fitting type (details): Screw and snap

Max. ambient temperature: +60 °C

Min. ambient temperature: -25 °C

: Temperature module

: 0

: 3

: 0

: 0

: IP20

: 0

: Screw connection

: TRUE

: FALSE

: FALSE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1740733 Siemens 3UF77001AA000 3UF7700-1AA00-0 PLC temperature unit

User & Safety Instructions

User & Safety Instructions 1740733 Siemens 3UF77001AA000 3UF7700-1AA00-0 PLC temperature unit

Description

Current measuring module, Set current 20...200 A overall width 120 mm, busbar connection
