Siemens 3UG4512-2BR20 3UG45122BR20 Monitoring relay
EAN:
Part number:
Item no:
Product type
Monitoring relay
Operating voltage
690 V
Type
3UG4512-2BR20

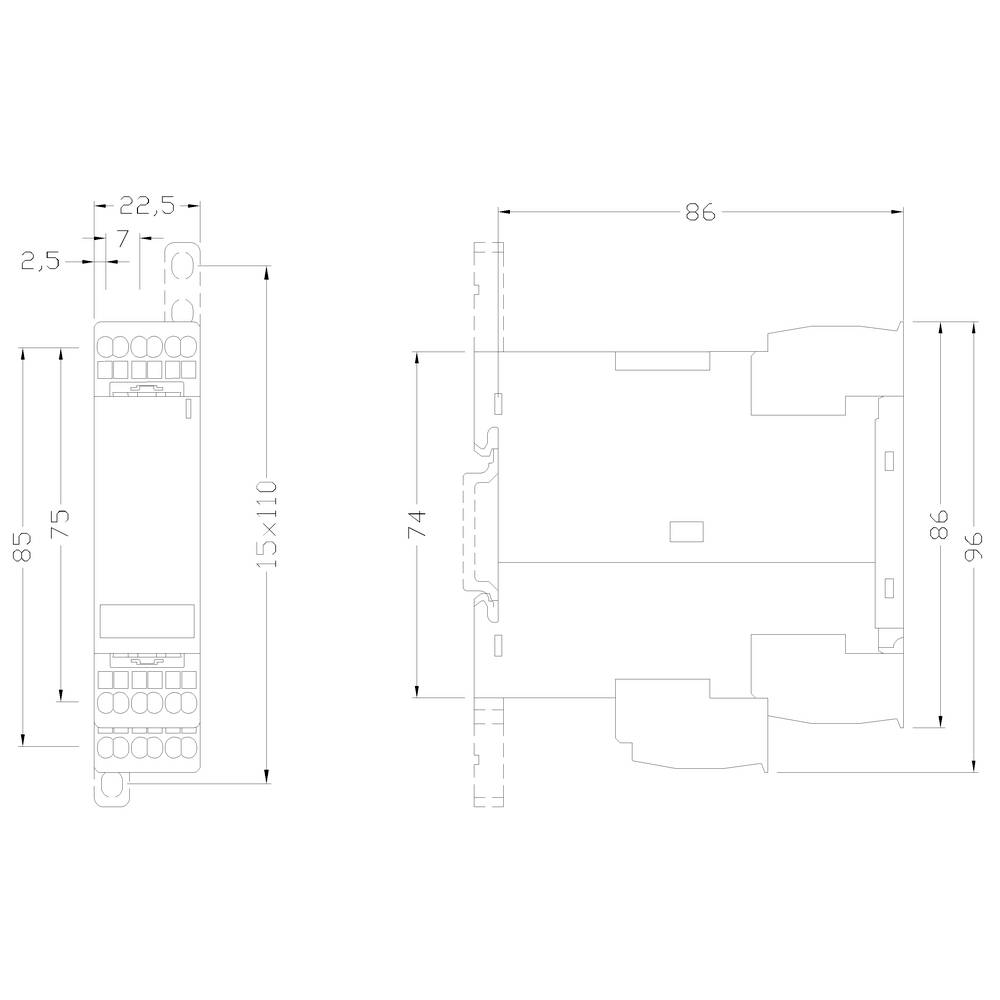

Dim
(L x W x H) 91 x 22.5 x 94 mm
Weight
140 g
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
Technical specifications
- Mounting type: Snap-on mounting
- Design of the electrical connection: Spring-loaded connection
- Type
3UG4512-2BR20
- Product type
Monitoring relay
- Operating voltage
690 V
- Dim
(L x W x H) 91 x 22.5 x 94 mm
- Weight
140 g
- Width
22.5 mm
- Height
94 mm
- Length
91 mm
22.5
94 mm
91 mm
TRUE
TRUE
TRUE
FALSE
FALSE
FALSE
Spring clamp connection
AC
0
0
2
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1701621 Siemens 3UG4512-2BR20 3UG45122BR20 Monitoring relay
User & Safety Instructions
User & Safety Instructions 1701621 Siemens 3UG4512-2BR20 3UG45122BR20 Monitoring relay
Description
Analog monitoring relay Phase failure and sequence 3 x 160...690 V 50...60 Hz AC 2 change-over contacts spring-type connection system Network monitoring relay with analog setting SIRIUS 3UG4 for monitoring phase sequence, phase failure and phase asymmetry and/or undervoltage, e.g. with mobile systems such as A/C compressors, refrigerated containers, construction site compressors or cranes. Worldwide use thanks to international certificates. Different versions enable application-related selection of products. Less space required in the control cabinet thanks to slim design. All versions with removable terminals. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection. Versions with a wide voltage range and without auxiliary voltage can be used in any networks worldwide. The comprehensive range of accessories, such as unit labeling plates, push-in lugs and cover caps, is standardized for all relays. SIRIUS relays - one range for every application.
