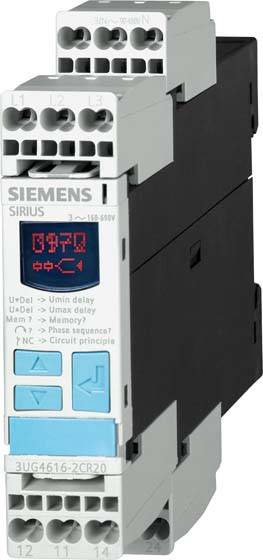

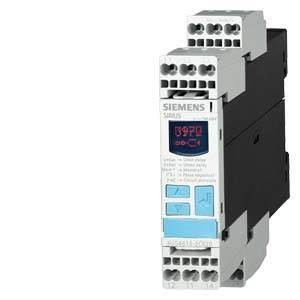

Siemens 3UG4617-2CR20 3UG46172CR20 Network monitor
EAN:
Part number:
Item no:
Product type
Network monitor
Operating voltage
690 V
Type
3UG4617-2CR20

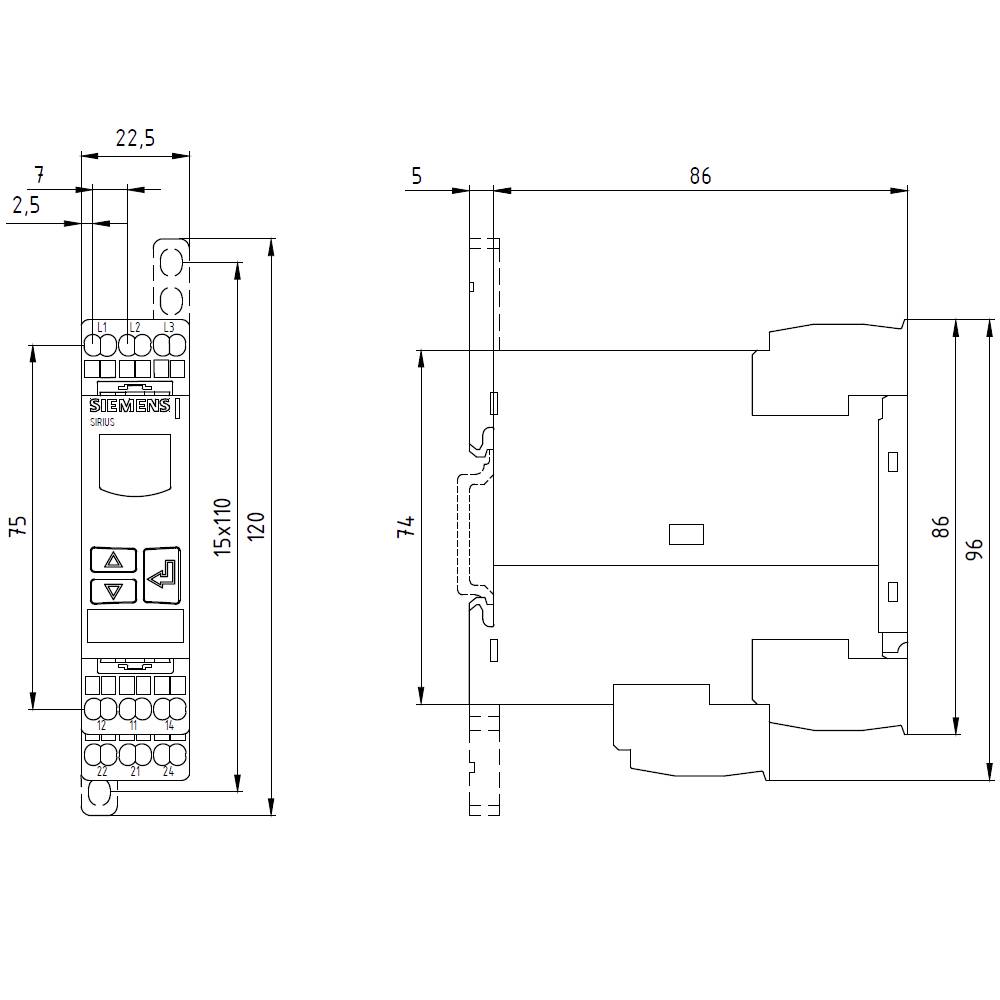

Dim
(L x W x H) 91 x 22.5 x 94 mm
Weight
139 g
Datasheet (PDF)
Number
Total (€ 251.26 / piece)
€ 251.26
plus VAT.
Technical specifications
- Mounting type: Snap-on mounting
- Design of the electrical connection: Spring-loaded connection
- Type
3UG4617-2CR20
- Product type
Network monitor
- Operating voltage
690 V
- Dim
(L x W x H) 91 x 22.5 x 94 mm
- Weight
139 g
- Width
22.5 mm
- Height
94 mm
- Length
91 mm
22.5
94 mm
91 mm
TRUE
TRUE
TRUE
TRUE
TRUE
TRUE
Spring clamp connection
20 s
0.1 s
AC
0
0
2
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1743817 Siemens 3UG4617-2CR20 3UG46172CR20 Network monitor
User & Safety Instructions
User & Safety Instructions 1743817 Siemens 3UG4617-2CR20 3UG46172CR20 Network monitor
Description
Digital monitoring relay Current monitoring, 22.5 mm from 2-500 mA AC/DC 0vershoot and undershoot 24 to 240 V AC/DC 50 to 60 Hz DC and AC ON delay and noise pulses delay 0.1 to 20 s Hysteresis 0.1 to 250 mA 1 change-over contact with or without fault buffer spring-type connection system
