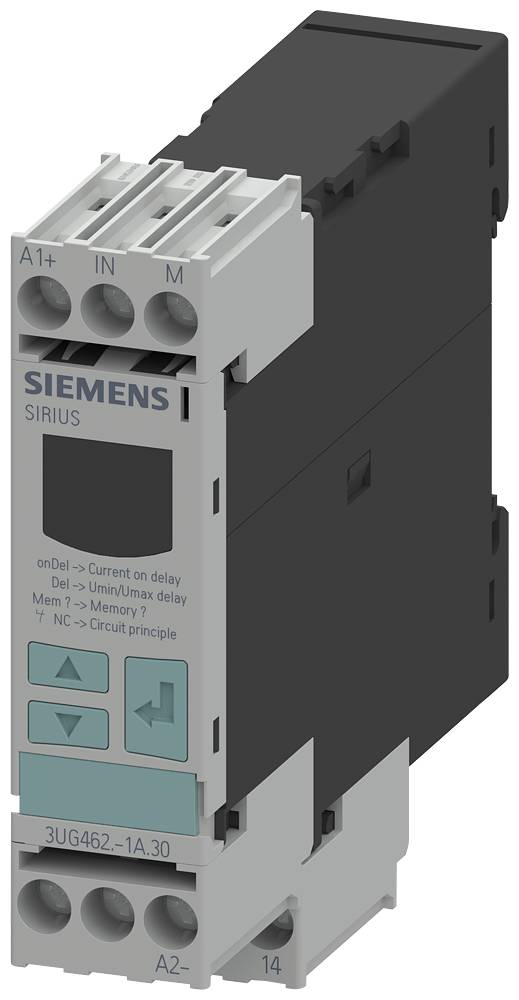

Siemens 3UG4622-1AW30 Single Phase Current Monitoring Relay, Digital, N/A
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Monitoring relay
Functions
1-phase
Overcurrent
Undercurrent
Max. operating voltage
240 V DC
240 V AC
Contact type
1 change-over
Datasheet (PDF)
Number
Total (€ 155.45 / piece)
€ 218.49
-29 %
€ 155.45
plus VAT.
14-day return policy included
Technical specifications
- Hysteresis: 0.01 - 5 A; Mounting Type: Snap-on mounting
- Packaging type
Piece
- Product type
Monitoring relay
- Type
3UG4622-1AW30
- Reading range (min.)
0.05 A/DC
0.05 A/AC
- Reading range (max.)
10 A/DC
10 A/AC
- Functions
1-phase
Overcurrent
Undercurrent
- Operating voltage
240 V
- Min. operating voltage
24 V DC
24 V AC
- Max. operating voltage
240 V DC
240 V AC
- Operating voltage
24, 24 - 240, 240 V DC, V AC
- Amperage adjustment range (min.)
0.05 A
- Amperage adjustment range (max.)
15 A
- Adjustment range (amperage)
0.05 - 15 A
- Contact type
1 change-over
- Switching voltage (max.)
240 V DC/AC
- Electrical lifespan
100000
- Durability
1000 0000
- Connection
Screws
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
22.5 mm
- Height
92 mm
- Depth
31 mm
- Dim
(L x W x H) 86 x 22.5 x 92 mm
- Content
1 pc(s)
- Factory colour
Multicolour
- Length
86 mm
- Type
1-phase current monitoring
- Hysteresis
0.01 – 5 A
- Type
3UG4622-1AW30
- Operating voltage
24 - 240 V DC/AC
22.5
92 mm
91 mm
FALSE
FALSE
FALSE
TRUE
TRUE
Screw connection
20 s
0.1 s
20 s
0.1 s
AC/DC
0
0
1
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 502521 Siemens 3UG4622-1AW30 Single Phase Current Monitoring Relay, Digital, N/A
User & Safety Instructions
User & Safety Instructions 502521 Siemens 3UG4622-1AW30 Single Phase Current Monitoring Relay, Digital, N/A
Information
Information 502521 Siemens 3UG4622-1AW30 Single Phase Current Monitoring Relay, Digital, N/A
Conformity certificate
Conformity certificate 502521 Siemens 3UG4622-1AW30 Single Phase Current Monitoring Relay, Digital, N/A
Description
The SIRIUS monitoring relay 3UG4 provide optimum protection for machinery and equipment, permanently installed to protect against over-or undervoltage, or for the complete network monitoring with portable equipment. Also, monitoring of the load of motors and the functionality of electrical loads is done by monitoring relay 3UG4 for current, cos phi and active current monitoring. The monitoring relay 3UG4 also control non-electrical quantities such as liquid levels or even the speed of motors
Special features: Due to the Wide span used by all networks in the world, permanent display of value and type of error in digital versions, all versions with removable terminals, small width.
Special features: Due to the Wide span used by all networks in the world, permanent display of value and type of error in digital versions, all versions with removable terminals, small width.
