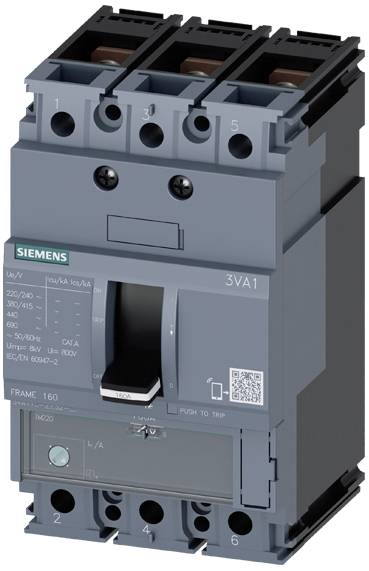

Siemens 3VA1110-4EE32-6AA0 Circuit breaker 1 pc(s)
EAN:
Part number:
Item no:
Product type
Circuit breaker
Connection
Ring terminal
Type
3VA1110-4EE32-6AA0
No. of pins
3-pin
Compatible with series
Siemens 3VA series
Highlights & Details
1 x switch: 3VA1110-4EE32-0AA0 1x RCD: 3VA9113-0RL21 1x Auxiliary switch: 3VA9988-0AA12 1x Rotary drive with shaft stub: 3VA9157-0GK00 1x extension...
Our service for you
Technical specifications
- Product type
Circuit breaker
- Type
3VA1110-4EE32-6AA0
- No. of pins
3-pin
- Compatible with series
Siemens 3VA series
- Compatible with
Siemens
- Mounting type
Fixed
- Features
+ auxiliary contact
- Connection
Ring terminal
- Content
1 pc(s)
- RoHS-compliant
Yes
0
0
100 A
3
0
28.9 W
IP40
36 kA
Built-in device fixed built-in technique
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3044319 Siemens 3VA1110-4EE32-6AA0 Circuit breaker 1 pc(s)
Description
1x switch: 3VA1110-4EE32-0AA0 1x RCD: 3VA9113-0RL21 1x Auxiliary switch:3VA9988-0AA12 1x Rotary drive w/ shaft stop: 3VA9157-0GK00 1x Extension w. 300mm 8x8mm: 8UD1900-2WA00 1x spacer 8x8mm: 8UD1900-2DA00 1x handle with shield: 8UD1721-0AB21 2x connector extension front 3p: 3VA9153-0QB00 1x terminal cover l.4p: 3VA9111-0WF40 1x terminal cover verl.3p: 3VA9111-0WF30 3x 3kV cable with 6qmm l = 2m 3x ring cable lugs M6, 6qmm
