Buy Siemens 3VA2510-7HM42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 400 - 1000 A Switching voltage (max.): 6

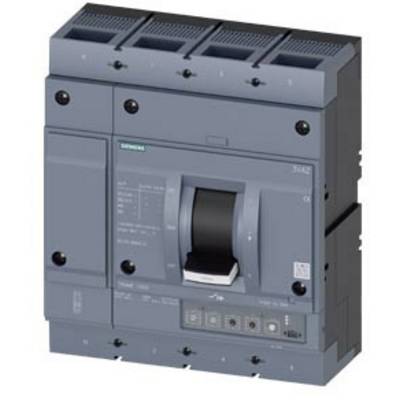

A grey Siemens circuit breaker with a rotary handle in the centre, technical specifications shown on the front.

Image similar

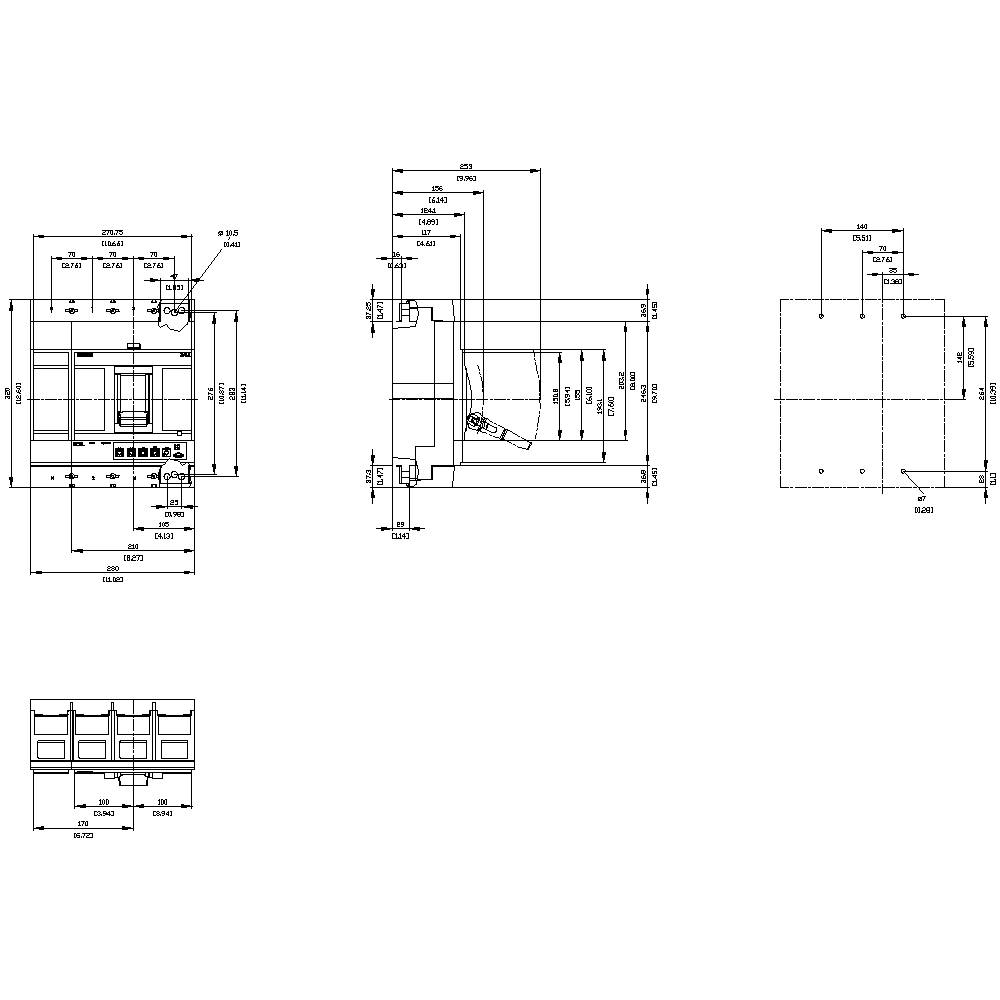

Technical drawing of a multi-stage electrical cabinet with precise dimensions in mm. Shows front/side/top view for installation and planning.

1/2

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

1000 A

Connection

Screws

Type

3VA2510-7HM42-0AA0

Amperage adjustment range (min.)

400 A

Datasheet (PDF)

Sales and shipping:

Number

Piece(s)

Total (€ 7,427.73 / piece)

€

Report legal concerns

Technical specifications

Design: System Protection
Power loss: 41 W
Mechanical life: 10000
Electrical life: 5000
Isolation voltage: 800 V
Mains frequency: 50/60 Hz.

Product type: Circuit breaker

Type: 3VA2510-7HM42-0AA0

Amperage adjustment range (min.): 400 A

Amperage adjustment range (max.): 1000 A

Adjustment range (amperage): 400 - 1000 A

No. of pins: 4-pin

Switching voltage (max.): 690 V AC

Mounting type: Fixed

Min. temperature: -25 °C

Max. temperature: +70 °C

Breaking capacity rating: C

OCR type: ETU330

Connection: Screws

: IP40

Depth: 120 mm

Width: 280 mm

Height: 320 mm

Dim: (W x H x D) 280 x 320 x 120 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 1000 A

: 4

: 0

: 330 W

: IP40

: Front side

: FALSE

: Screw connection

: Rocker lever

: FALSE

: 110 kA

: TRUE

: TRUE

: FALSE

: Built-in device fixed built-in technique

: TRUE

: TRUE

Variants(All information is without VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Siemens 3VA1020-4ED36-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 20 - 20 A Switching voltage (max.): 690 V AC (W x H x D) 76.2 x 130 x 70 mm

Item no:1700000

20 A

Siemens 3VA1050-3ED36-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 50 - 50 A Switching voltage (max.): 690 V AC (W x H x D) 76.2 x 130 x 70 mm

Item no:1700397

50 A

Siemens 3VA1063-3ED32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 63 - 63 A Switching voltage (max.): 690 V AC (W x H x D) 76.2 x 130 x 70 mm

Item no:1700527

63 A

Siemens 3VA1096-4ED42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 16 - 16 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm

Item no:1700546

16 A

Siemens 3VA1096-4ED46-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 16 - 16 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm

Item no:1700547

16 A

Siemens 3VA1063-2ED42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 63 - 63 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm

Item no:1700646

63 A

Siemens 3VA1040-3ED42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 40 - 40 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm

Item no:1700749

40 A

Siemens 3VA1063-2ED46-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 63 - 63 A Switching voltage (max.): 690 V AC (W x H x D) 101.6 x 130 x 70 mm

Item no:1700894

63 A

Siemens 3VA1096-2ED36-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 16 - 16 A Switching voltage (max.): 690 V AC (W x H x D) 76.2 x 130 x 70 mm

Item no:1700899

16 A

Siemens 3VA1096-3ED32-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 16 - 16 A Switching voltage (max.): 690 V AC (W x H x D) 76.2 x 130 x 70 mm

Item no:1700900

16 A

Documents & Downloads

Datasheet

Datasheet 1706519 Siemens 3VA2510-7HM42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 400 - 1000 A Switching voltage (max.): 6

User & Safety Instructions

User & Safety Instructions 1706519 Siemens 3VA2510-7HM42-0AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 400 - 1000 A Switching voltage (max.): 6

Description

circuit breaker 3VA2 IEC frame 1000 breaking capacity class H Icu=85kA @ 415V 3-pole, line protection ETU350, LSI, In=1000A overload protection ir=400A ...1000A short circuit protection Isd=1,5... 10 x Ir, iI=10 x In busbar connection shunt trip (stl) 110-127 V DC, AC 50/60 Hz 2 Auxiliary switch hq 1 trip alarm switch HQ
