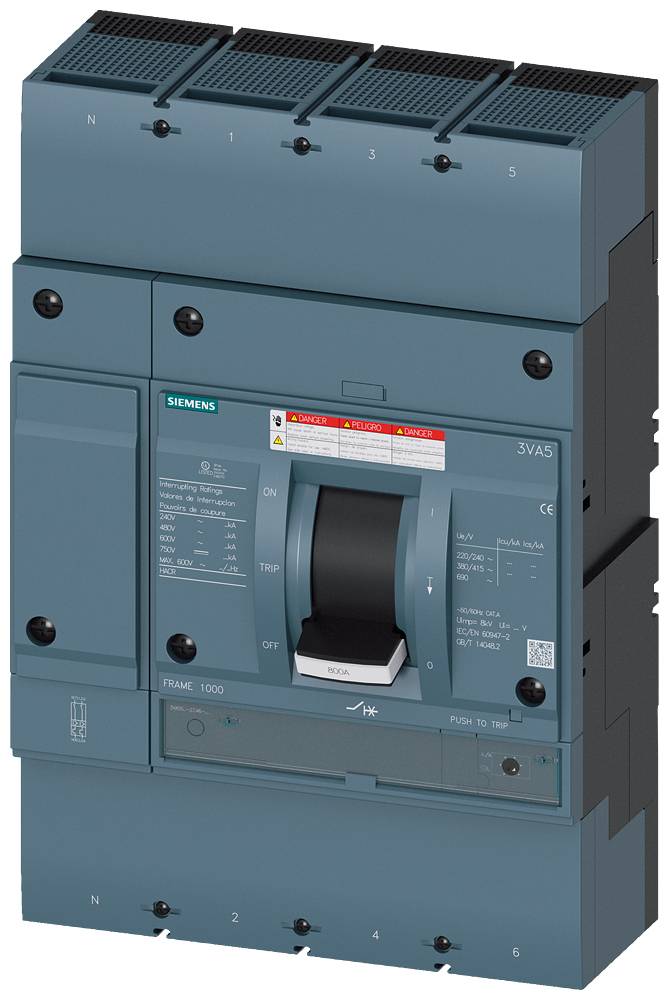

Siemens 3VA5570-6GC46-2AA0 Circuit breaker 1 pc(s) Single
EAN:
Part number:
Item no:
Product type
Circuit breaker
Packaging type
Single
Type
3VA5570-6GC46-2AA0
No. of pins
4-pin
Compatible with series
Siemens 3VA series
Datasheet (PDF)
Highlights & Details
Circuit breaker 3VA5 UL Frame 800 Breaking capacity Class H 65kA @ 480 V 4-pin
Our service for you
Technical specifications
- Packaging type
Single
- Product type
Circuit breaker
- Type
3VA5570-6GC46-2AA0
- No. of pins
4-pin
- Compatible with series
Siemens 3VA series
- Compatible with
Siemens
- Breaking capacity rating
H
- OCR type
TM230
- Content
1 pc(s)
- RoHS-compliant
Yes
0
0
700 A
4
0
183 W
IP40
Rocker lever
70 kA
Built-in device fixed built-in technique
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2872442 Siemens 3VA5570-6GC46-2AA0 Circuit breaker 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 2872442 Siemens 3VA5570-6GC46-2AA0 Circuit breaker 1 pc(s) Single
Description
Circuit breaker 3VA5 UL Frame 800 switch rating H 65kA @ 480 V 4-pin, system protection TM230,FTAM, In=700A overload protection IR=700A fixed set Short circuit protection II=5...10 x In N-conductor 1 cable connection on both sides
