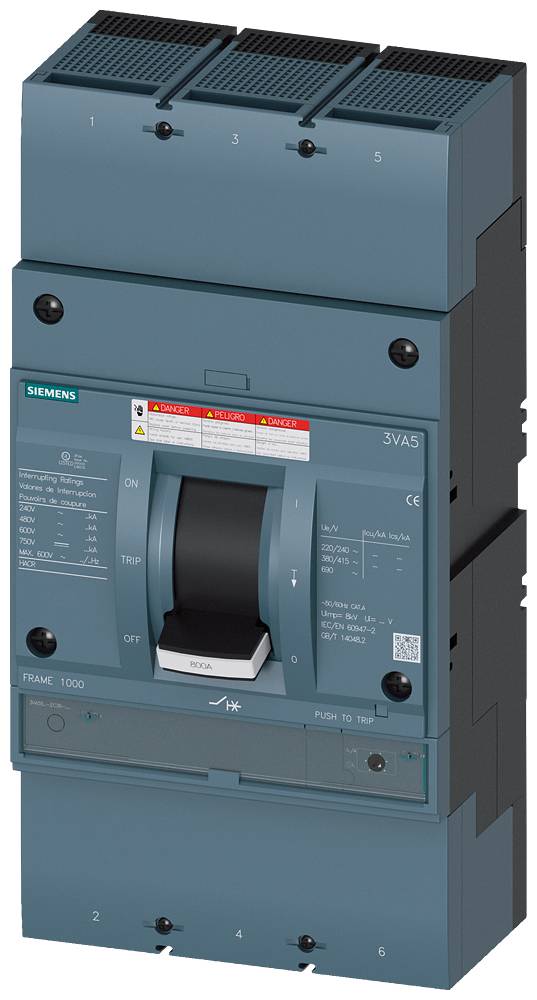

Siemens 3VA5580-6EC36-2AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 800 A (max)
EAN:
Part number:
Item no:
Product type
Circuit breaker
Amperage adjustment range (max.)
800 A
Type
3VA5580-6EC36-2AA0
Adjustment range (amperage)
800 A (max)
No. of pins
3-pin
Datasheet (PDF)
Highlights & Details
Circuit breaker 3VA5 UL Frame 800 Breaking capacity Class H 65kA @ 480 V 3-pin
Our service for you
Technical specifications
- Product type
Circuit breaker
- Type
3VA5580-6EC36-2AA0
- Amperage adjustment range (max.)
800 A
- Adjustment range (amperage)
800 A (max)
- No. of pins
3-pin
- Breaking capacity rating
H
- OCR type
TM230
- Content
1 pc(s)
- RoHS-compliant
Yes
0
0
800 A
3
0
210 W
IP40
Rocker lever
70 kA
Built-in device fixed built-in technique
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2872456 Siemens 3VA5580-6EC36-2AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 800 A (max)
User & Safety Instructions
User & Safety Instructions 2872456 Siemens 3VA5580-6EC36-2AA0 Circuit breaker 1 pc(s) Adjustment range (amperage): 800 A (max)
Description
Circuit breaker 3VA5 UL FRAME 800 switch capacity class H 65kA @ 480 V 3-pin, system protection TM230,FTAM, In=800A Overload protection IR=800A fixed set Short circuit protection II=5...10 x In cable connection on both sides
