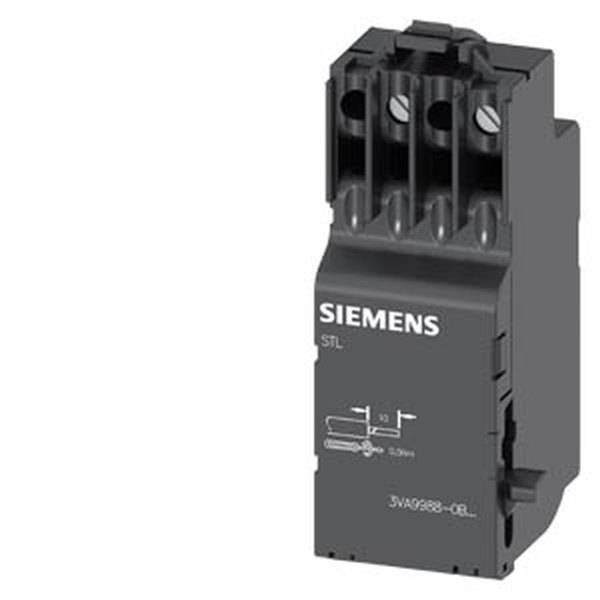

Siemens 3VA9988-0BL33 Trigger 1 pc(s) (W x H x D) 25.7 x 65.1 x 31.2 mm
EAN:
Part number:
Item no:
Product type
Trigger
Type
3VA9988-0BL33
Control voltage (min.)
208 V AC
Control voltage (max.)
277 V AC
Control voltage range
208 - 277 V AC
Datasheet (PDF)
Number
Total (€ 72.26 / piece)
€ 72.26
plus VAT.
14-day return policy included
Technical specifications
- Product type
Trigger
- Type
3VA9988-0BL33
- Control voltage (min.)
208 V AC
- Control voltage (max.)
277 V AC
- Control voltage range
208 - 277 V AC
- Compatible with series
Siemens 3VA series
- Compatible with
Siemens
- Min. temperature
-20 °C
- Max. temperature
+60 °C
IP20
- Depth
31.2 mm
- Width
25.7 mm
- Height
65.1 mm
- Dim
(W x H x D) 25.7 x 65.1 x 31.2 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Other
TRUE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1721548 Siemens 3VA9988-0BL33 Trigger 1 pc(s) (W x H x D) 25.7 x 65.1 x 31.2 mm
Datasheet 1721548 Siemens 3VA9988-0BL33 Trigger 1 pc(s) (W x H x D) 25.7 x 65.1 x 31.2 mm
User & Safety Instructions
User & Safety Instructions 1721548 Siemens 3VA9988-0BL33 Trigger 1 pc(s) (W x H x D) 25.7 x 65.1 x 31.2 mm
Description
display DSP 800 accessory for: 1 to 8 3VA-breaker Communication for 3VA molded-case circuit breakers. The 3VA molded case circuit breaker uses an innovative, modern communication concept. This concept is based on the COM100 or COM800 breaker data server, which can link up to eight molded case circuit breakers to different bus systems. This allows plants to transfer relevant data such as energy and diagnostic information to a higher-level automation system for processing. Key features of these accessory components: 1. Integrated metering function in series 8 ETUs enables energy data acquisition without additional external measuring transformers. 2. The COM800 breaker data server provides a cost-efficient communication interface for up to 8 3VA2 molded-case circuit breakers. 3. Integrated Modbus TCP interface (COM800/COM100). 3. Expansion modules available for COM800/COM100 breaker data server for connection to PROFINET, PROFIBUS, Modbus RTU. 4. Universal S0 interface for the output of energy pulses. 6. Status and measured values of up to 8 molded-case circuit breakers displayed in the cubicle door with DSP800. www.siemens.de/3VA. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
