Buy Siemens 4AM48425CJ100FA0 Autotransformer 1 x 462 V, 440 V, 418 V 1 x 110 V 500 VA 4.545 A

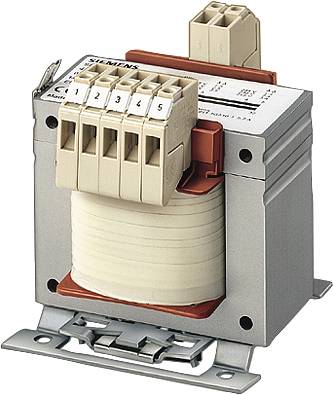

An electrical transformer with plug connectors and numbered terminals. Device for voltage conversion in electrical engineering applications.

Image similar

Our service for you

Datasheet (PDF)

Dispatches on Thu, 29 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 256.30 / piece)

€ 256.30

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

TRANSFORMER SITAS PHASES:1

1 x 462 V, 440 V, 418 V
1 x 110 V
4.545 A
500 VA

Technical specifications

Suitability: CE CRUus

Product type: Autotransformer

Output voltage: 110 V

Output current: 4.545 A

No. of outputs: 1 x

No. of inputs: 1 x

: 500 VA

Input voltage: 462 V
440 V
418 V

Connection: Screws
CEE 7/16 CEE plug

Width: 122 mm

Height: 121 mm

Length: 134 mm

Dim: (L x W x H) 134 x 122 x 121 mm

Output voltage (number x voltage): 1 x 110 V

Design type: EI 120/72

Input voltage (number x voltage): 1 x 462 V, 440 V, 418 V

Frequency: 50-60 Hz

Content: 1 pc(s)

Insulation class: T 40/B

Mounting type: Screw fastening

Test mark: UL/CSA-RECOGNIZED

RoHS-compliant: Yes

Protection class: IP00

Type: 4AM4842-5CJ10-0FA0

Max. ambient temperature: +40 °C

Efficiency: 0.91 %

: 122

: 121 mm

: 134 mm

: FALSE

: Other

: IP00

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: B

: FALSE

: 3.8 %

: 500 VA

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Connection

Output current

Input voltage

Product type

Output voltage

Siemens 4AM48425CJ100FA0 Autotransformer 1 x 462 V, 440 V, 418 V 1 x 110 V 500 VA 4.545 A

Item no:1751221

This article

ScrewsCEE 7/16 CEE plug

4.545 A

462 V440 V418 V

Autotransformer

110 V

Siemens 4AM48424TV000EB0 Transformer 1 x 242 V, 230 V, 218 V 1 x 24 V 500 VA 11.9 A

Item no:1698790

ScrewsCEE 7/16 CEE plug

11.9 A

242 V230 V218 V

Transformer

24 V

Siemens 4AM48425MT100FA0 Transformer 1 x 725 V, 690 V, 655 V 1 x 230 V 500 VA 2.17 A

Item no:1699018

ScrewsCEE 7/16 CEE plug

2.17 A

725 V690 V655 V

Transformer

230 V

Siemens 4AM48428DN000EA0 Transformer 1 x 550 V, 525 V, 500 V, 480 V, 460 V, 440 V, 415 V, 400 V, 380 V 1 x 24 V 500 VA 20.833 A

Item no:1699019

ScrewsCEE 7/16 CEE plug

20.833 A

550 V525 V500 V480 V460 V440 V415 V400 V380 V

Transformer

24 V

Siemens 4AM48428EN000EA0 Transformer 1 x 600 V, 575 V, 550 V, 525 V, 500 V, 480 V, 460 V, 440 V, 415 V 1 x 24 V 500 VA 20.8 A

Item no:1699020

ScrewsCEE 7/16 CEE plug

20.8 A

600 V575 V550 V525 V500 V480 V460 V440 V415 V

Transformer

24 V

Siemens 4AM48425AJ100FA0 Transformer 1 x 420 V, 400 V, 380 V 1 x 110 V 500 VA 4.55 A

Item no:1704191

ScrewsCEE 7/16 CEE plug

4.55 A

420 V400 V380 V

Transformer

110 V

Siemens 4AM48425AT100FB1 Transformer 1 x 420 V, 400 V, 380 V 1 x 230 V 500 VA 2.174 A

Item no:1704192

Spring-loaded heavy duty connector

2.174 A

420 V400 V380 V

Transformer

230 V

Siemens 4AM48425LT100FA0 Transformer 1 x 693 V, 660 V, 627 V 1 x 230 V 500 VA 2.174 A

Item no:1704370

ScrewsCEE 7/16 CEE plug

2.174 A

693 V660 V627 V

Transformer

230 V

Siemens 4AM48424TJ100FA0 Transformer 1 x 242 V, 230 V, 218 V 1 x 110 V 500 VA 4.55 A

Item no:1753365

ScrewsCEE 7/16 CEE plug

4.55 A

242 V230 V218 V

Transformer

110 V

Siemens 4AM48424TN000EB0 Transformer 1 x 242 V, 230 V, 218 V 1 x 24 V 500 VA 20.8 A

Item no:1753367

ScrewsCEE 7/16 CEE plug

20.8 A

242 V230 V218 V

Transformer

24 V

Documents & Downloads

Datasheet

Datasheet 1751221 Siemens 4AM48425CJ100FA0 Autotransformer 1 x 462 V, 440 V, 418 V 1 x 110 V 500 VA 4.545 A

User & Safety Instructions

User & Safety Instructions 1751221 Siemens 4AM48425CJ100FA0 Autotransformer 1 x 462 V, 440 V, 418 V 1 x 110 V 500 VA 4.545 A

Description

TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):0,4 /1,44 UPRI(V):230+/-5% USEC(V):230 ISEC(A):1,74 F(HZ):50...60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:40 /B IP00 TYPE OF TERMINALS:SCREW/TAB CONNECTION INSTALLATION:SCREW EN 61558-2-1, -2-2, -2-4 UL/CSA-RECOGNIZED CONTROL CIRCUIT TRANSFORMER ISOLATION TRANSFORMER
