Buy Siemens 4AM48428JD400FA0 Transformer 1 x 415 V, 400 V, 385 V, 245 V, 230 V, 215 V 1 x 230 V, 115 V 500 VA

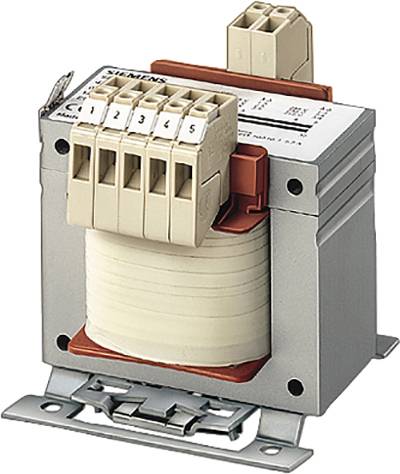

A Siemens electrical transformer with multiple numbered terminal connections, mounted on a metal base.

Image similar

Our service for you

Datasheet (PDF)

Dispatches on Mon, 28 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 281.51 / piece)

€ 281.51

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

TRANSFORMER SITAS PHASES:1

1 x 415 V, 400 V, 385 V, 245 V, 230 V, 215 V
1 x 230 V, 115 V
500 VA

Technical specifications

Suitability: CE CRUus

Product type: Transformer

Output voltage: 230 V
115 V

No. of outputs: 1 x

No. of inputs: 1 x

: 500 VA

Input voltage: 415 V
400 V
385 V
245 V
230 V
215 V

Connection: Screws
CEE 7/16 CEE plug

Width: 122 mm

Height: 121 mm

Length: 134 mm

Dim: (L x W x H) 134 x 122 x 121 mm

Output voltage (number x voltage): 1 x 230 V, 115 V

Design type: EI 120/72

Input voltage (number x voltage): 1 x 415 V, 400 V, 385 V, 245 V, 230 V, 215 V

Frequency: 50-60 Hz

Content: 1 pc(s)

Insulation class: T 40/B

Mounting type: Screw fastening

Test mark: cRUus

RoHS-compliant: Yes

Protection class: IP00

Type: 4AM4842-8JD40-0FA0

Max. ambient temperature: +40 °C

Min. ambient temperature: 40 °C

Efficiency: 0.91 %

: 122

: 121 mm

: 134 mm

: Other

: IP00

: FALSE

: 500 W

: FALSE

: FALSE

: B

: FALSE

: 3.8 %

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Connection

Output current

Input voltage

Product type

Output voltage

Siemens 4AM48424TV000EB0 Transformer 1 x 242 V, 230 V, 218 V 1 x 24 V 500 VA 11.9 A

Item no:1698790

ScrewsCEE 7/16 CEE plug

11.9 A

242 V230 V218 V

Transformer

24 V

Siemens 4AM48425MT100FA0 Transformer 1 x 725 V, 690 V, 655 V 1 x 230 V 500 VA 2.17 A

Item no:1699018

ScrewsCEE 7/16 CEE plug

2.17 A

725 V690 V655 V

Transformer

230 V

Siemens 4AM48428DN000EA0 Transformer 1 x 550 V, 525 V, 500 V, 480 V, 460 V, 440 V, 415 V, 400 V, 380 V 1 x 24 V 500 VA 20.833 A

Item no:1699019

ScrewsCEE 7/16 CEE plug

20.833 A

550 V525 V500 V480 V460 V440 V415 V400 V380 V

Transformer

24 V

Siemens 4AM48428EN000EA0 Transformer 1 x 600 V, 575 V, 550 V, 525 V, 500 V, 480 V, 460 V, 440 V, 415 V 1 x 24 V 500 VA 20.8 A

Item no:1699020

ScrewsCEE 7/16 CEE plug

20.8 A

600 V575 V550 V525 V500 V480 V460 V440 V415 V

Transformer

24 V

Siemens 4AM48425AJ100FA0 Transformer 1 x 420 V, 400 V, 380 V 1 x 110 V 500 VA 4.55 A

Item no:1704191

ScrewsCEE 7/16 CEE plug

4.55 A

420 V400 V380 V

Transformer

110 V

Siemens 4AM48425AT100FB1 Transformer 1 x 420 V, 400 V, 380 V 1 x 230 V 500 VA 2.174 A

Item no:1704192

Spring-loaded heavy duty connector

2.174 A

420 V400 V380 V

Transformer

230 V

Siemens 4AM48425LT100FA0 Transformer 1 x 693 V, 660 V, 627 V 1 x 230 V 500 VA 2.174 A

Item no:1704370

ScrewsCEE 7/16 CEE plug

2.174 A

693 V660 V627 V

Transformer

230 V

Siemens 4AM48425CJ100FA0 Autotransformer 1 x 462 V, 440 V, 418 V 1 x 110 V 500 VA 4.545 A

Item no:1751221

ScrewsCEE 7/16 CEE plug

4.545 A

462 V440 V418 V

Autotransformer

110 V

Siemens 4AM48424TJ100FA0 Transformer 1 x 242 V, 230 V, 218 V 1 x 110 V 500 VA 4.55 A

Item no:1753365

ScrewsCEE 7/16 CEE plug

4.55 A

242 V230 V218 V

Transformer

110 V

Siemens 4AM48424TN000EB0 Transformer 1 x 242 V, 230 V, 218 V 1 x 24 V 500 VA 20.8 A

Item no:1753367

ScrewsCEE 7/16 CEE plug

20.8 A

242 V230 V218 V

Transformer

24 V

Documents & Downloads

Datasheet

Datasheet 1754007 Siemens 4AM48428JD400FA0 Transformer 1 x 415 V, 400 V, 385 V, 245 V, 230 V, 215 V 1 x 230 V, 115 V 500 VA

User & Safety Instructions

User & Safety Instructions 1754007 Siemens 4AM48428JD400FA0 Transformer 1 x 415 V, 400 V, 385 V, 245 V, 230 V, 215 V 1 x 230 V, 115 V 500 VA

Description

TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):0,5 /2 UPRI(V):400-230+/-15 USEC(V):2X115 ISEC(A):2X2,17 F(HZ):50...60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:40 /B IP00 TYPE OF TERMINALS:SCREW/TAB CONNECTION INSTALLATION:SCREW EN 61558-2-1, -2-2, -2-4 UL/CSA-RECOGNIZED CONTROL CIRCUIT TRANSFORMER ISOLATION TRANSFORMER
