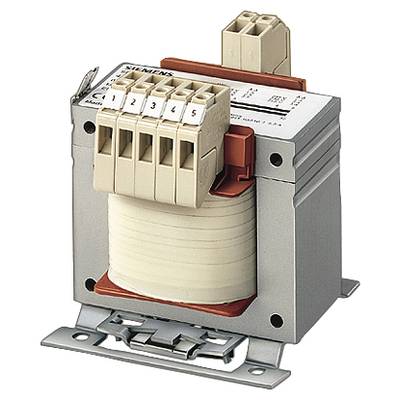

Siemens 4AM57424TV000EA0 Transformer 1 x 242 V, 230 V, 218 V 1 x 24 V 1000 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 441.18 / piece)
€
Highlights & Details
TRANSFORMER SITAS PHASES:1
- 1 x 242 V, 230 V, 218 V
- 1 x 24 V
- 1000 VA
Technical specifications
- Suitability: CE CRUus
- Product type
Transformer
- Output voltage
24 V
- No. of outputs
1 x
- No. of inputs
1 x
1000 VA
- Input voltage
242 V
230 V
218 V
- Connection
Screws
CEE 7/16 CEE plug
- Width
152 mm
- Height
144 mm
- Length
132 mm
- Dim
(L x W x H) 132 x 152 x 144 mm
- Output voltage (number x voltage)
1 x 24 V
- Design type
EI 150/90
- Input voltage (number x voltage)
1 x 242 V, 230 V, 218 V
- Frequency
50-60 Hz
- Content
1 pc(s)
- Mounting type
Screw fastening
- RoHS-compliant
Yes
- Protection class
IP00
- Type
4AM5742-4TV00-0EA0
- Max. ambient temperature
+40 °C
- Efficiency
0.93 %
152
144 mm
132 mm
FALSE
Other
IP00
FALSE
FALSE
FALSE
FALSE
FALSE
B
FALSE
2.5 %
1000 VA
Documents & Downloads
Datasheet
Datasheet 1754169 Siemens 4AM57424TV000EA0 Transformer 1 x 242 V, 230 V, 218 V 1 x 24 V 1000 VA
User & Safety Instructions
User & Safety Instructions 1754169 Siemens 4AM57424TV000EA0 Transformer 1 x 242 V, 230 V, 218 V 1 x 24 V 1000 VA
Description
TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):1 /5 UPRI(V):400+/-5% USEC(V):42 ISEC(A):23,8 F(HZ):50...60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:40 /B IP00 TYPE OF TERMINALS:SCREW/TAB CONNECTION INSTALLATION:SCREW EN 61558-2-2, -2-6 UL/CSA-RECOGNIZED CONTROL CIRCUIT TRANSFORMER SAFETY ISOLATING TRANSFORMER
