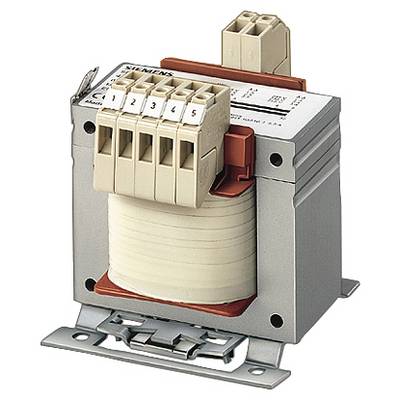

Siemens 4AM57425AT100FD0 Transformer 1 x 420 V, 400 V, 380 V 1 x 230 V 750 VA 3.26 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 617.65 / piece)
€ 617.65
plus VAT.
Highlights & Details
TRANSFORMER SITAS PHASES:1
- 1 x 420 V, 400 V, 380 V
- 1 x 230 V
- 3.26 A
- 750 VA
Technical specifications
- Suitability: CE CRUus
- Product type
Transformer
- Output voltage
230 V
- Output current
3.26 A
- No. of outputs
1 x
- No. of inputs
1 x
750 VA
- Input voltage
420 V
400 V
380 V
- Connection
Screws
CEE 7/16 CEE plug
- Width
244 mm
- Height
245 mm
- Length
230 mm
- Dim
(L x W x H) 230 x 244 x 245 mm
- Output voltage (number x voltage)
1 x 230 V
- Design type
EI 150/90
- Input voltage (number x voltage)
1 x 420 V, 400 V, 380 V
- Frequency
50-60 Hz
- Content
1 pc(s)
- Insulation class
T 40/B
- Mounting type
Screw fastening
- Test mark
cRUus. UL/CSA-RECOGNIZED
- RoHS-compliant
Yes
- Protection class
IP54
- Type
4AM5742-5AT10-0FD0
- Max. ambient temperature
+40 °C
- Efficiency
0.93 %
244
245 mm
230 mm
Other
IP54
FALSE
750 W
FALSE
FALSE
B
FALSE
2.5 %
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1754172 Siemens 4AM57425AT100FD0 Transformer 1 x 420 V, 400 V, 380 V 1 x 230 V 750 VA 3.26 A
User & Safety Instructions
User & Safety Instructions 1754172 Siemens 4AM57425AT100FD0 Transformer 1 x 420 V, 400 V, 380 V 1 x 230 V 750 VA 3.26 A
Description
TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):1 /5 UPRI(V):550-525-500-480-460- 440-415-400-380-230-208 USEC(V):2X115 ISEC(A):4,35-8,7 F(HZ):50...60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:40 /B IP00 TYPE OF TERMINALS:SCREW/TAB CONNECTION INSTALLATION:SCREW EN 61558-2-1, -2-2, -2-4 UL/CSA-RECOGNIZED CONTROL CIRCUIT TRANSFORMER ISOLATION TRANSFORMER
