Buy Siemens 4AM57425CT100FA1 Transformer 1 x 462 V, 440 V, 418 V 1 x 230 V 1000 VA 4.348 A

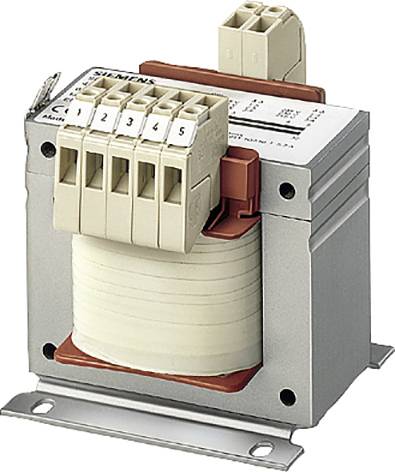

An electrical transformer with five numbered terminals on the top, mounted on a metal base.

Image similar

Our service for you

Datasheet (PDF)

Dispatches on Wed, 21 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 466.39 / piece)

€ 466.39

plus VAT.

Report legal concerns

Highlights & Details

TRANSFORMER SITAS PHASES:1

1 x 462 V, 440 V, 418 V
1 x 230 V
4.348 A
1000 VA

Technical specifications

Suitability: CE CRUus

Product type: Transformer

Output voltage: 230 V

Output current: 4.348 A

No. of outputs: 1 x

No. of inputs: 1 x

: 1000 VA

Input voltage: 462 V
440 V
418 V

Connection: Spring-loaded heavy duty connector

Width: 152 mm

Height: 144 mm

Length: 132 mm

Dim: (L x W x H) 132 x 152 x 144 mm

Output voltage (number x voltage): 1 x 230 V

Design type: EI 150/90

Input voltage (number x voltage): 1 x 462 V, 440 V, 418 V

Frequency: 50-60 Hz

Content: 1 pc(s)

Insulation class: Ta40/B

Mounting type: Screw fastening

Test mark: UL/CSA-RECOGNIZED

RoHS-compliant: Yes

Protection class: IP00

Type: 4AM5742-5CT10-0FA1

Max. ambient temperature: +40 °C

Min. ambient temperature: 40 °C

Efficiency: 0.93 %

: 152

: 144 mm

: 132 mm

: FALSE

: Other

: IP00

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: B

: FALSE

: 2.5 %

: 1000 VA

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Connection

Power

Output current

Input voltage

Product type

Output voltage

Siemens 4AM57425CT100FA1 Transformer 1 x 462 V, 440 V, 418 V 1 x 230 V 1000 VA 4.348 A

Item no:1754178

This article

Spring-loaded heavy duty connector

1000 VA

4.348 A

462 V440 V418 V

Transformer

230 V

Siemens 4AM57424TJ100FA0 Transformer 1 x 242 V, 230 V, 218 V 1 x 110 V 1000 VA 9.09 A

Item no:1704460

ScrewsCEE 7/16 CEE plug

1000 VA

9.09 A

242 V230 V218 V

Transformer

110 V

Siemens 4AM57425AT100FA1 Transformer 1 x 420 V, 400 V, 380 V 1 x 230 V 1000 VA 4.35 A

Item no:1704461

Spring-loaded heavy duty connector

1000 VA

4.35 A

420 V400 V380 V

Transformer

230 V

Siemens 4AM57425AN000EA0 Autotransformer 1 x 420 V, 400 V, 380 V 1 x 24 V 1000 VA 41.67 A

Item no:1749798

ScrewsCEE 7/16 CEE plug

1000 VA

41.67 A

420 V400 V380 V

Autotransformer

24 V

Siemens 4AM57424TN000EA0 Autotransformer 1 x 242 V, 230 V, 218 V 1 x 24 V 1000 VA 41.67 A

Item no:1750327

ScrewsCEE 7/16 CEE plug

1000 VA

41.67 A

242 V230 V218 V

Autotransformer

24 V

Siemens 4AM57425FJ100FA0 Autotransformer 1 x 525 V, 500 V, 475 V 1 x 110 V 1000 VA 9.09 A

Item no:1751226

ScrewsCEE 7/16 CEE plug

1000 VA

9.09 A

525 V500 V475 V

Autotransformer

110 V

Siemens 4AM57424TJ100FC0 Transformer 1 x 242 V, 230 V, 218 V 1 x 110 V 850 VA 7.73 A

Item no:1754167

ScrewsCEE 7/16 CEE plug

850 VA

7.73 A

242 V230 V218 V

Transformer

110 V

Siemens 4AM57424TT100FA0 Transformer 1 x 242 V, 230 V, 218 V 1 x 230 V 1000 VA 4.35 A

Item no:1754168

ScrewsCEE 7/16 CEE plug

1000 VA

4.35 A

242 V230 V218 V

Transformer

230 V

Siemens 4AM57424TV000EA0 Transformer 1 x 242 V, 230 V, 218 V 1 x 24 V 1000 VA 23.8 A

Item no:1754169

ScrewsCEE 7/16 CEE plug

1000 VA

23.8 A

242 V230 V218 V

Transformer

24 V

Siemens 4AM57425AJ100FA0 Transformer 1 x 420 V, 400 V, 380 V 1 x 110 V 1000 VA 9.09 A

Item no:1754170

ScrewsCEE 7/16 CEE plug

1000 VA

9.09 A

420 V400 V380 V

Transformer

110 V

Documents & Downloads

Datasheet

Datasheet 1754178 Siemens 4AM57425CT100FA1 Transformer 1 x 462 V, 440 V, 418 V 1 x 230 V 1000 VA 4.348 A

User & Safety Instructions

User & Safety Instructions 1754178 Siemens 4AM57425CT100FA1 Transformer 1 x 462 V, 440 V, 418 V 1 x 230 V 1000 VA 4.348 A

Description

TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):1 /5 UPRI(V):440+/-5% USEC(V):230 ISEC(A):4,348 F(HZ):50...60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:40 /B IP00 TYPE OF TERMINALS:CAGE-CLAMP INSTALLATION:SCREW EN 61558-2-1, -2-2, -2-4 UL/CSA-RECOGNIZED CONTROL CIRCUIT TRANSFORMER ISOLATION TRANSFORMER
