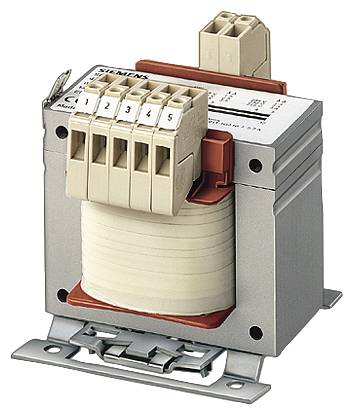

Image similar

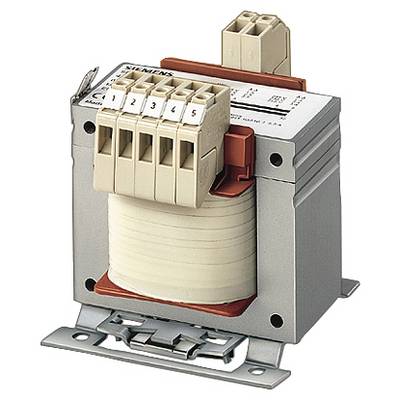

Image similar
Siemens 4AM57425MT100FA0 Transformer 1 x 725 V, 690 V, 655 V 1 x 230 V 1000 VA 4.348 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 441.18 / piece)
€ 441.18
plus VAT.
Highlights & Details
TRANSFORMER SITAS PHASES:1
- 1 x 725 V, 690 V, 655 V
- 1 x 230 V
- 4.348 A
- 1000 VA
Technical specifications
- Proof of Suitability: CE
- Product type
Transformer
- Output voltage
230 V
- Output current
4.348 A
- No. of outputs
1 x
- No. of inputs
1 x
1000 VA
- Input voltage
725 V
690 V
655 V
- Connection
Screws
CEE 7/16 CEE plug
- Width
152 mm
- Height
144 mm
- Length
132 mm
- Dim
(L x W x H) 132 x 152 x 144 mm
- Output voltage (number x voltage)
1 x 230 V
- Design type
EI 150/90
- Input voltage (number x voltage)
1 x 725 V, 690 V, 655 V
- Frequency
50-60 Hz
- Content
1 pc(s)
- Mounting type
Screw fastening
- Test mark
CE
- RoHS-compliant
Yes
- Protection class
IP00
- Type
4AM5742-5MT10-0FA0
- Max. ambient temperature
+40 °C
- Min. ambient temperature
40 °C
- Efficiency
0.93 %
152
144 mm
132 mm
FALSE
Other
IP00
FALSE
FALSE
FALSE
1000 W
FALSE
FALSE
B
FALSE
2.87 %
1000 VA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1754183 Siemens 4AM57425MT100FA0 Transformer 1 x 725 V, 690 V, 655 V 1 x 230 V 1000 VA 4.348 A
User & Safety Instructions
User & Safety Instructions 1754183 Siemens 4AM57425MT100FA0 Transformer 1 x 725 V, 690 V, 655 V 1 x 230 V 1000 VA 4.348 A
Description
TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):1 /5 UPRI(V):400-230+/-15 USEC(V):42 ISEC(A):23,8 F(HZ):50...60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:40 /B IP00 TYPE OF TERMINALS:SCREW/TAB CONNECTION INSTALLATION:SCREW EN 61558-2-1, -2-2, -2-6 UL/CSA-RECOGNIZED CONTROL CIRCUIT TRANSFORMER SAFETY ISOLATING TRANSFORMER
