Buy Siemens 4AM61428JD400FA0 Autotransformer 1 x 415 V, 400 V, 385 V, 245 V, 230 V, 215 V 1 x 230 V, 115 V 1600 VA

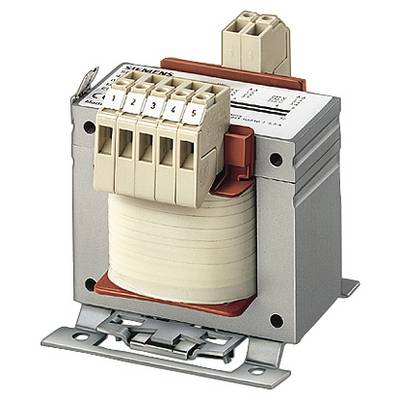

Electrical transformer with five upper terminals and a robust metal mounting bracket. Used for voltage conversion in electrical systems.

Image similar

Datasheet (PDF)

Dispatches on Thu, 17 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 684.87 / piece)

€ 684.87

plus VAT.

Report legal concerns

Highlights & Details

ACCESSORY VL160X-VL400 24 V AC/DC

1 x 415 V, 400 V, 385 V, 245 V, 230 V, 215 V
1 x 230 V, 115 V
1600 VA

Technical specifications

Suitability: CE CRUus

Product type: Autotransformer

Output voltage: 230 V
115 V

No. of outputs: 1 x

No. of inputs: 1 x

: 1600 VA

Input voltage: 415 V
400 V
385 V
245 V
230 V
215 V

Connection: Screws
CEE 7/16 CEE plug

Width: 176 mm

Height: 164 mm

Length: 138 mm

Dim: (L x W x H) 138 x 176 x 164 mm

Output voltage (number x voltage): 1 x 230 V, 115 V

Design type: EI 174/82

Input voltage (number x voltage): 1 x 415 V, 400 V, 385 V, 245 V, 230 V, 215 V

Frequency: 50-60 Hz

Content: 1 pc(s)

Insulation class: Ta40/B

Mounting type: Screw fastening

Test mark: UL/CSA-RECOGNIZED

RoHS-compliant: Yes

Protection class: IP00

Type: 4AM6142-8JD40-0FA0

Max. ambient temperature: +40 °C

Min. ambient temperature: 40 °C

Efficiency: 0.96 %

: 176

: 164 mm

: 138 mm

: FALSE

: Other

: IP00

: FALSE

: FALSE

: FALSE

: 1600 W

: FALSE

: FALSE

: B

: FALSE

: 2.1 %

: 1600 VA

UKCA: yes
