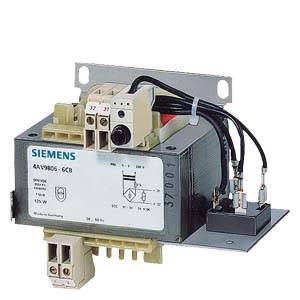

Siemens 4AV98071CB002N Rail mounted PSU (DIN) 24 V DC 3.33 A 0.08 kW No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Nominal input voltage
400 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
360 V AC
- Output voltage
24 V DC
- Input voltage (max.)
424 V AC
- Max. output current
3.33 A
- Output current (max.) - rounded
3.33 A
0.08 kW
- Output type (power supply units)
Fixed voltage
- Phases
1
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Connection
Screws
CEE 7/16 CEE plug
- Dim
(L x W x H) 93 x 127 x 95 mm
- Operating temperature (max.)
50 °C
- Manufacturer part #
4AV98071CB002N
- Content
1 pc(s)
- Width
127 mm
- Height
95 mm
- Length
93 mm
IP00
- Type
4AV9807-1CB00-2N
- Efficiency
48.3 %
127.0 m
95.0 mm
93.0 mm
127 mm
AC
Other
FALSE
FALSE
IP00
24-24 V
FALSE
3.33 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1702971 Siemens 4AV98071CB002N Rail mounted PSU (DIN) 24 V DC 3.33 A 0.08 kW No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1702971 Siemens 4AV98071CB002N Rail mounted PSU (DIN) 24 V DC 3.33 A 0.08 kW No. of outputs:1 x Content 1 pc(s)
Description
Fixed-mounted circuit breaker 4-pole, Size 1 In=1000 A up to 690 V, 50/60 Hz AC Icu=65 kA at 500 V with ready to close signaling switch with mechanical lockout device with tripped signaling switch with tripped indicators Connection top horizontal bottom horizontal Single hole Overcurrent release AZN (N) G Variant G Setting range 400...1000 A Motorized/manual operating mechanism with memory with electrical and mechanical activation Motor and electr. calling for 110...127 V AC, 110...125 V DC With 1st auxiliary release Undervoltage release "R", F3 220...240 V AC, 220...250 V DC instantaneous With 2nd auxiliary release Shunt release "F", F2 110...127 V AC, 110...125 V DC Switch position-depending 1st + 2nd auxiliary current switch block 2 NO + 2 NC - 2 CO
