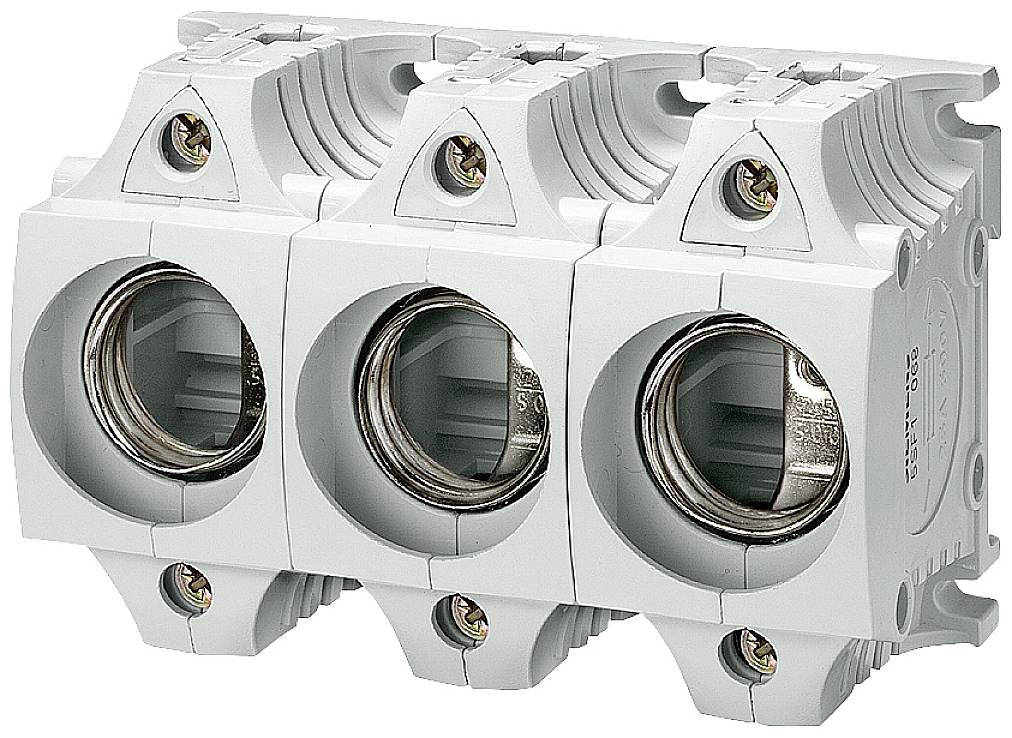

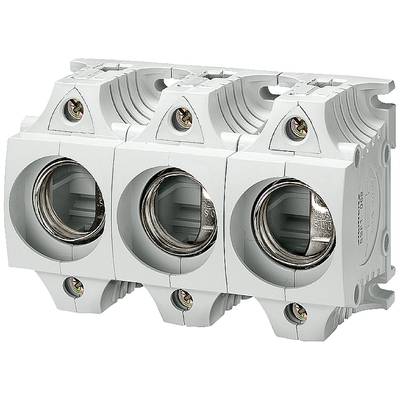

Siemens 5SF5068 DIAZED fuse holder 3-phase Suitable for Fuse size 000 - 4 Fuse size = DII 25 A 500 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
DIAZED fuse holder
Fuse size
DII
Number of pins
3
Nominal voltage
500 V AC
Nominal current - rounded value
25 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.84
3
4% = € 0.86
€ 20.98
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.84 / piece)
€ 21.84
plus VAT.
Technical specifications
- Net weight: 454 g
- Product type
DIAZED fuse holder
- Fuse size
DII
- Number of pins
3
- Nominal voltage
500 V AC
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Dim
(W x H x D) 80 x 120 x 55 mm
- Model
3-phase
- Type
DIAZED base
- Size
DII
- Content
1 pc(s)
- Suitable for
Fuse size 000 - 4
- Width
80 mm
- Height
120 mm
- Depth
55 mm
- RoHS-compliant
Yes
DIN rail
Fitted screw
25 A
500 V
3
Plastic
DII
TRUE
Documents & Downloads
Datasheet
Datasheet 1752358 Siemens 5SF5068 DIAZED fuse holder 3-phase Suitable for Fuse size 000 - 4 Fuse size = DII 25 A 500 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1752358 Siemens 5SF5068 DIAZED fuse holder 3-phase Suitable for Fuse size 000 - 4 Fuse size = DII 25 A 500 V AC 1 pc(s)
Description
standard cabinet 8MF2 HxWxD=2200x 1200x 400 Installation: Side-by-side ventilated, mounted, welded IP30 The SIVACON 8MF1 system cabinet – as versatile as your requirements. The modular SIVACON 8MF1 system allows custom solutions for almost all sectors of industry and applications. Fully assembled, adapted to your specifications or developed individually, the modular cabinets support individual creation of added value in control cabinet construction. The basis for the SIVACON 8MF1 modular system is the frame, which is available in 90 different sizes and can be combined with more than 2000 elements. Complete cabinets are available in three designs for standard applications: closed, ventilated and with inspection window. The SIVACON 8MF1 modular cabinets are tested in line with IEC 61439 and other standards for resistance to corrosion, heat resistance, resistance to abnormal heat and fire, lifting, impact testing, casing/sheathing degree of protection, protective conductor connection, proof of power loss transfer. With the SIMARIS therm software, you can easily and precisely dimension the heat dissipation of your control cabinets by entering the ambient air temperature and selecting the relevant devices in the cabinet. Key features of the Siemens SIVACON 8MF1 system cubicles: 1. The SIVACON 8MF1 system cubicles are screw-mounted and offer great stability. 2. Electrolytically zinc-plated and powder-coated enclosures ensure greater resistance to environmental influences such as humidity. 3. Earthquake-resistant and electromagnetically compatible empty control cabinet enclosures are also available. 4. The SIVACON 8MF system cubicles are available in a wide range of special and functional colors and multi-colored as required, with only a minimal increase in delivery time. www.siemens.de/sivacon-8MF. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
