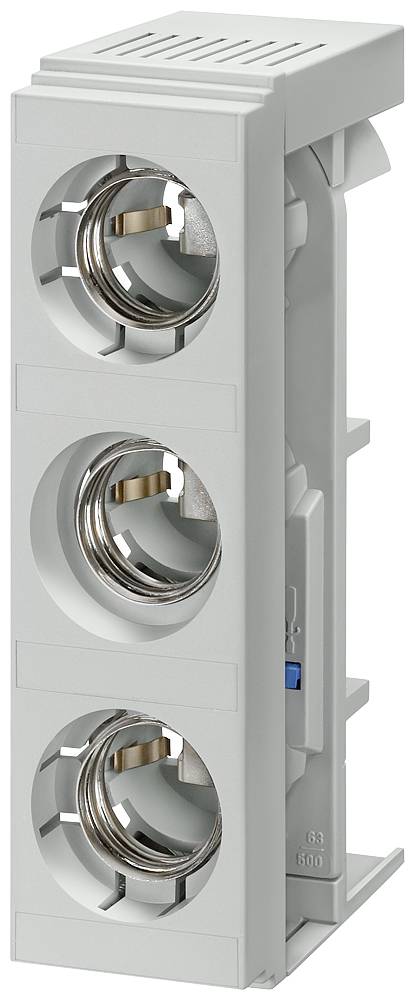

Siemens 5SF6020 DIAZED fuse holder Fuse size = DII 25 A 500 V AC 4 pc(s)
EAN:
Part number:
Item no:
Product type
DIAZED fuse holder
Fuse size
DII
Number of pins
3
Nominal voltage
500 V AC
Nominal current - rounded value
25 A
Datasheet (PDF)
Technical specifications
- Net weight: 295 g
- Product type
DIAZED fuse holder
- Fuse size
DII
- Number of pins
3
- Nominal voltage
500 V AC
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Dim
(W x H x D) 70 x 200 x 43.5 mm
- Type
DII-mounting bases
- Size
DII
- Content
4 pc(s)
- Width
70 mm
- Height
200 mm
- Depth
43.5 mm
- RoHS-compliant
Yes
DIN rail
Fitted screw
25 A
500 V
3
Other
DII
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1796264 Siemens 5SF6020 DIAZED fuse holder Fuse size = DII 25 A 500 V AC 4 pc(s)
User & Safety Instructions
User & Safety Instructions 1796264 Siemens 5SF6020 DIAZED fuse holder Fuse size = DII 25 A 500 V AC 4 pc(s)
Description
DIAZED-mounting base SR60 3P, DII, 25A, 500V for 5/10 mm busbars Passscrew design Fuse systems NEOZED and DIAZED with extensive accessories. The NEOZED and DIAZED fuse system from Siemens as an important component of the SENTRON protective components for electrical installation offers effective personal, device and plant protection by safely switching off in the event of an overload or short-circuit. It is mainly used in distribution technology and in industrial switchgear. The system can be operated by amateur and is also approved for domestic installation. The Siemens NEOZED and DIAZED fuse systems are characterized above all by: 1. Matched portfolio and accessories. 2. Fuse links from 2 A to 100 A in different operating classes. 3. Base versions in classic screw-socket technology. 4. Proven quality since 1906.
