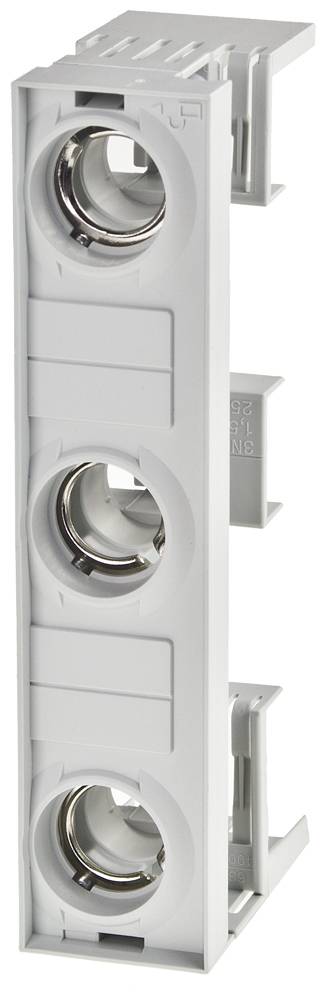

Siemens 5SG6208 NEOZED fuse holder Fuse size = D02 3-pin 63 A 400 V
EAN:
Part number:
Item no:
Product type
NEOZED fuse holder
Fuse size
D02
Nominal current - rounded value
63 A
Number of pins
3
Nominal voltage
400 V
Datasheet (PDF)
Number (Package size 6 pc(s))
Total (€ 12.04 / piece)
€ 72.26
plus VAT.
14-day return policy included
Technical specifications
- Power loss: 3 W
- Mounting type: Rail System
- Net weight: 160 g
- Material: plastic
- Product type
NEOZED fuse holder
- Fuse size
D02
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Number of pins
3
- Nominal voltage
400 V

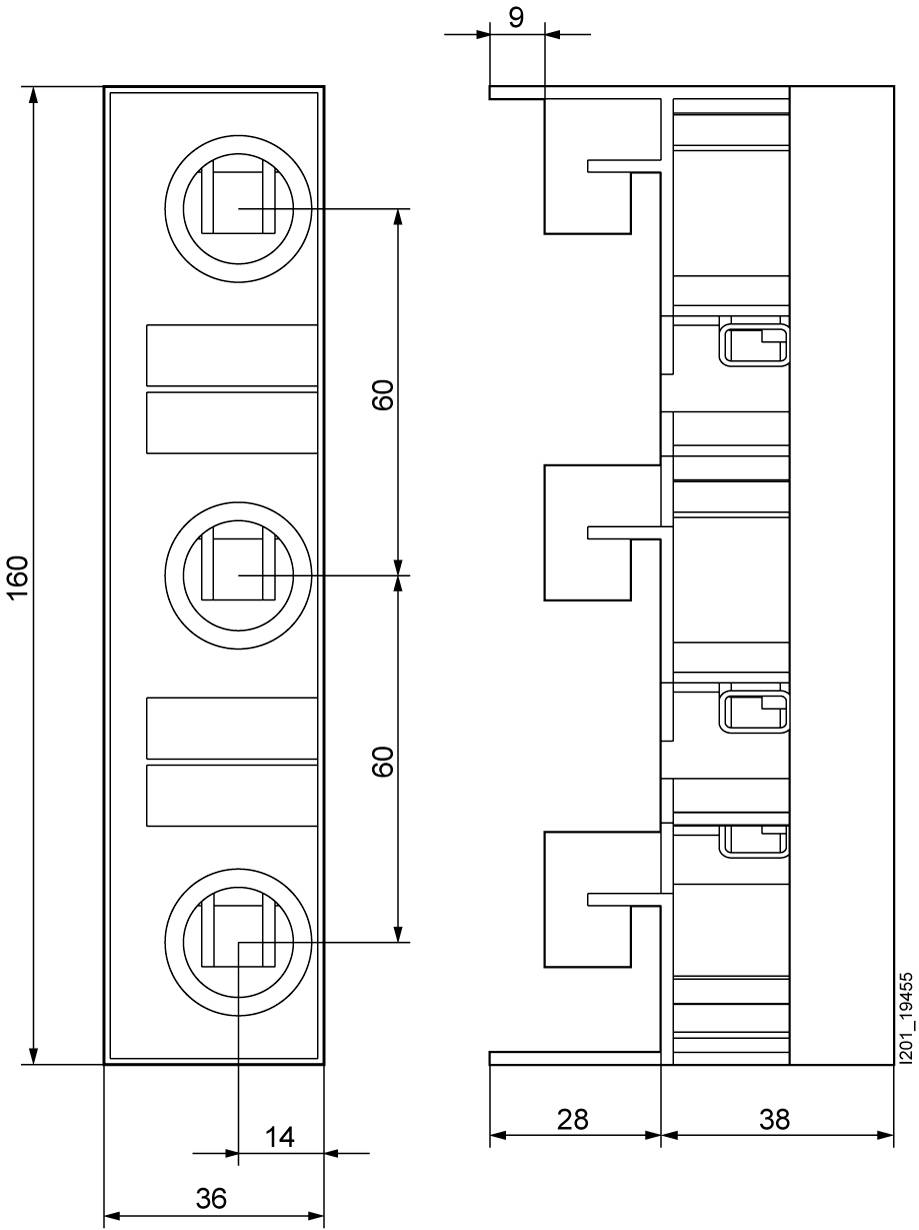

- Dim
(W x H x D) 36 x 160 x 66 mm
- Type
For 8US busbar system 60 mm
- Size
D02
- Factory colour
White
- Content
6 pc(s)
- Width
36 mm
- Height
160 mm
- Depth
66 mm
- RoHS-compliant
Yes
Busbar system
63 A
400 V
3
Plastic
D02
TRUE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1753738 Siemens 5SG6208 NEOZED fuse holder Fuse size = D02 3-pin 63 A 400 V
User & Safety Instructions
User & Safety Instructions 1753738 Siemens 5SG6208 NEOZED fuse holder Fuse size = D02 3-pin 63 A 400 V
