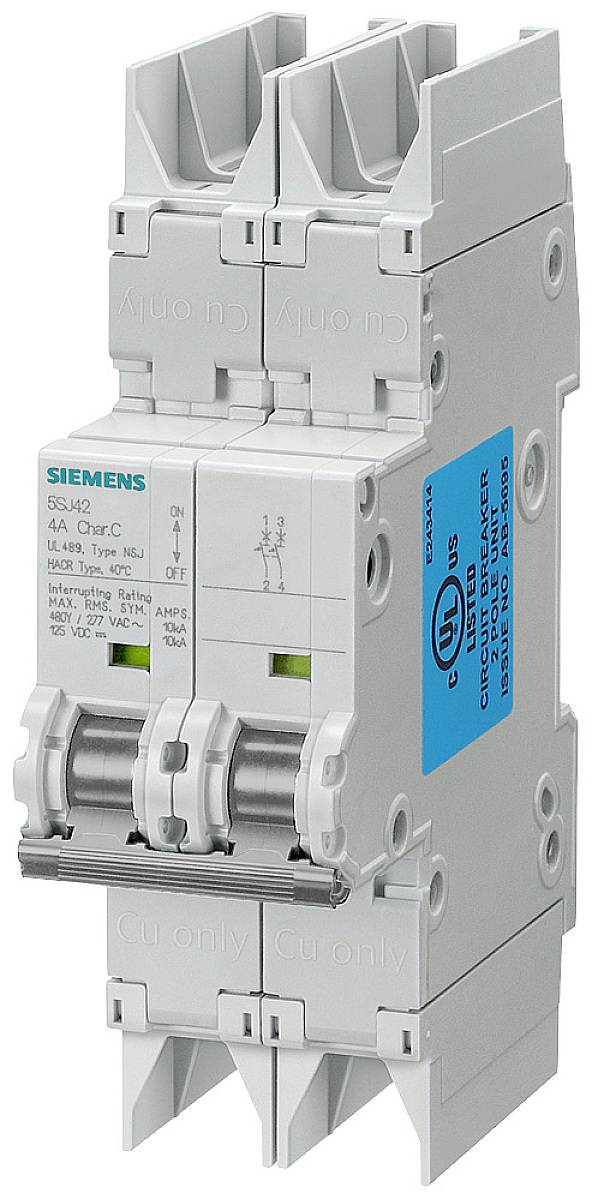

Siemens 5SJ42018HG42 5SJ4201-8HG42 Circuit breaker 1 A 400 V
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
2
Release characteristics
D
Nominal current - rounded value
1 A
RoHS-compliant
Yes
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 163.86 / piece)
€
Technical specifications
- IP20, with the connected conductors, IP40 in the grip area
- Product type
Circuit breaker
- Number of pins
2
- Release characteristics
D
- RoHS-compliant
Yes
- Nominal current - rounded value
1 A
- Nominal current
1 A
- Factory colour
Grey

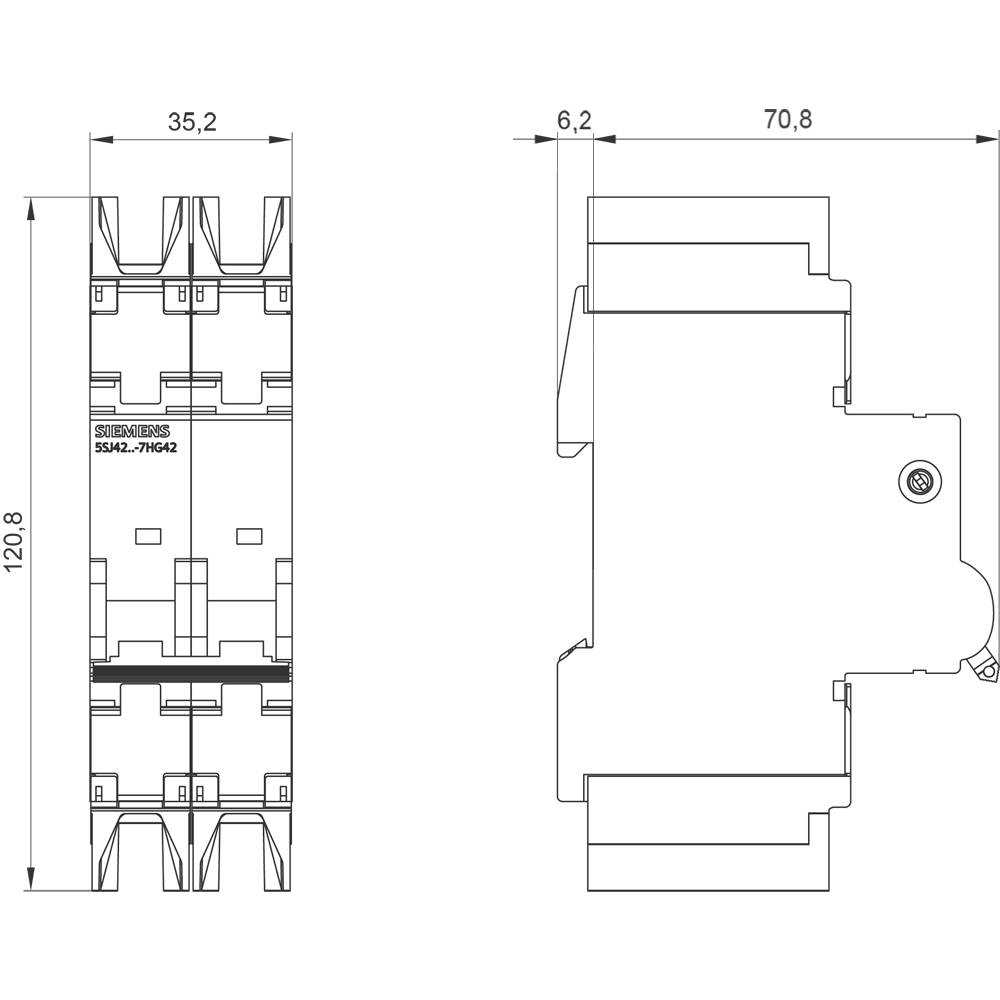

- Dim
(W x H x D) 36 x 121 x 76 mm
- Content
1 pc(s)
- Switch-off capacity
10 kA
- Nominal voltage
400 V
- Compatible with (details)
SENTRON
- Width
36 mm
- Height
121 mm
- Depth
76 mm
AC/DC
70 mm
1 A
400 V
50-60 MHz
D
440 V
3
3
2
FALSE
IP20
2
FALSE
-25-55 °C
FALSE
TRUE
2
10 kA
10 kA
15 kA
15 kA
Documents & Downloads
Datasheet
Datasheet 1751446 Siemens 5SJ42018HG42 5SJ4201-8HG42 Circuit breaker 1 A 400 V
User & Safety Instructions
User & Safety Instructions 1751446 Siemens 5SJ42018HG42 5SJ4201-8HG42 Circuit breaker 1 A 400 V
Description
SITOP UPS500P Maintenance free Uninterruptible Power supply With USB interface Basic device 10 kWs input: 24 V DC output: 24 V DC/7 A Degree of protection IP65 The SITOP UPS500P with 100% maintenance-free capacitors is the optimal addition to all 24 V power supplies. It provides buffering for brief power failures over minutes. The time is generally sufficient, for example, to safely shut down PC-based automation systems or to visualize and archive operating data when extended power failures occur. The USB interface and a free software tool enable easy communication with the PC. The capacitors themselves have a very long service life even at very high temperatures and can be used in ambient temperatures up to 60 °C. No maintenance or replacement of the energy storage unit is necessary, which means that the DC UPS pays for itself after just a short time. Short charging times quickly restore the buffer readiness after a power failure. The SITOP UPS500P in IP65 in its elongated metal enclosure is optimally suited for distributed deployment.
