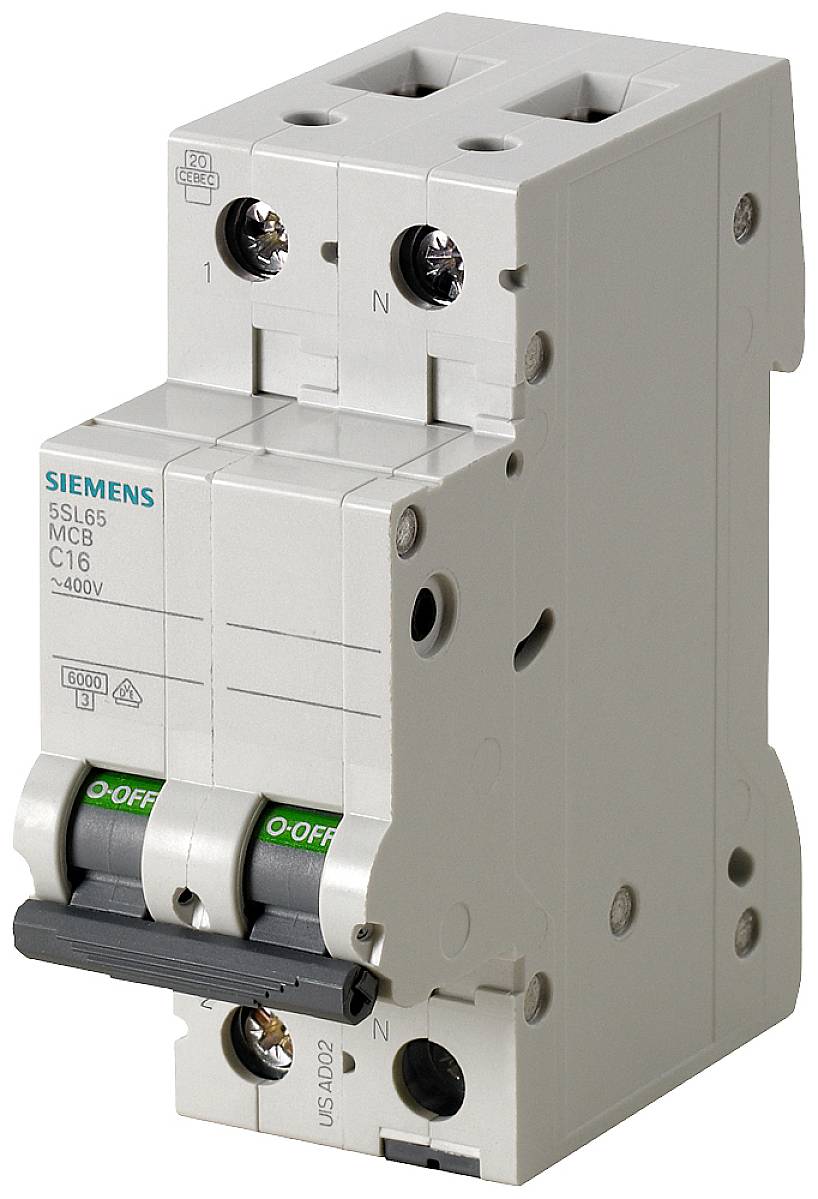

Image similar
1/2
Image similar
Siemens 5SL65066 5SL6506-6 Circuit breaker 6 A
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
2
Release characteristics
B
Nominal current - rounded value
6 A
Type
Line safety switch 5SL
Datasheet (PDF)
Technical specifications
- Number of width-division units: 2Number of test cycles / for environmental testing: 6Tightening torque / with screw connection / minimum: 2.5 NmTightening torque / for screw connection / maximum: 3 NmDesign of the basic type: 5SL6Mounting type: Top hat railSuitability for use: Residential construction / infrastructureAll mounting positions permittedMounting depth: 70 mmInsulation voltage / at single-phase operation / at AC: 250 VMechanical life (cycles) / typical: 10000Number of pins / note: 1P+NPosition / of the power cable: RandomProduct features / protection against contact: YesProduct property / halogen-free: YesProduct property / lead-sealable: YesProduct property / silicone-free: YesProduct extension / installable / additional equipment: YesProduct function / switching neutral conductor: YesSwitching capacity (ICU+) 6 kASwitching capacity Current / according to EN 60898: 6 kASwitching capacity Current / according to IEC 60947-2: 6 kAProtection class IP:IP20, with connected conductorsAmbient temperature / during operation / minimum: -25 °C.Ambient temperature / during operation / maximum: +45 °C.Power loss / at rated current / at AC / at warm operating state / per pole: 0.9 W.Power loss/maximum 1.8 W.Pollution level: 2Supply voltage frequency 50 HzOver voltage category IIIOperating voltage / minimum: 24 VCross-section/single-wire: 0.75 mm² - 25 mm²Cross-section/fine wire/wire-end processing: 0.75 mm² - 25 mm²Cross-section/multi-wire connection: 0.75 mm² - 25 mm²
- Type
Line safety switch 5SL
- Nominal voltage (details)
230 V AC
- Product type
Circuit breaker
- Number of pins
2
- Operating class
3
- Release characteristics
B
- RoHS-compliant
Yes
- Nominal current - rounded value
6 A
- Nominal current
6 A

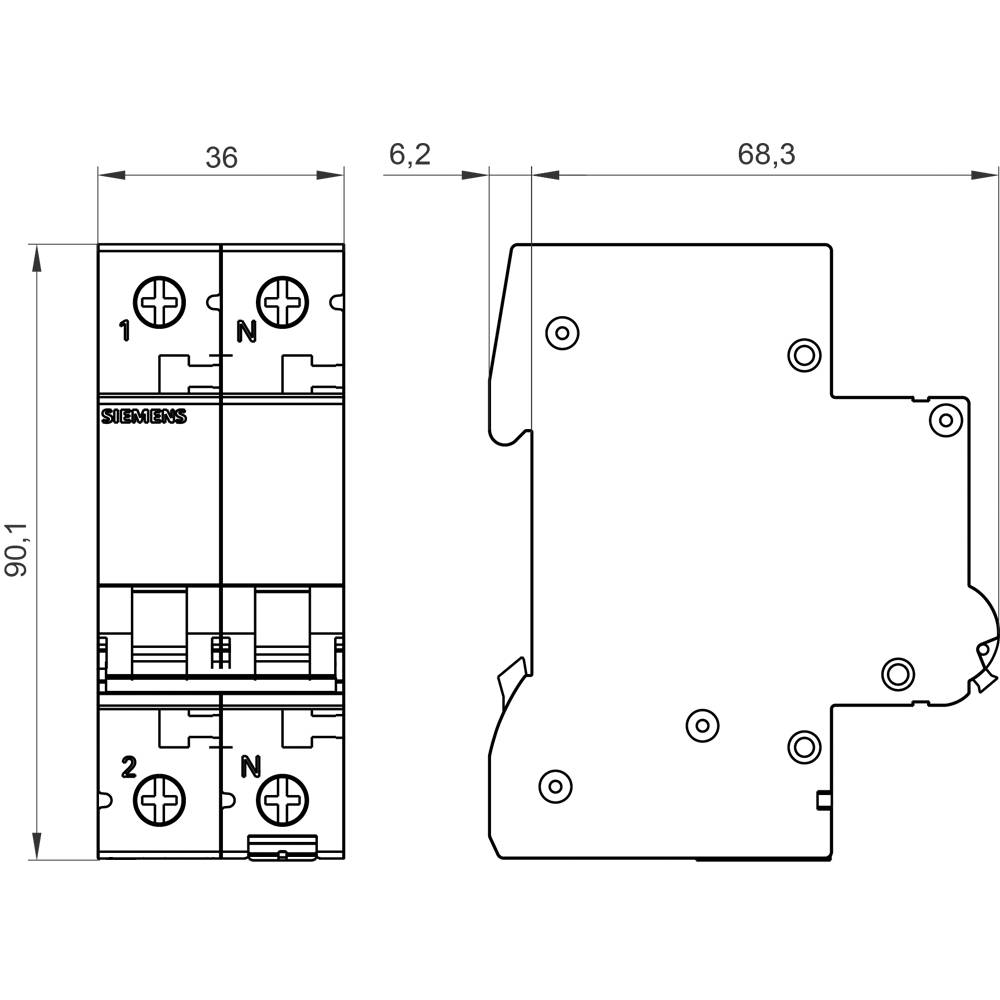

- Dim
(W x H x D) 36 x 90 x 76 mm
- Content
1 pc(s)
- Operating voltage
250 V AC
- Width
36 mm
- Height
90 mm
- Depth
76 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2757680 Siemens 5SL65066 5SL6506-6 Circuit breaker 6 A
User & Safety Instructions
User & Safety Instructions 2757680 Siemens 5SL65066 5SL6506-6 Circuit breaker 6 A
Description
Circuit breaker 230V 6kA, 1+N-pole, B, 6A circuit breaker SENTRON 5SL for the safe short circuit and overload protection for standard applications in home and intended purpose construction.Installation and dismantling of the device without any tools Easy wiring of the feed through the rear busbar.The 5SL circuit breakers are available in 1-, 2-, 3-, 4- as well as in 1+N- and 3+N-pole versions as well as in other special types.A wide range of accessories, for example Auxiliary switch makes possible the versatile expansion of the functions.Easily safe with the protective devices from SENTRON.
