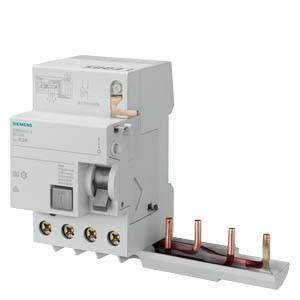

Siemens 5SM23456 5SM2345-6 RCCB A 63 A 0.03 A 400 V
EAN:
Part number:
Item no:
Nominal current - rounded value
63 A
Differential current rating
0.03 A
Number of pins
4
Release characteristics
A
Product type
RCCB
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number
Total (€ 147.05 / piece)
€
Technical specifications
- Mechanical life (Cycles): 10000
- IP20, for distributor installation, with the connected conductors
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Content
1 pc(s)

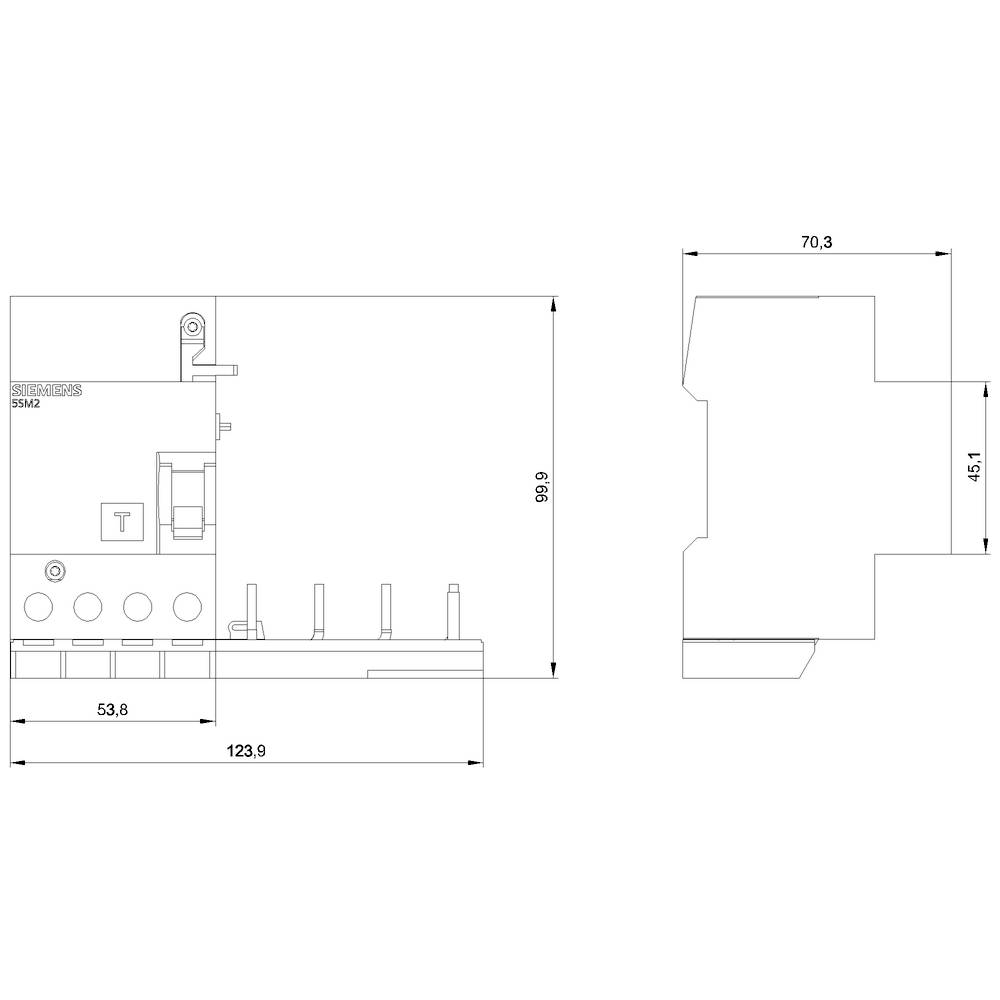

- Dim
(W x H x D) 124 x 90 x 70 mm
- Depth
70 mm
- Height
90 mm
- Width
124 mm
- Differential current rating
0.03 A
- Nominal voltage
400 V
- Number of pins
4
- Release characteristics
A
- RoHS-compliant
Yes
63 A
460 V
4
A
1 kA
1
2
400-400 V
50 Hz
IP20
1.5-25 mm²
1.5-25 mm²
FALSE
-25-45 °C
- Product type
RCCB
Documents & Downloads
Datasheet
Datasheet 1726143 Siemens 5SM23456 5SM2345-6 RCCB A 63 A 0.03 A 400 V
Datasheet 1726143 Siemens 5SM23456 5SM2345-6 RCCB A 63 A 0.03 A 400 V
User & Safety Instructions
User & Safety Instructions 1726143 Siemens 5SM23456 5SM2345-6 RCCB A 63 A 0.03 A 400 V
Description
TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):0,8 /3,4 UPRI(V):660+/-5% USEC(V):230 ISEC(A):3,478 F(HZ):50...60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:40 /B IP00 TYPE OF TERMINALS:SCREW/TAB CONNECTION INSTALLATION:SCREW EN 61558-2-1, -2-2, -2-4 CONTROL CIRCUIT TRANSFORMER ISOLATION TRANSFORMER
