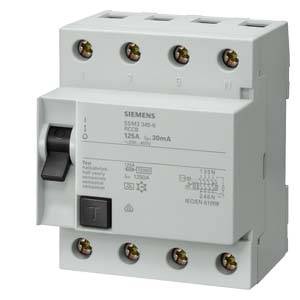

Siemens 5SM3445-6 RCCB A 125 A 0.1 A 400 V
Item no:
Product type
RCCB
Number of pins
4
Release characteristics
A
Differential current rating
0.1 A
Nominal current - rounded value
125 A
Datasheet (PDF)
Technical specifications
- Mechanical life (Cycles): 10000
- IP20, for distributor installation, with the connected conductors
- Product type
RCCB
- Number of pins
4
- Release characteristics
A
- Differential current rating
0.1 A
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Dim
(W x H x D) 72 x 90 x 70 mm
- Switch-off capacity
1.25 kA
- Content
1 pc(s)
- Nominal voltage
400 V
- Width
72 mm
- Height
90 mm
- Depth
70 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1726210 Siemens 5SM3445-6 RCCB A 125 A 0.1 A 400 V
Description
TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):7,1 /28,5 UPRI(V):400+/-5% USEC(V):230 ISEC(A):30,9 F(HZ):50...60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:55 /H IP23 TYPE OF TERMINALS:SCREW CONNECTION INSTALLATION:SCREW EN 61558-2-1, -2-2, -2-4 UL/CSA-RECOGNIZED CONTROL CIRCUIT TRANSFORMER ISOLATION TRANSFORMER
