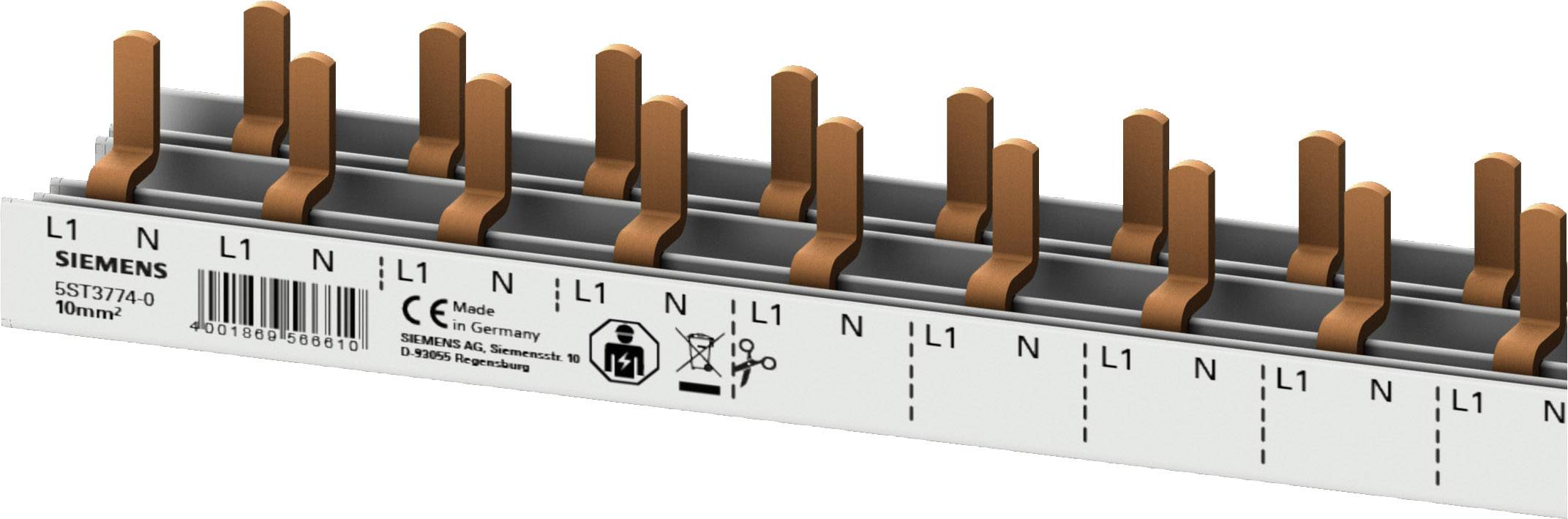

Siemens 5ST37740 Compact pin bus, 10mm2 connection 1p/N compact device 1 TE contact-safe Busbar No. of rows 2 Multicolou
EAN:
Part number:
Item no:
Product type
Busbar
Length
1060 mm
Width
40.8 mm
Type
10 mm², 1p+N, 60TE, 12x compact, can be cut
Factory colour
Multicolour
Datasheet (PDF)
Number
Total (€ 53.77 / piece)
€ 53.77
plus VAT.
14-day return policy included
Technical specifications
- Product type
Busbar
- Type
10 mm², 1p+N, 60TE, 12x compact, can be cut
- Factory colour
Multicolour
- Length
1060 mm
- Width
40.8 mm
- Height
13 mm
- Dim
(L x W x H) 1060 x 40.8 x 13 mm
- Content
1 pc(s)
- Type
5ST3774-0
- RoHS-compliant
Yes
- Conductor type
L
N
- Nominal current
63 A
- Nominal voltage
230 V
- Cross section
10 mm²
- No. of partitions
12
- Number of pins
60
- No. of rows
2
TRUE
2
10 mm²
1
1060 m
60
Pin
60
FALSE
TRUE
60
230 V
18
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2248438 Siemens 5ST37740 Compact pin bus, 10mm2 connection 1p/N compact device 1 TE contact-safe Busbar No. of rows 2 Multicolou
User & Safety Instructions
User & Safety Instructions 2248438 Siemens 5ST37740 Compact pin bus, 10mm2 connection 1p/N compact device 1 TE contact-safe Busbar No. of rows 2 Multicolou
Description
Compact 10 mm2 connection 1p/N compact device 1 TE contact-safe 1m cut additional components for fault-current protective devices and circuit breakers from Siemens. The additional components from Siemens are an important part of SENTRON protection devices for electrical installation. As accessories for FI and circuit breaker, they offer many possibilities for realizing Diverser functions. Whether for infrastructure or industrial applications, Siemens offers the right accessories for all FI- and circuit-breakers. You have a suitable device for every requirement. The Siemens accessories for fault current and circuit breaker are distinguished above all by: 1. Universal mountable of all additional components. 2. Easy to install and connect. 3. Reliable protection during installation thanks to standard touch protection. 4. Optimal technology for your safety - only from Siemens.
