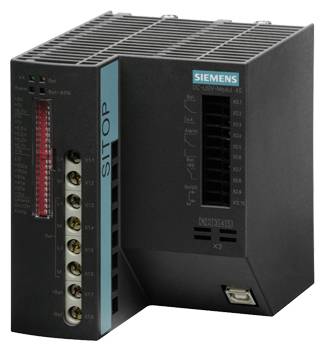

Image similar
Siemens 6AG1931-2FC21-7AA0 6AG19312FC217AA0 UPS system
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type of energy storage: With batteries
- Installation height above sea level / maximum: 6000 m.
- Display type: LED
- DIN rail mounting: Yes
- Equipment protection class: Class III.
- Installation width 102 mm
- Mounting height 225 mm
- Protection class: IP20
- Peak current: 42 A;
- Ambient temperature during operation / with horizontal installation position: -25 °C - +70 °C.
- DC-UPS modular expandable: Yes
- Reverse polarity protection against reverse polarity input voltage: Yes
- Reverse polarity protection against polarity reversal of the energy storage: Yes
- Maximum adjustable charging current / Note: Factory setting approx. 2 A.
- Product type
UPS system
- Nominal power
960 W
- No. of outputs
1 x
- Input voltage (max.)
29 V DC
- Min. input voltage
22 V DC
- Output voltage (max.)
24 V DC
- Dim
(W x H x D) 102 x 125 x 125 mm
- Output current (details)
40 A
- Input current
40 A
- Weight
1.1 kg
- Width
102 mm
- Height
125 mm
- Depth
125 mm
- Interfaces
none
- Type
6AG1931-2FC21-7AA0
102
125 mm
125 mm
1.1 kg/m
DC
FALSE
FALSE
Offline
960 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2263774 Siemens 6AG1931-2FC21-7AA0 6AG19312FC217AA0 UPS system
User & Safety Instructions
User & Safety Instructions 2263774 Siemens 6AG1931-2FC21-7AA0 6AG19312FC217AA0 UPS system
Description
SIPLUS PS DC-UPS module 24V/40A -25...+70°C with Conformal Coating based on 6EP1931-2FC21 . Uninterruptible power supply without interface Input: DC 24V/43A Output: DC 24V/40A the SIPLUS extreme variant also protects the automation components against harsh environmental conditions, such as particularly high and low temperatures, harmful gases, condensation, frost and biologically, chemically and mechanically active substances, as they can occur in control cabinets or container solutions close to production. This ensures that your automation tasks are reliably protected and offer additional investment security.
