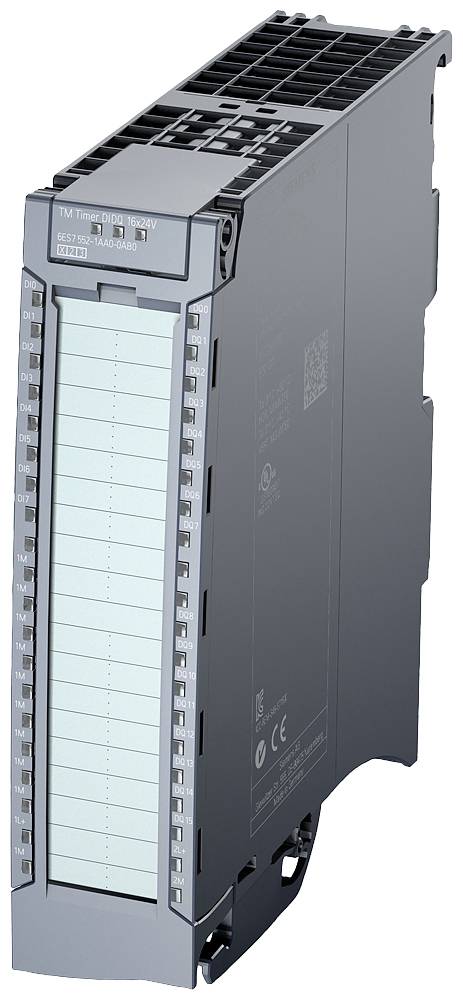

Siemens 6AG25521AA004AB0 6AG2552-1AA00-4AB0 PLC interface 24 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
PLC interface
- Type
6AG2552-1AA00-4AB0
- Manufacturer part #
6AG25521AA004AB0
- No. of digital inputs (max.)
8
- No. of inputs (max.)
8
- No. of outputs (max.)
16
- Operating voltage
24 V
- Series
S7-1500
- Content
1 pc(s)
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-40 °C
35
147 mm
129 mm
FALSE
FALSE
FALSE
FALSE
FALSE
ATEX gas-ex-protection, Cat. 3G
None
FALSE
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2873770 Siemens 6AG25521AA004AB0 6AG2552-1AA00-4AB0 PLC interface 24 V
User & Safety Instructions
User & Safety Instructions 2873770 Siemens 6AG25521AA004AB0 6AG2552-1AA00-4AB0 PLC interface 24 V
Description
SIPLUS S7-1500 TM Timer DIDQ 16x24V RAIL based on 6ES7552-1AA00-0AB0 with Conformal Coating, -40…+70°C, OT4 with ST1/2 (+85°C for 10min), time-controlled digital inputs and outputs max. 8DI, 16DQ of which max. 16 with timestamp, counting, PWM, oversampling SIMATIC ET 200MP is a modular, Scalable and universally applicable I/O system in IP20 and offers the same system advantages as the S7-1500. It allows the shortest bus cycle times and the fastest response times, even for large quantity structures. The distributed I/O system is particularly easy to install, to wire and put into operation. The scalable design allows you to tailor the I/O station exactly to the needs on-site. Technology modules offer hardware-level signal preprocessing for fast counting, accurate measuring, position detection and pulse width modulation for different encoders and actuators and the control of stepper motor drives and servo drives via the PTI interface.
