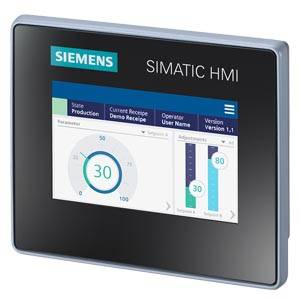

Siemens 6AV2123-3DB32-0AW0 6AV21233DB320AW0 PLC touch panel
EAN:
Part number:
Item no:
Technical specifications
- Product type
PLC touch panel
- Type
6AV2123-3DB32-0AW0
- Manufacturer part #
6AV21233DB320AW0
- Height
116 mm
- Width
140 mm
IP65 (when built-in), Back IP20
- Dim
(W x H) 140 mm x 116 mm
- Content
1 pc(s)
- Display
Yes (5 point multi-touch)
- Max. ambient temperature
50 °C
- Min. ambient temperature
0 °C
- Series
SIMATIC
36 mm
4.3 mm
DC
1
0
0
0
0
2
0
16777216
800
480
32
IP65
140 mm
116 mm
0
TFT
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3189859 Siemens 6AV2123-3DB32-0AW0 6AV21233DB320AW0 PLC touch panel
Description
SIMATIC HMI MTP400, Unified Basic Panel, Touch operation, 4 wide-screen TFT display, 16 MIO colors, PROFINET interface, configurable as of WinCC Unified Basic V18 UPD. 3, contains open source software, which is available free of charge, see the enclosed Blu-Ray SIMATIC HMI Unified Basic Panels enable innovative operating concepts based on the new SIMATIC WinCC Unified visualization software. All devices in sizes from 4 to 12 inches offer the same number of interfaces as well as maximum ease of use thanks to modern multi-touch technology. The new hardware also offers significantly more power for the implementation of visualization. System limits have been greatly increased, and in some cases even doubled. This enables the implementation of much larger applications than before on a panel system. In order to ensure the IT security of the devices, Siemens relies on a proprietary operating system and enables the user to deactivate unnecessary functions or interfaces.
