Siemens 6ED1055-4MH08-0BA1 6ED10554MH080BA1 PLC display extension 12 V DC, 24 V DC, 24 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 180.66 / piece)
€ 180.66
plus VAT.
Technical specifications
- Weight: 220 g
- Type
FSTN
- Product type
PLC display extension
- Manufacturer part #
6ED10554MH080BA1
- Type
6ED1055-4MH08-0BA1
- Min. operating voltage
12 V DC
- Operating voltage
12 - 24 V DC
- Max. operating voltage
24 V DC
- Operating voltage
12 V DC
24 V DC
24 V AC
- Height
86 mm
- Length
38.7 mm
- Width
128.20 mm
IP65
- Dim
(L x W x H) 38.7 x 128.20 x 86 mm
- Display
Yes
- Max. ambient temperature
55 °C
- Min. ambient temperature
-20 °C
- Factory colour
Multicolour
- Certification
UL approval · FM approval · KC approval · Shipbuilding approval
- Weight
0
38.7 mm
AC/DC
2
0
0
0
0
0
0
0
FALSE
4
0 kB
TRUE
1
2
IP65
6
20
128.2 mm
86 mm
0
0
FALSE
LCD with background illumination
0
6
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2335758 Siemens 6ED1055-4MH08-0BA1 6ED10554MH080BA1 PLC display extension 12 V DC, 24 V DC, 24 V AC
User & Safety Instructions
User & Safety Instructions 2335758 Siemens 6ED1055-4MH08-0BA1 6ED10554MH080BA1 PLC display extension 12 V DC, 24 V DC, 24 V AC
Conformity certificate
Conformity certificate 2335758 Siemens 6ED1055-4MH08-0BA1 6ED10554MH080BA1 PLC display extension 12 V DC, 24 V DC, 24 V AC
Description

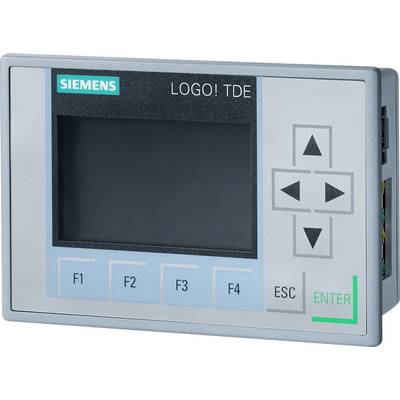

LOGO! TD text display, 6-line, 3 background colors, 2 Ethernet ports, installation accessories for LOGO! 8 the text display LOGO! TDE with its two Ethernet interfaces is FOR connection to the logic module LOGO! designed. A large display with six lines and 20 characters per line allows meaningful messages in plain text. The adjustable background lighting in the colors white, orange and red makes visual highlights possible. The Ethernet connection allows distances of more than ten meters between THE LOGO! TDE and LOGO! 8 to. THE LOGO! TDE is available on all variants of the basic module LOGO! 8 can be connected.
This text is machine translated.
This text is machine translated.
Hints
Can be used from LOGO! 8
