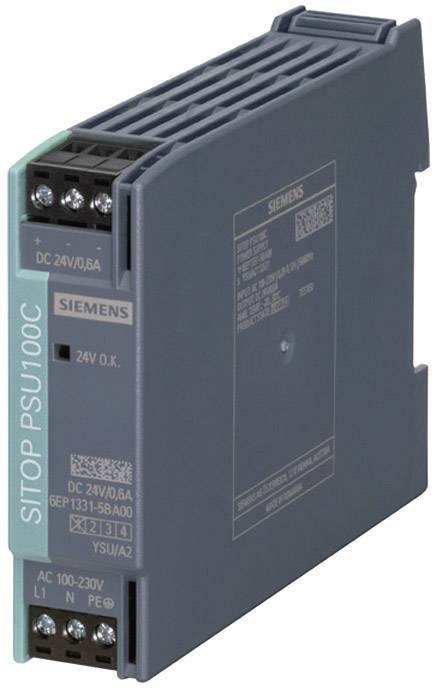

Siemens 6EP13315BA00 Rail mounted PSU (DIN) 24 V DC 0.6 A 14 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Siemens 6EP13315BA00 Rail mounted PSU (DIN) 24 V DC 0.6 A 14 W No. of outputs:1 x Content 1 pc(s)
- Space saving 22.5mm width slim design
- High efficiency rating
- Input voltage range: 85 - 264 Vac, 110 - 300 V DC
- 1 phase
- Output: 24V DC 0.6A 15W
- Switched Mode
- Termination type: Plug terminals
Technical specifications
- IP20
- Nominal input voltage
115 V/AC
230 V/AC
110 - 300 V/DC
- Type
Switched Mode
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
24 V DC
- Inputs
1
- Input voltage
85 - 264 Vac, 110 - 300 V DC
- Input voltage (max.)
264 V AC
- Max. output current
0.6 A
- Output current (max.) - rounded
600 mA
14 W
- Output type (power supply units)
Adjustable
- Phases
1
- Output voltage (nominal)
24 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(W x H x D) 22.5 x 80 x 100 mm
- Weight
0.12 kg
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
55 °C
- Operating temperature (min.)
-20 °C
- Manufacturer part #
6EP13315BA00
- Content
1 pc(s)
- PSU features
Adjustable voltage output
- Width
22.5 mm
- Height
80 mm
- Max. temperature
+70 °C
- Min. temperature
-20 °C
- Type
SITOP PSU100C 24 V/0,6 A
- Depth
100 mm
15 W
- Connections
Plug terminals
- Output current (details)
0.6 A
22.5
80 mm
100 mm
180 mm
22.5 mm
TRUE
AC/DC
Screw connection
TRUE
IP20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 513290 Siemens 6EP13315BA00 Rail mounted PSU (DIN) 24 V DC 0.6 A 14 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 513290 Siemens 6EP13315BA00 Rail mounted PSU (DIN) 24 V DC 0.6 A 14 W No. of outputs:1 x Content 1 pc(s)
Description
Siemens SITOP PSU100C 24 V/0,6 A power supplies are ideal for switch boxes and small switch cabinets. Power-efficient current supply for DIN rail mounting with less loss of power in the entire load range even in standby mode.
Features
- Power indicator
- Adjustable output voltage (22.2 - 26.4 V)
- Operating temperature: -20 to +70 °C > 55 °C derating).
