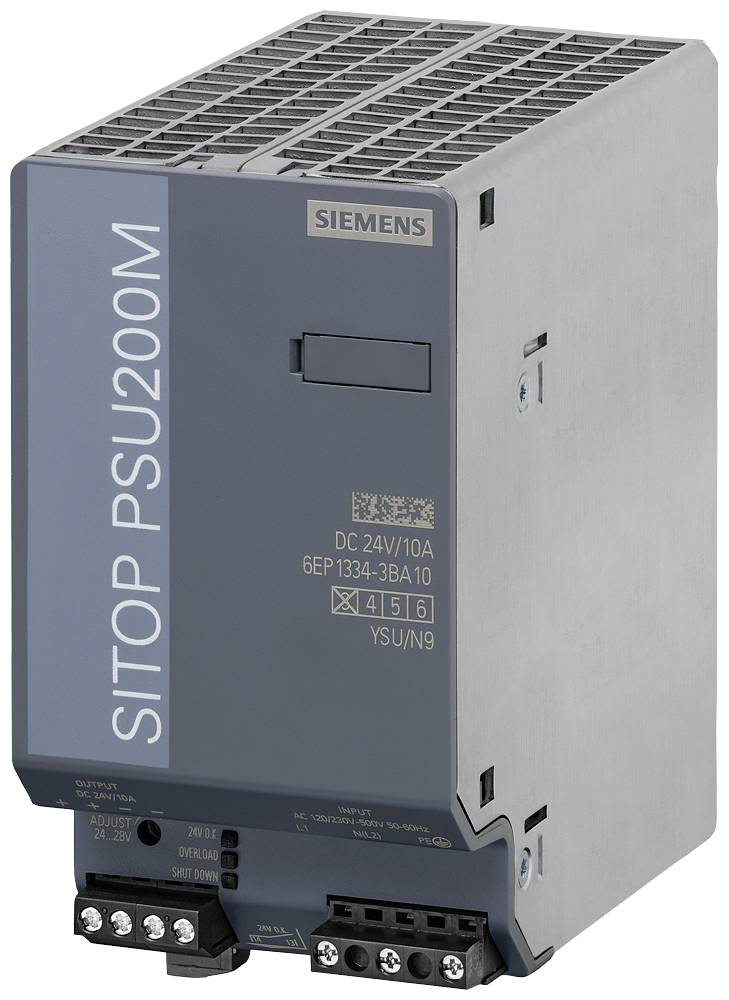

Siemens 6EP13343BA10 Rail mounted PSU (DIN) 24 V DC 10 A Content 1 pc(s)

SITOP PSU200M 10 A Regulated Power Supply Input: AC 120/230-500 V Output: DC 24 V/10 A *EX approval no longer available* The 1 and 2-phase SITOP modular are technology power supplies for demanding solutions and offer maximum functionality for use in complex plants and machines. The ultra wide input range enables the connection to 1-phase supply networks or directly between the external conductors of three-phase systems (2-phase) and provides high security even with large voltage fluctuations. The Power boost provides briefly up to three times the rated current. And in case of overload one can select between a constant current with automatic restart or storage shut-off. The high degree of efficiency keeps the power consumption and heat generation in the control cabinet minimal, and the compact metal casing also saves space. To further increase of the 24 V availability, the power supplies can be combined with buffer, DC-UPS, redundancy and selectivity modules. No matter which industry, no matter what requirements - Siemens offers reliable and efficient power supplies for every system.

This text is machine translated.
