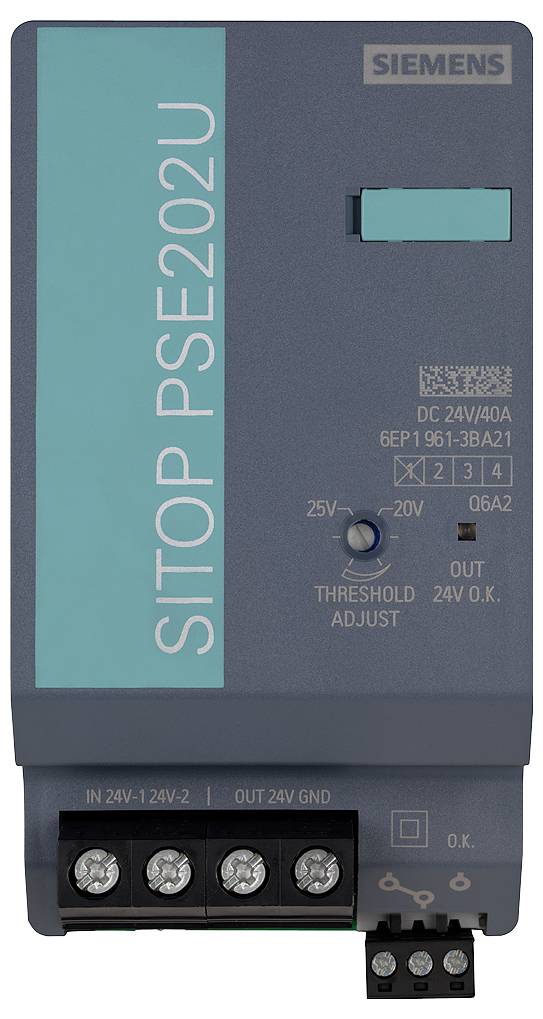

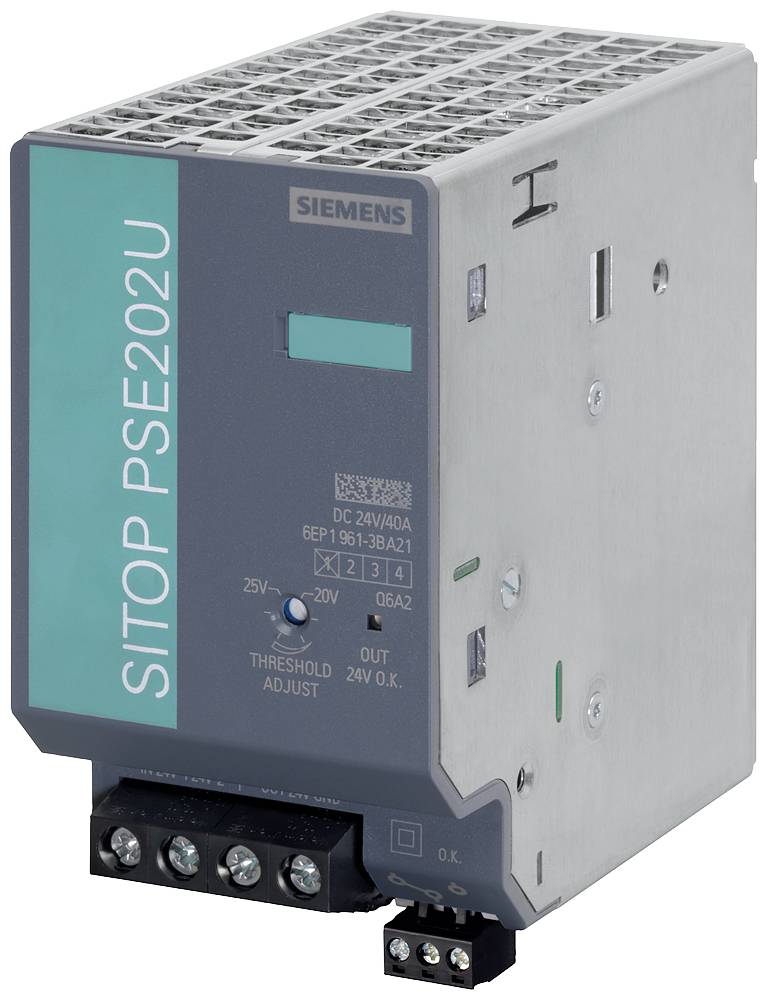

Siemens 6EP19613BA21 Redundancy module 24 V 40 A 960 W No. of outputs:1 x Content 1 pc(s)

SITOP PSE202U redundancy module input / output: DC 24 V/40 A suitable for decoupling of two SITOP power supplies with a maximum output current each 20 A The redundancy modules SITOP PSE202U are the ideal supplement for all 24 V power supplies, in order to ensure an additional protection against a failure of the 24-V supply. The redundancy module decouples two identical 24 V power supplies to each 20 A output current, so that the power supply to the consumers is continued via the second power supply in the case of a power supply failure. In addition, a signal is sent via a signal contact, which can be evaluated by a controller, a PC or control system. Via the redundancy module, the power supplies of the same type can be connected in parallel also to increase the power and at the same time receive redundancy. Whatever industry and requirements, Siemens offers reliable and efficient power supplies for every plant.

This text is machine translated.
