Buy Siemens 6EP33217SB000AX0 Power supply unit 12 V 2 A 24 W No. of outputs:1 x Content 1 pc(s)

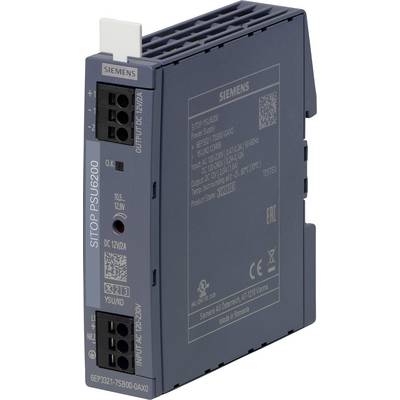

A blue Siemens SITOP PSU6200 power supply module with technical specifications on the front, suitable for industrial applications.

Datasheet (PDF)

Dispatches on Wed, 18 Nov

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 92.43 / piece)

€ 92.43

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP20

Product type: Power supply unit

Min. input voltage: 110
85

Input voltage: 18.5 - 32.2 V DC

Input voltage (max.): 275
264

Max. output current: 2 A

Output current (max.) - rounded: 2 A

: 24 W

Output type (power supply units): Fixed voltage

Phases: 1

Output voltage (nominal): 12 V

No. of outputs: 1 x

Connection: Jack connector

Dim: (W x H) 25 mm x 200 mm

Weight: 0.26 kg

Output voltage (max.): 12 V

Output voltage (min.): 12 V

Operating temperature (max.): 70 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 6EP33217SB000AX0

Content: 1 pc(s)

Width: 25 mm

Height: 200 mm

Max. temperature: 85 °C

Min. temperature: -40 °C

Type: 6EP3321-7SB00-0AX0

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2104862 Siemens 6EP33217SB000AX0 Power supply unit 12 V 2 A 24 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2104862 Siemens 6EP33217SB000AX0 Power supply unit 12 V 2 A 24 W No. of outputs:1 x Content 1 pc(s)

Description

The 1-phase SITOP PSU6200 mini are slim and space-saving power supplies for the lower power range. They are used in distributed applications in control boxes or in small control cabinets. They are characterized by the low power loss over the entire load range. Even when idle, losses are extremely low, which makes them ideal for efficient supply of machines and equipment, which are often in standby mode. The switched-mode power supplies have a wide-range input for AC and DC networks, whereby plug-in terminals support the simple electrical connection. The large temperature range offers universal application possibilities. No matter which industry, no matter what requirement Siemens offers reliable and efficient power supplies for each plant.
