Buy Siemens 6EP33237SB000AX0 Power supply unit 12 V 7 A 84 W No. of outputs:1 x Content 1 pc(s)

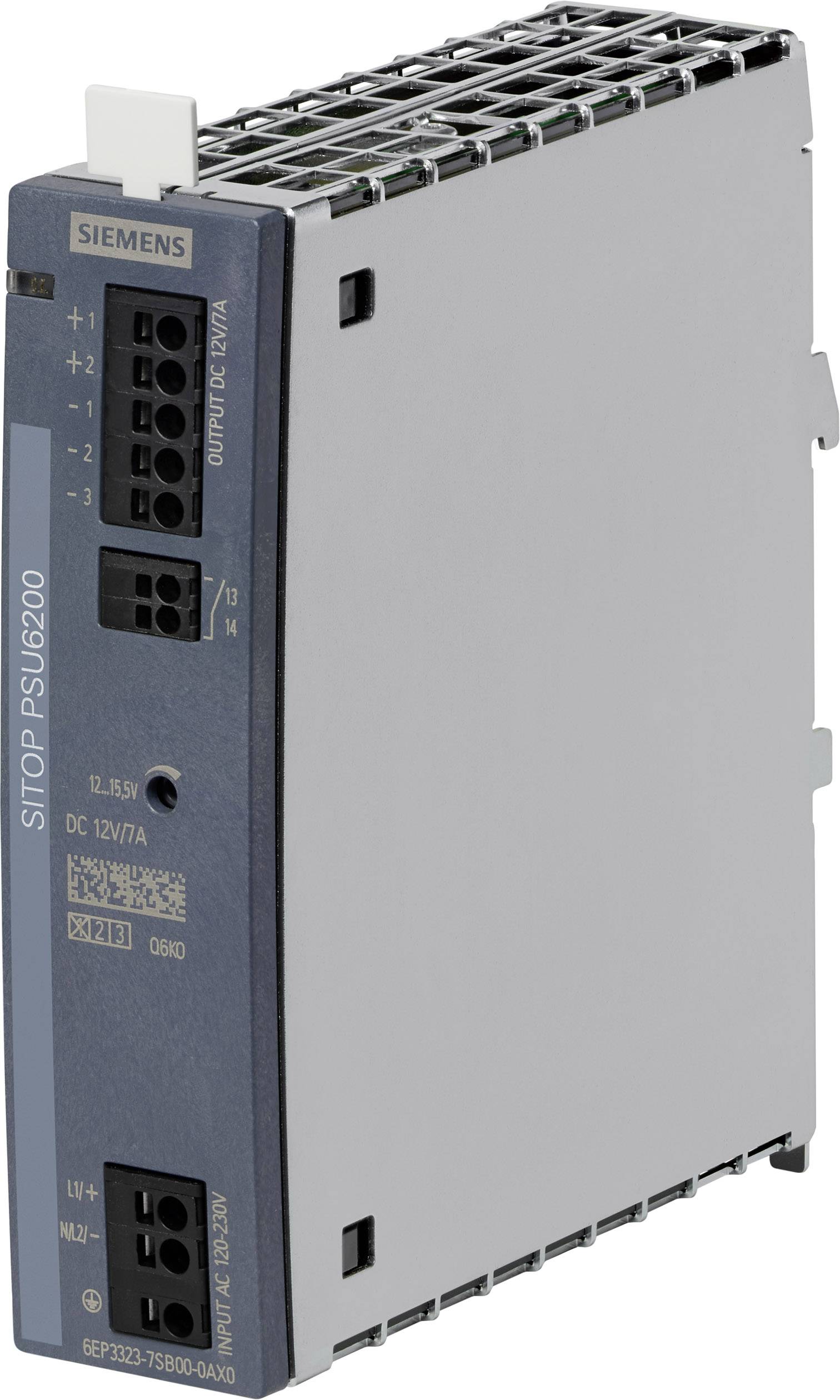

A Siemens switched-mode power supply, model SITOP PSU6200, designed for industrial application and power supply purposes.

Datasheet (PDF)

Dispatches on Fri, 9 Oct

44 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 147.05 / piece)

€ 147.05

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP20

Product type: Power supply unit

Min. input voltage: 99 V DC
85 V AC

Input voltage: 18.5 - 32.2 V DC

Input voltage (max.): 275 V DC
264 V AC

Max. output current: 7 A

Output current (max.) - rounded: 7 A

: 84 W

Output type (power supply units): Fixed voltage

Phases: 1

Output voltage (nominal): 12 V

No. of outputs: 1 x

Dim: (L x W x H) 125 x 35 x 135 mm

Weight: 0.7 kg

Output voltage (max.): 12 V

Output voltage (min.): 12 V

Operating temperature (max.): 70 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 6EP33237SB000AX0

Content: 1 pc(s)

Width: 35 mm

Height: 135 mm

Length: 125 mm

Max. temperature: 85 °C

Min. temperature: -40 °C

Type: 6EP3323-7SB00-0AX0

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2104863 Siemens 6EP33237SB000AX0 Power supply unit 12 V 7 A 84 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2104863 Siemens 6EP33237SB000AX0 Power supply unit 12 V 7 A 84 W No. of outputs:1 x Content 1 pc(s)

Description

The 1-phase SITOP PSU6200 are technology power supplies for demanding solutions and offer maximum functionality for use in complex plants and machines. The wide-range input enables the connection to any power supply in the world and provides high security even with large voltage fluctuations. The extra power supplies up to 150% of the nominal current for a short time. In the event of an overload, the PSU6200 supplies constant current up to a voltage of 9V DC. The very high efficiency keeps the energy consumption and heat generation in the control cabinet low and the compact metal housing saves space. To further increase the 12 V availability, the SITOP PSU6200 power supplies can be combined with redundancy modules. No matter which industry, no matter what requirement Siemens offers reliable and efficient power supplies for each plant.

This text is machine translated.
