Name: Siemens 6EP34347SB003AX0 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)
Brand: Siemens
SKU: 2234378

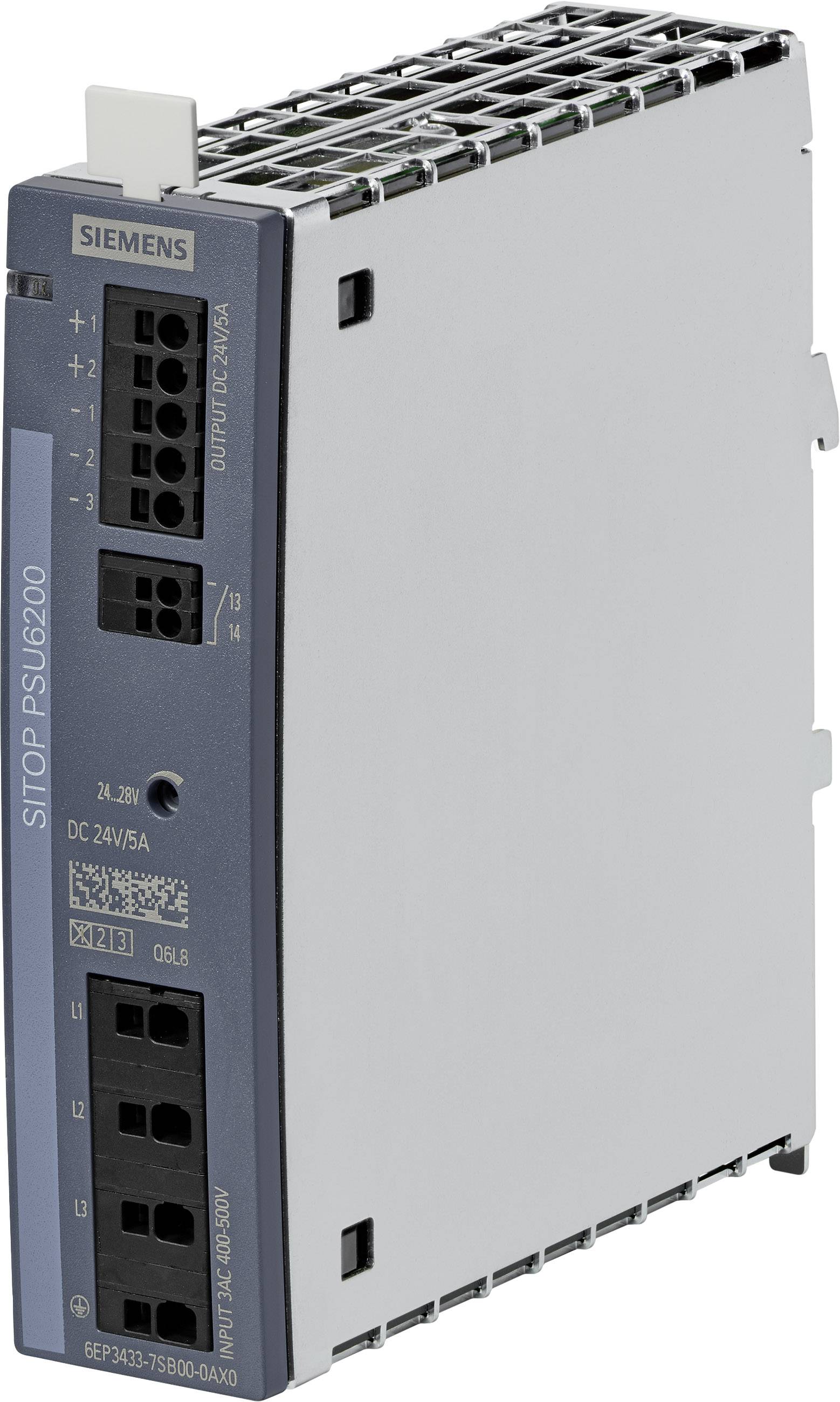

A grey Siemens SITOP PSU6200 power supply with black connections and a blue front, displaying performance and voltage specifications.

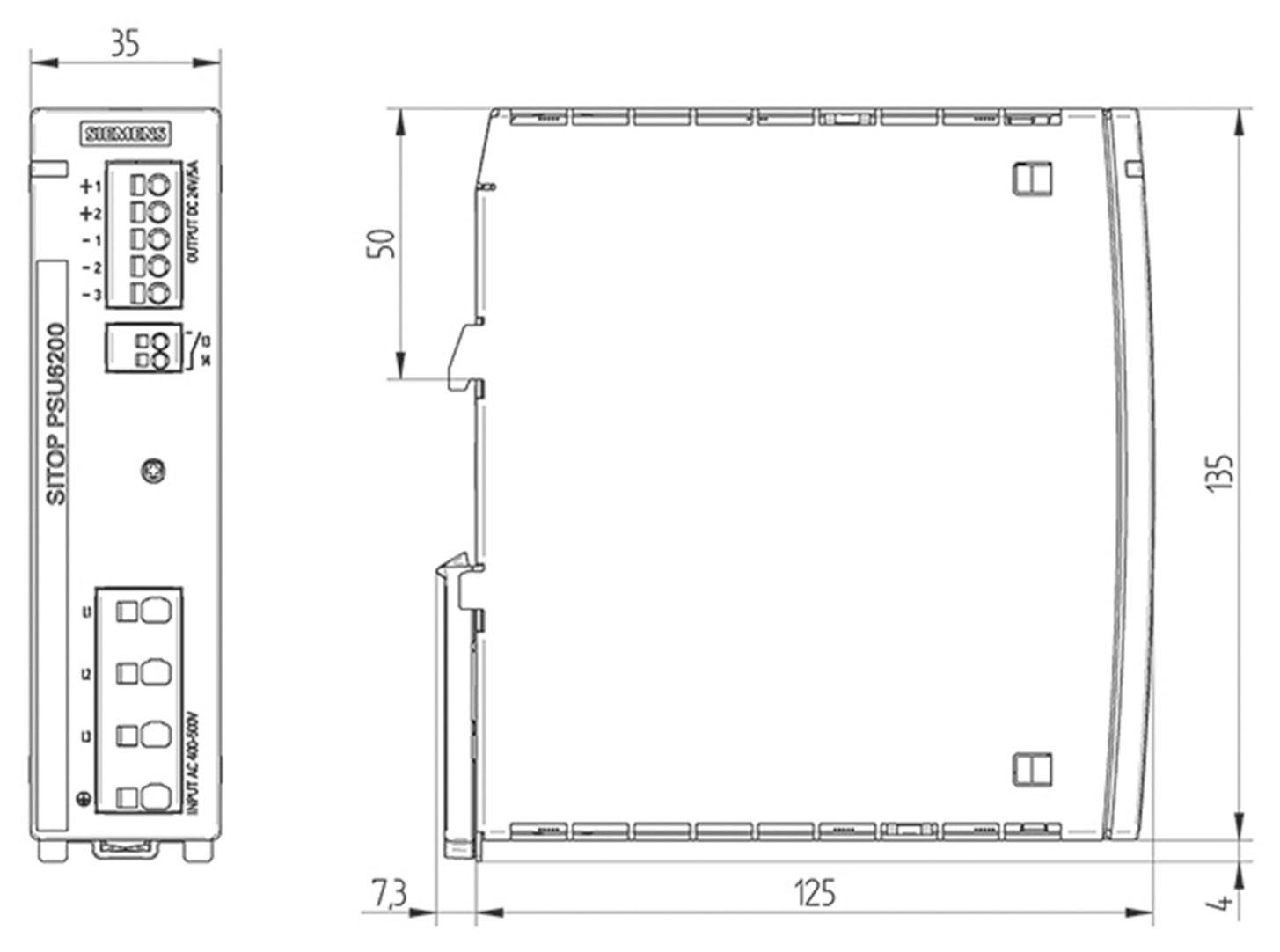

Side view and front view of a SITOP PSU6200 switched power supply with dimensions: 35 mm width, 125 mm height and 135 mm depth.

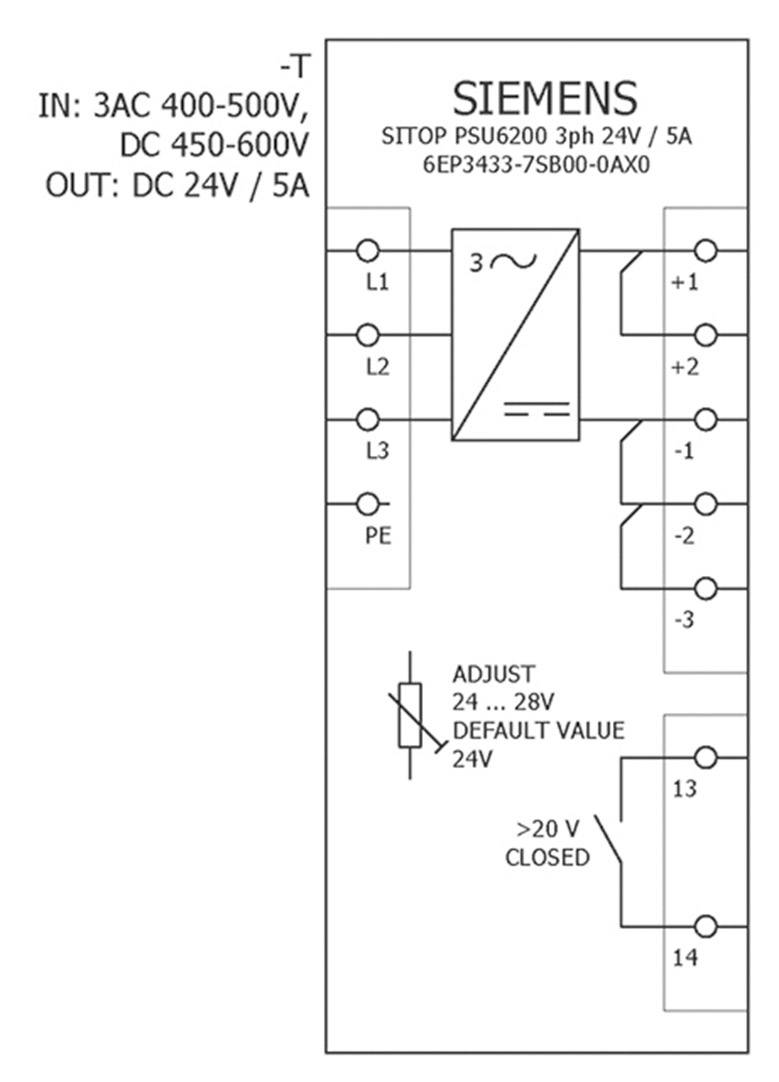

Diagram of a Siemens SITOP PSU6200 power supply. Input: 3AC 400-500V, DC 450-600V; Output: DC 24V/5A. Adjustable range.

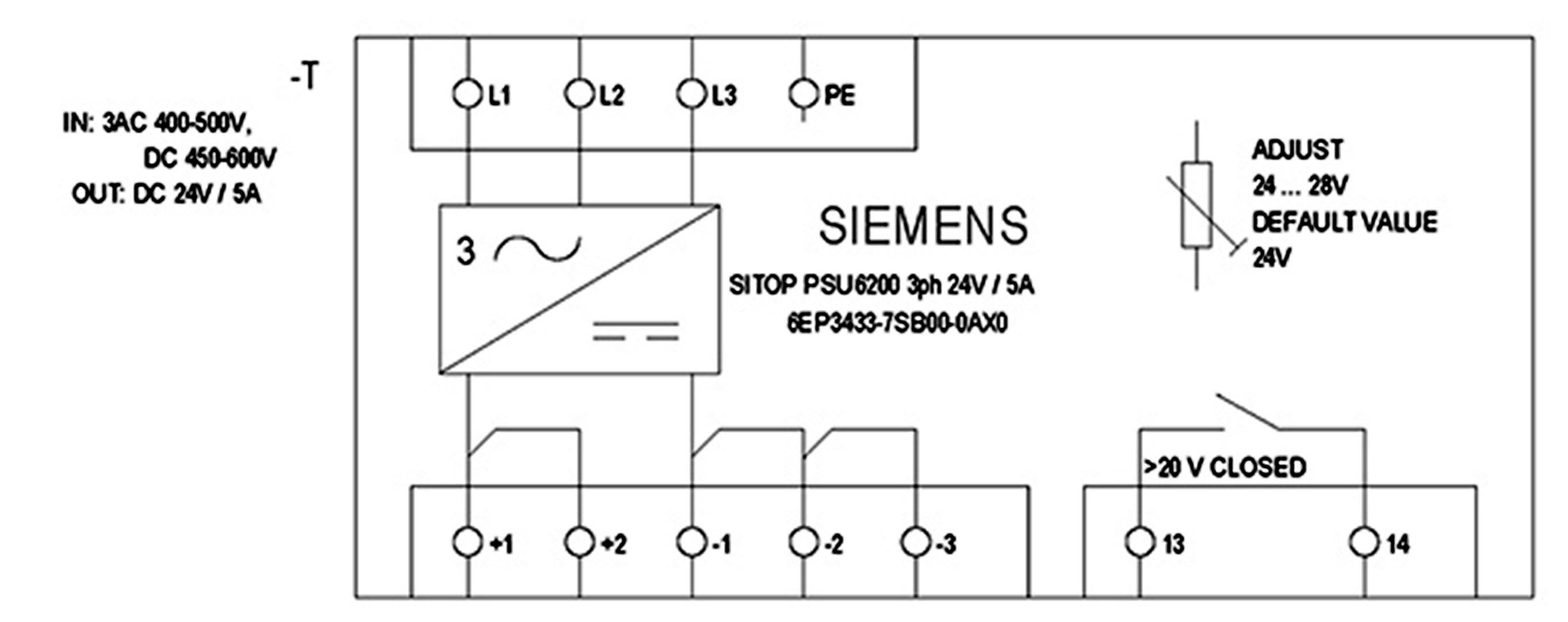

'Circuit diagram of a Siemens SITOP PSU6200 3-phase 24V/5A power supply, showing connections: 3-phase input, DC outputs, protection and controller settings.'

1/4

Datasheet (PDF)

Unavailable

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Output voltage setting: Via potentiometer; max. 240 W (288 W to 45°C)
Power indicator: LED green for 24 V O.K.
Signaling: Electronic contact (NO contact, contact load capacity DC 30 V/0.1 A) for 24 V O.K. or diagnostic interface

Nominal input voltage: 400 - 500 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 450 V

Output voltage: 24 V DC

Input voltage (max.): 600 V

Max. output current: 10 A

Output current (max.) - rounded: 10 A

: 240 W

Output type (power supply units): Adjustable

Phases: 3

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Push-in connector

Dim: (L x W x H) 125 x 35 x 135 mm

Weight: 700 g

Operating temperature (max.): +70 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 6EP34347SB003AX0

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 35 mm

Height: 135 mm

Length: 125 mm

: IP20

Max. temperature: +70 °C

Min. temperature: -40 °C

Type: 6EP3434-7SB00-3AX0

Efficiency: 95.4 %

: 45

: 135 mm

: 155 mm

: 225 mm

: 45 mm

: TRUE

: AC/DC

: 240 W

: TRUE

: Spring clamp connection

: TRUE

: FALSE

: TRUE

: IP20

: FALSE

: TRUE

: TRUE

: 10 A

: 24 V

: 10 A

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2234378 Siemens 6EP34347SB003AX0 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2234378 Siemens 6EP34347SB003AX0 Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Description

SITOP PSU6200 24 V/10 A regulated power supply Input: 400 - 500 V AC output: 24 V DC/10 A with diagnostic interface The 3-phase SITOP PSU6200 are standard power supplies for high technical requirements. They are suitable for a wide range of applications, especially in industrial environments such as serial machine construction. The high-quality design of the PSU6200 family combined with the push-in terminals means effective wiring. The long service life and absolute reliability make the modules of this product family an all-rounder. The high efficiency over the entire load range as well as minimum no-load losses guarantee a resource-saving energy consumption. The diagnostic monitor with the DC OK LED displays, load and service life, as well as the diagnostic interface for reporting status information, offer new convenience for commissioning and service. To further increase the 24 V availability, the SITOP PSU6200 power supplies can be combined with DC UPS, redundancy and selectivity modules. No matter which industry, no matter what requirements - Siemens offers reliable and efficient power supplies for every plant.

This text is machine translated.
