Siemens 6EP34367SB003AX0 Rail mounted PSU (DIN) 24 V 20 A 480 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Output voltage setting: Via potentiometer; max. 480 W (576 W to 45°C)
- Power indicator: LED green for 24 V O.K.
- Signaling: Electronic contact (NO contact, contact load capacity DC 30 V/0.1 A) for 24 V O.K. or diagnostic interface
- Nominal input voltage
400 - 500 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
450 V
- Output voltage
24 V DC
- Input voltage (max.)
600 V
- Max. output current
20 A
- Output current (max.) - rounded
20 A
480 W
- Output type (power supply units)
Adjustable
- Phases
3
- Output voltage (nominal)
24 V
- No. of outputs
1 x
- Connection
Push-in connector

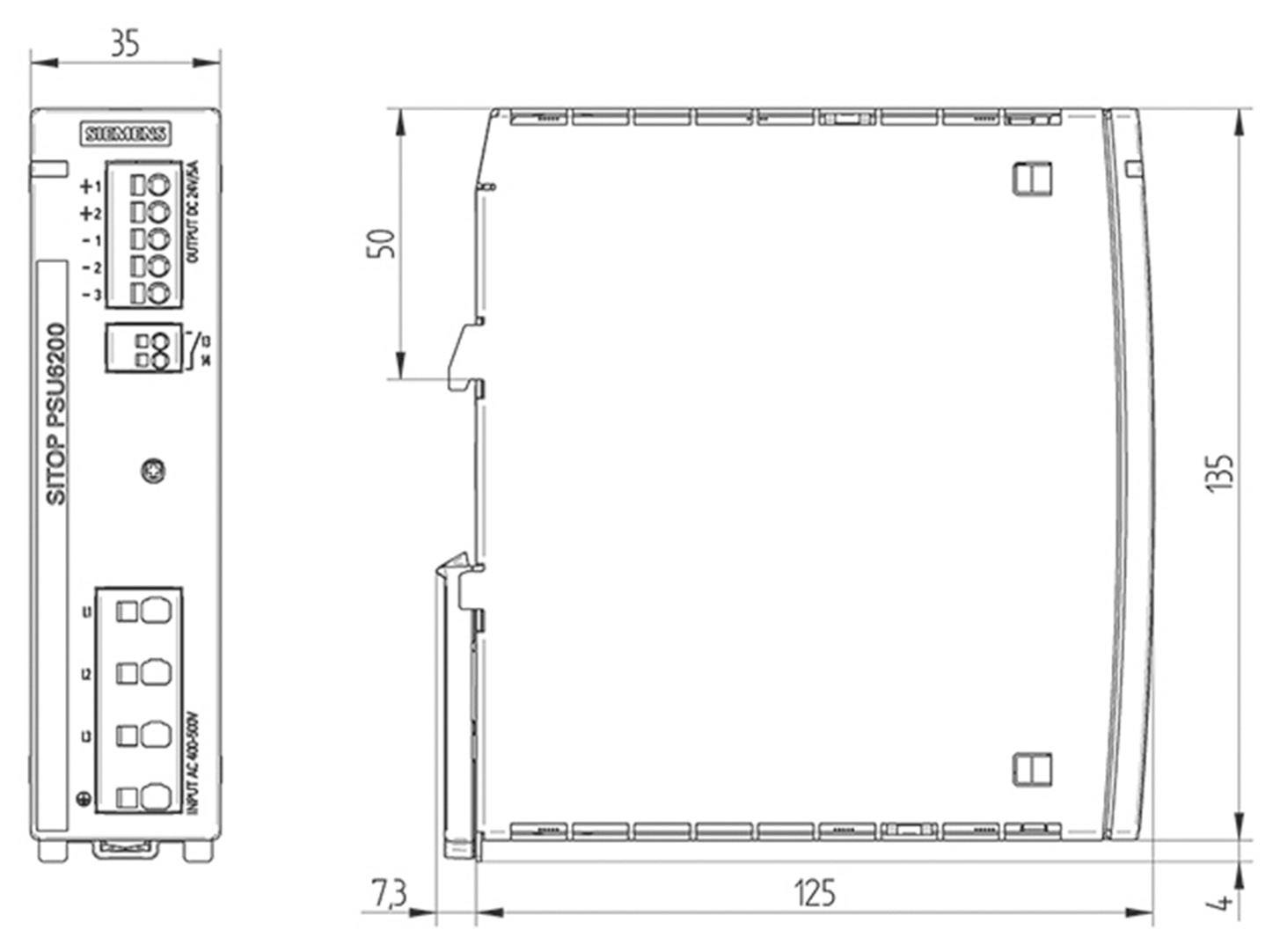

- Dim
(L x W x H) 155 x 45 x 135 mm
- Weight
700 g
- Operating temperature (max.)
+70 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
6EP34367SB003AX0
- Content
1 pc(s)
- PSU features
Regulated
- Width
45 mm
- Height
135 mm
- Length
155 mm
IP20
- Max. temperature
+70 °C
- Min. temperature
-40 °C
- Type
6EP3436-7SB00-3AX0
70
135 mm
155 mm
225 mm
70 mm
TRUE
AC/DC
480 W
TRUE
Spring clamp connection
TRUE
FALSE
TRUE
IP20
FALSE
TRUE
TRUE
20 A
24 V
20 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2234379 Siemens 6EP34367SB003AX0 Rail mounted PSU (DIN) 24 V 20 A 480 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2234379 Siemens 6EP34367SB003AX0 Rail mounted PSU (DIN) 24 V 20 A 480 W No. of outputs:1 x Content 1 pc(s)
Description
SITOP PSU6200 24 V/20 A regulated power supply Input: 400 - 500 V AC output: 24 V DC/20 A with diagnostic interface The 3-phase SITOP PSU6200 are standard power supplies for high technical requirements. They are suitable for a wide range of applications, especially in industrial environments such as serial machine construction. The high-quality design of the PSU6200 family combined with the push-in terminals means effective wiring. The long service life and absolute reliability make the modules of this product family an all-rounder. The high efficiency over the entire load range as well as minimum no-load losses guarantee a resource-saving energy consumption. The diagnostic monitor with the DC OK LED displays, load and service life, as well as the diagnostic interface for reporting status information, offer new convenience for commissioning and service. To further increase the 24 V availability, the SITOP PSU6200 power supplies can be combined with DC UPS, redundancy and selectivity modules. No matter which industry, no matter what requirements - Siemens offers reliable and efficient power supplies for every plant.
