Siemens 6EP34377DH003DY0 Power supply unit 24 V 46 A 1104 W No. of outputs:6 x Content 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Type
short circuit resistant
- Nominal input voltage
400 - 500 V/AC
- Product type
Power supply unit
- Input voltage (max.)
500 V AC
- Max. output current
46 A
- Output current (max.) - rounded
46 A
1104 W
- Output voltage (nominal)
24 V
- No. of outputs
6 x

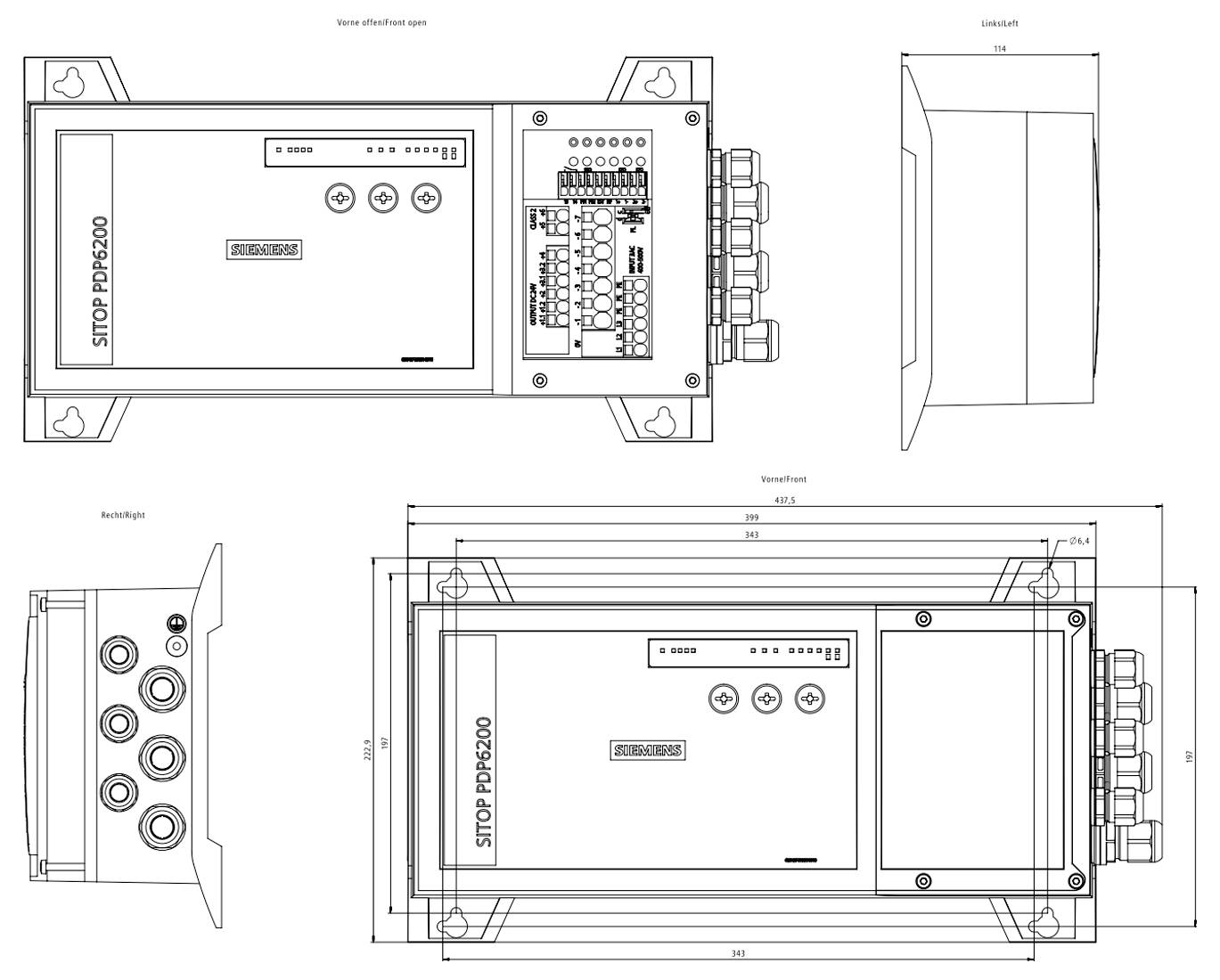

- Dim
(L x W x H) 115 x 399 x 172 mm
- Output voltage (max.)
28 V
- Output voltage (min.)
24 V
- Manufacturer part #
6EP34377DH003DY0
- Content
1 pc(s)
- PSU features
Regulated
- Width
399 mm
- Height
172 mm
- Length
115 mm
IP65
- Type
6EP3437-7DH00-3DY0
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3749722 Siemens 6EP34377DH003DY0 Power supply unit 24 V 46 A 1104 W No. of outputs:6 x Content 1 pc(s)
Description

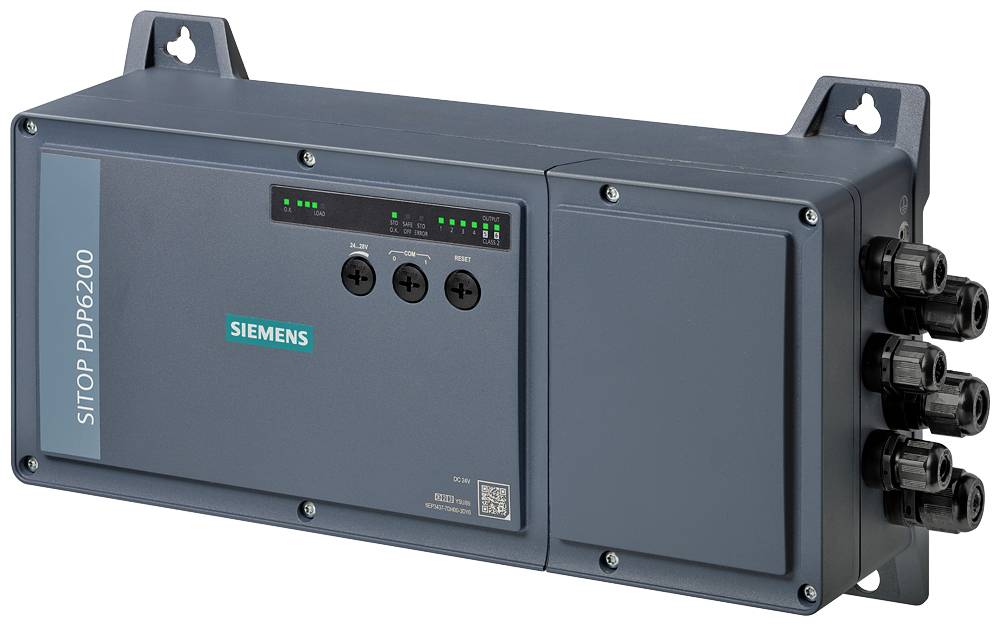

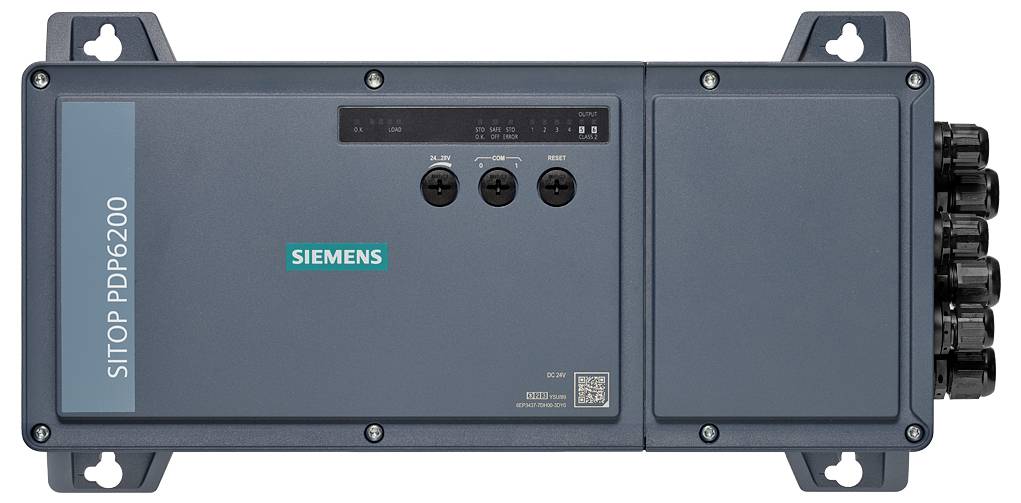

SITOP PDP6200 24 V/46 A regulated power supply Input: AC 400 - 500 V Output: 4x DC 24 V/10 A 2x DC 24 V/3 A, NEC class 2 STO (PL d, CAT. 3) with diagnostic interface IP65 degree of protection The SITOP PDP6200 is a new system power supply with a high degree of protection, which combines the quality and efficiency of today's standard SITOP PSU6200 power supply with the advantages of a selectivity module. In combination with the integrated, safe shutdown function according to Performance Level D, the SITOP PDP6200 is particularly suitable for distributed applications in the field, especially for applications in which small control cabinets are currently being built for the 24 VDC power supply.
