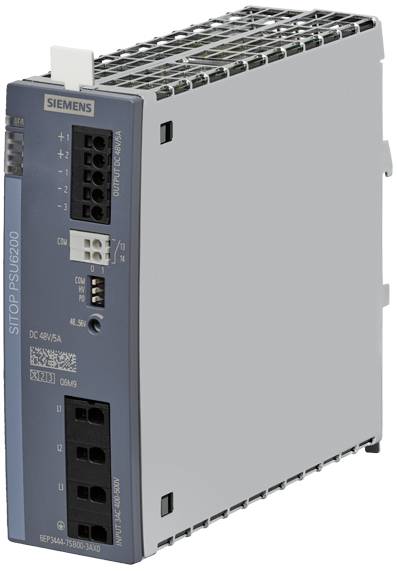

Siemens 6EP34447SB003AX0 Rail mounted PSU (DIN) 48 V DC 5 A 240 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Nominal input voltage
400 - 500 V/AC
- Product type
Rail mounted PSU (DIN)
- Max. output current
5 A
- Output current (max.) - rounded
5 A
240 W
- Output type (power supply units)
Fixed voltage
- Phases
3
- Output voltage (nominal)
48 V DC
- No. of outputs
1 x
- Connection
Push-in connector
- Manufacturer part #
6EP34447SB003AX0
- Content
1 pc(s)
- PSU features
Regulated
- Type
6EP3444-7SB00-3AX0
45
135 mm
155 mm
225 mm
45 mm
TRUE
AC/DC
240 W
TRUE
TRUE
FALSE
TRUE
IP20
FALSE
TRUE
TRUE
5 A
48 V
5 A
- UKCA
yes
