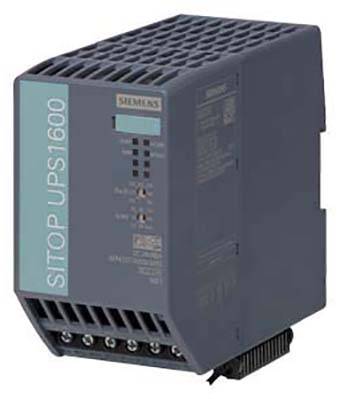

Siemens 6EP4137-3AB00-0AY0 6EP41373AB000AY0 UPS
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Output active power, typical: 960 W.
- Start-up delay time, typical: 60 s.
- Mounting type: DIN rail mounting
- Short-circuit proof output: Yes
- Installation width 70 mm
- Mounting height 239 mm
- Input current at input voltage 24 V: 46 A.
- Adjustable charging current max.: Automatically depending on the battery module
- Charging current 1: 0.1 A.
- Charging current 2: 5 A.
- Connectable housing: Yes
- DC-UPS modular expandable: Yes
- Communication function: Yes
- Reverse polarity protection against reverse polarity input voltage: Yes
- Reverse polarity protection against polarity reversal of the energy storage: Yes
- Protection class: IP20
- Voltage rise time of output voltage, typical: 60 ms
- Peak current: 120 A;
- Power loss with battery operation, typically 15 W.
- Supply voltage 24 V/DC
- Efficiency with battery operation, typical: 0.985
- Product type
UPS
- Nominal power
960 W
- Input voltage (max.)
29 V DC
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Dim
(W x H x D) 70 x 139 x 150 mm
- Output current (details)
120 A
- Input current
100 mA
- Weight
650 g
- Width
70 mm
- Height
139 mm
- Depth
150 mm
- Type
6EP4137-3AB00-0AY0
- Features
Active filter
70
139 mm
150 mm
0.65 kg/m
DC
FALSE
FALSE
Offline
960 W
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1705154 Siemens 6EP4137-3AB00-0AY0 6EP41373AB000AY0 UPS
Datasheet 1705154 Siemens 6EP4137-3AB00-0AY0 6EP41373AB000AY0 UPS
User & Safety Instructions
User & Safety Instructions 1705154 Siemens 6EP4137-3AB00-0AY0 6EP41373AB000AY0 UPS
Description
SIVACON, Control panel Empty enclosure, without side panels, according to IEC 62208, with Ventilation openings IP20, H: 2200 mm, W: 600 mm, T: 1000 mm
