Siemens 6EP4437-7FB00-3CX0 1 pc(s)

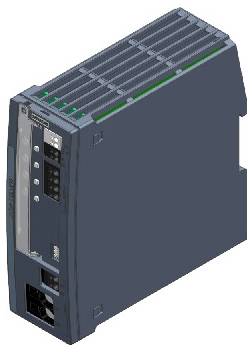

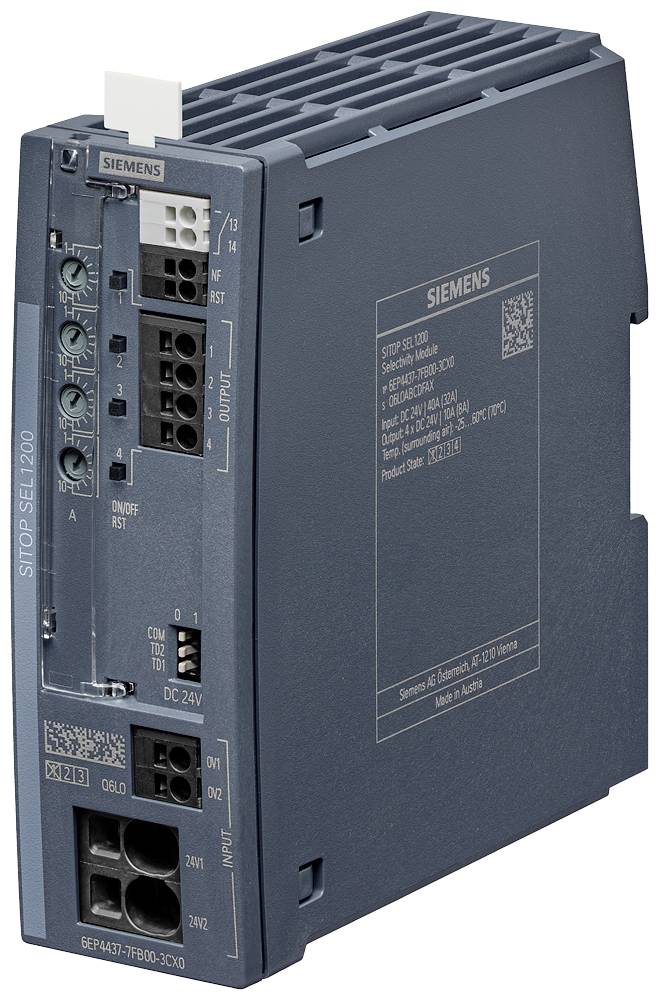

SITOP SEL1200 10 A Selectivity module 4-channel with switching characteristic Input: DC 24 V/40 A Output: DC 24 V/4x 10 A Adjustable threshold 2-10 A with monitoring interface *EX approval no longer available* The Selektivitatsmodul SITOP SEL1200 is the optimal complement for all 24 V power supplies, in order to split and monitor the load current over several current branches. Overload and short circuit in one or more branches are detected reliably. Short term current peaks, for example through a high inrush current, the electronics to, feeders with longer overload switches you dead. This is even ensured on high ohmic lines and with rapid short circuits. The intact feeders are supplied and thus the system's downtime is minimized. The signaling of the faulty tap is done via LEDs on the device as well as via composite signal contact or diagnostic monitor. No matter which industry, no matter what requirements - Siemens offers reliable and efficient power supplies for every system.

This text is machine translated.
