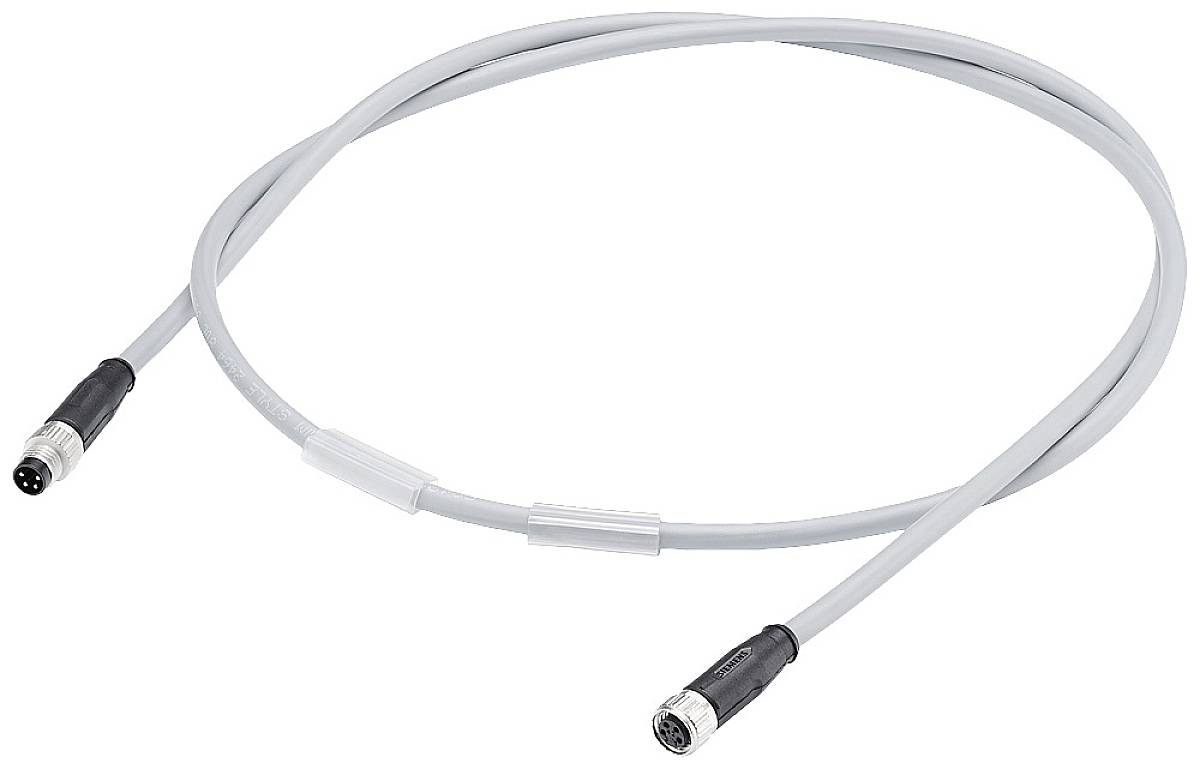

Image similar
Siemens 6ES7194-2LH10-1AA0 6ES71942LH101AA0 PLC power cable
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Cable sheath color: Gray
- Material: PVC.
- Number of bending cycles: 2500000
- Number of wires: 4
- Type of cable outlet: 180° cable outlet
- External diameter of wire insulation: 1.46 mm
- Outer diameter of inner conductor: 0.8 mm
- Outer diameter of cable sheath: 5.2 mm
- Color of the wire insulation of the energy conductors: White / brown / blue / black
- Cable designation: 4 Li9Y 0.5 mm² Y
- Core insulation material: PP
- Product type
PLC power cable
- Type
6ES7194-2LH10-1AA0
- Manufacturer part #
6ES71942LH101AA0
- Type
M8
- Length
1 m
- Width
5.2 mm
IP65/67
- Series
ET 200
- Dim
(L x W) 1 m x 5.2 mm
- Content
1 pc(s)
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-40 °C
PLC - other devices
4
1 m
Circular connector
Circular connector
TRUE
TRUE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2263666 Siemens 6ES7194-2LH10-1AA0 6ES71942LH101AA0 PLC power cable
User & Safety Instructions
User & Safety Instructions 2263666 Siemens 6ES7194-2LH10-1AA0 6ES71942LH101AA0 PLC power cable
Description
Power cable M8, both ends pre-assembled with M8 plug and M8 socket, 4-pin, length 1.0m SIMATIC ET 200 AL is an IO system in block design with a high degree of protection IP65/67, particularly compact design as well as small space requirement and weight. It is specially designed for distributed control electronics in tight spaces and during movement and is quickly and conveniently configured and commissioned via the TIA Portal. Standard modules can be switched off in a safety-related manner in groups. The I/O modules are the interface of the SIMATIC ET 200AL to the process. The accessories available for ET 200AL range from plugs and (pre-assembled) connecting cables for bus connection and power supply via identification labels to the tool for fast stripping of the bus cable. Accessories for SIMATIC ET 200AL
