Buy Siemens 6ES73071BA010AA0 Rail mounted PSU (DIN) 24 V DC 2 A 48 W No. of outputs:1 x Content 1 pc(s)

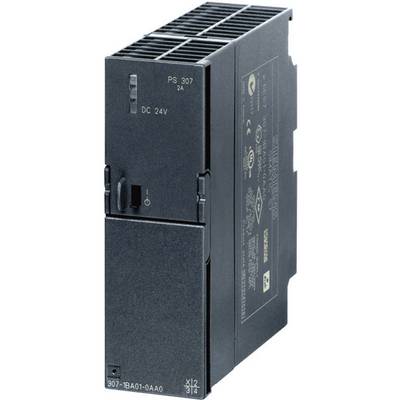

A black industrial power supply unit, model-labelled 'PS 307' with 'DC 24V'. It is standing vertically upright.

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 184.87 / piece)

€ 184.87

plus VAT.

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Siemens 6ES73071BA010AA0 Rail mounted PSU (DIN) 24 V DC 2 A 48 W No. of outputs:1 x Content 1 pc(s)

Input voltage range: 85 - 132 Vac, 170 - 264 V AC (automatically switches)
1 phase
Output: 24V DC 2A 48W
Switched Mode
Termination type: Screw terminals

Technical specifications

IP20

Nominal input voltage: 115 V/AC
230 V/AC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V AC

Output voltage: 24 V DC

Inputs: 1

Input voltage: 85 - 132 Vac, 170 - 264 V AC

Input voltage (max.): 264 V AC

Max. output current: 2 A

Output current (max.) - rounded: 2 A

: 48 W

Output type (power supply units): Fixed voltage

Phases: 1

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 40 x 125 x 120 mm

Weight: 0.4 kg

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V DC

Operating temperature (max.): 60 °C

Operating temperature (min.): 0 °C

Manufacturer part #: 6ES73071BA010AA0

Content: 1 pc(s)

PSU features: ATEX certificate

Width: 40 mm

Height: 125 mm

Max. temperature: +60 °C

Min. temperature: 0 °C

Type: SIMATIC PS307 24 V/2 A

Efficiency: 84 %

Depth: 120 mm

: 48 W

Connections: Screw terminals

Output current (details): 2 A

: 40

: 125 mm

: 120 mm

: 205 mm

: 40 mm

: TRUE

: AC

: Screw connection

: FALSE

: IP20

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 513200 Siemens 6ES73071BA010AA0 Rail mounted PSU (DIN) 24 V DC 2 A 48 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 513200 Siemens 6ES73071BA010AA0 Rail mounted PSU (DIN) 24 V DC 2 A 48 W No. of outputs:1 x Content 1 pc(s)

Description

The Siemens 6ES73071BA010AA0 from the manufacturer's compact power supply for S7 rail mounting Perfect power supply unit for SIMATIC SPS-systems. The power is supplied quickly to the SIMATIC CPU via the provided connecting brush. With special characteristics, it can be used for many other applications

Features

Wide-range input
Power indicator
Can be switched in parallel for increased power
Efficiency up to 84%
Output-over voltage and short circuit protection with automatic restart
Safety: EN60950-1 and EN 50178
approvals: UL508, CSA C22.2 no. 142
Explosion protection: ATEX94/9EC EX II 3G; EEx, nA, II, T4 U; UL1604 class I Div. 2 Group A, B, C, D
FM-approved class I Div. 2 Group A, B, C, D T4
Ship building licensure: in system S7-300
EMV: EN 55022 class B, EN 61000-6-2
Working range: 0 - 60 °C without derating.
