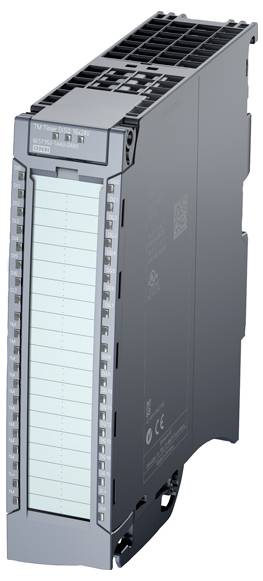

Siemens 6ES75521AA010AB0 6ES7552-1AA01-0AB0 PLC digital I/O module 24 V
EAN:
Part number:
Item no:
Technical specifications
- Product type
PLC digital I/O module
- Type
6ES7552-1AA01-0AB0
- Manufacturer part #
6ES75521AA010AB0
- No. of digital inputs (max.)
8
- No. of inputs (max.)
8
- No. of outputs (max.)
16
- Operating voltage
24 V
- Series
S7-1500
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3640713 Siemens 6ES75521AA010AB0 6ES7552-1AA01-0AB0 PLC digital I/O module 24 V
Description
SIMATIC S7-1500, TM Timer DIDQ 24x24V time-controlled digital inputs and outputs max. 8DI, 16DQ of which max. 24 with time stamp, counting, PWM, oversampling. For shipbuilding approvals, see SIMATIC ET 200MP product information is a modular, scalable and universally usable I/O system in IP20 and offers the same system advantages as the S7-1500. It allows the shortest bus cycle times and the fastest response times, even for large quantity structures. The distributed I/O system is particularly easy to install, to wire and put into operation. The scalable design allows you to tailor the I/O station exactly to the needs on-site. Technology modules offer hardware-level signal preprocessing for fast counting, accurate measuring, position detection and pulse width modulation for different encoders and actuators and the control of stepper motor drives and servo drives via the PTI interface.
