Siemens 6ES7677-2DD43-0GB0 6ES76772DD430GB0 Open controller
EAN:
Part number:
Item no:
Technical specifications
- Product type
Open controller
- Interfaces
2x PROFINET
3x HW-Interface Industrial Ethernet
3x HW port USB
- Supported protocols
TCP/IP, ASI, MODBUS, PROFINET IO
- Min. operating voltage
19.2 V DC
- Operating voltage
19.2 - 28.8 V DC
- Max. operating voltage
28.8 V DC
- Height
117 mm
- Length
75 mm
- Width
160 mm
IP20
- Type
6ES7677-2DD43-0GB0
- Manufacturer part #
6ES76772DD430GB0

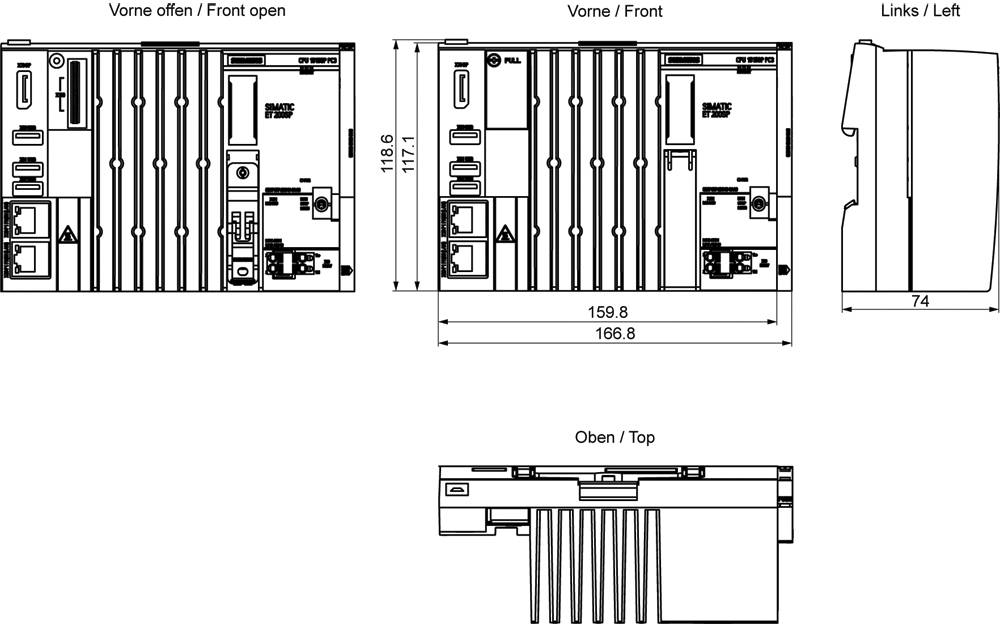

- Dim
(L x W x H) 75 x 160 x 117 mm
- Display
Optional
- Fitting type (details)
Mounting rail mounting, wall-/direct assembly possible
- Series
ET 200
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3749733 Siemens 6ES7677-2DD43-0GB0 6ES76772DD430GB0 Open controller
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
Area of application e.g.:small and special machines: Packaging, encompassing and wrapping machines .Food industry: kneading, cutting machines, Mixing .Laboratory: Lab mixer, steam ovens, vacuum pumps, suction mechanisms.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU through a connector.
