Siemens 6ES7923-0BC00-0FB0 6ES79230BC000FB0 PLC cable 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Cable type: Round cable
- Number of pins: 16
- Number of channels: 8
- Design of the electrical connection on the housing: Wire-end sleeve
- Design of the electrical connection on the field side: Connector strip
- Outer diameter of cable sheath: 6.5 mm
- Conductor cross-section / nominal value: 0.14 mm²
- Cable length 2 m
- Product type
PLC cable
- Type
6ES7923-0BC00-0FB0
- Manufacturer part #
6ES79230BC000FB0
- Operating voltage
60 V DC (max)
- Max. operating voltage
60 V DC
- Operating voltage
24 V DC
- Length
2 m
- Series
S7-1200
- Content
1 pc(s)
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
Documents & Downloads
Datasheet
Datasheet 2263670 Siemens 6ES7923-0BC00-0FB0 6ES79230BC000FB0 PLC cable 24 V DC
User & Safety Instructions
User & Safety Instructions 2263670 Siemens 6ES7923-0BC00-0FB0 6ES79230BC000FB0 PLC cable 24 V DC
Description

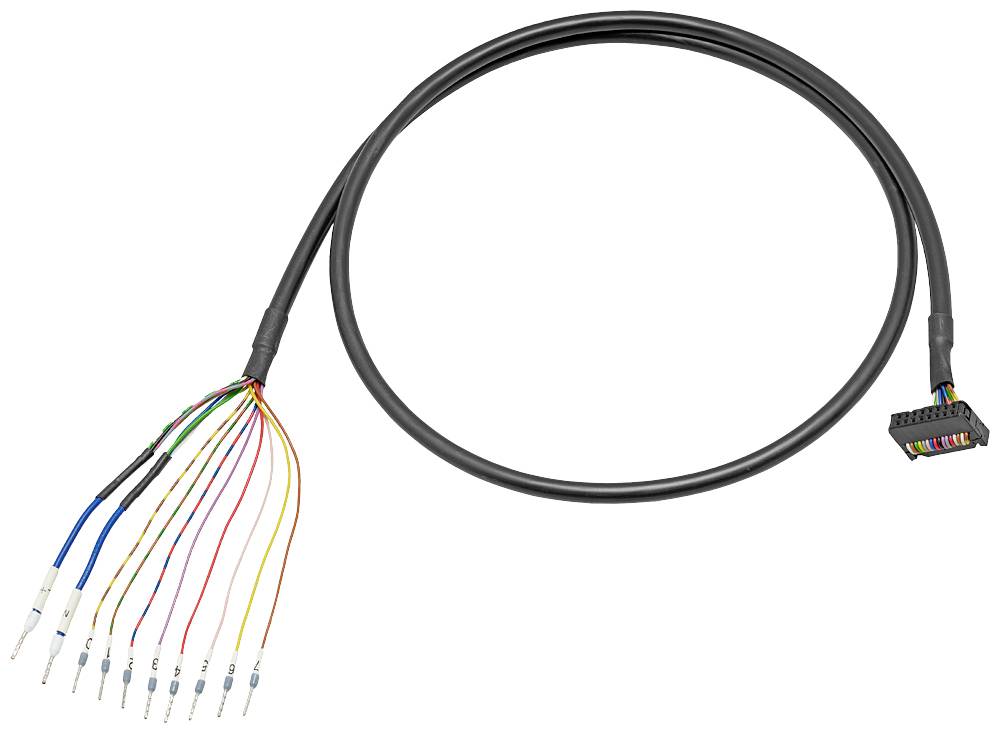

Connection cable unshielded one-sided IDC connector for connection modules 8 I/O and open ends m. Wire-end sleeve labeled for connecting the control, L = 2.0m, 0.14mm2 the 16-pin round cable (unshielded) with a length of 2.0m represents the link between the control and the connection module. This pre-assembled cable enables trouble-free and safe signal flow. This means that even complex installations remain manageable and can be checked in the shortest possible time, was particularly affordable for maintenance and expansions. This pre-assembled connection cable is part of the fully modular connection of SIMATIC TOP connect for the fastest and safest system cabling. Apart from a low wiring effort, sources of errors in the cabling can be significantly reduced. Sensors and actuators from the I/O are connected to the connection modules of SIMATIC TOP connect and connected to the controller via connecting cables.
