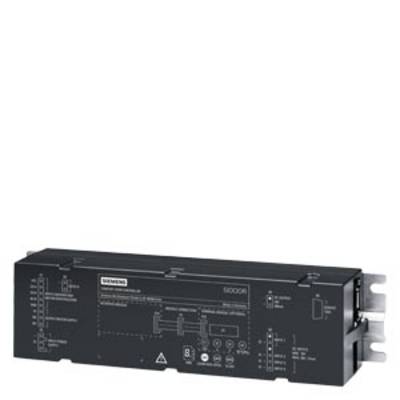

Siemens 6FB11411AT113WE2 Controller
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 810.92 / piece)
€ 810.92
plus VAT.
14-day return policy included
Technical specifications
- Active power consumed max.: 540 W
- Active power consumed in standby mode: 5 W
- Installation altitude at altitude above NN, max.: 2000 m
- Input voltage per DC input, max.: 28 V
- Output voltage at DC: 24 V
- Input current per DC input, max.: 27 mA
- Output current at 24 V/DC output, max.: 400 mA
- Counterforce, max.: 75 N
- Operating cycle frequency of the door, max.: 180 1/h
- Weight of the door, max.: 600 kg
- Opening width of the door, max.: 5 m
- Ambient temperature during operation: -20 °C to +50 °C.
- Product type
Controller
- Width
320 mm
- Height
60 mm
- Depth
80 mm
- Operating voltage
38 V DC
- Dim
(W x H x D) 320 x 60 x 80 mm
- Hub
Not required
Control device
5000 mm
TRUE
External
145 W
TRUE
600 kg
TRUE
TRUE
IP20
FALSE
0.4 A
36 V
10.0-28.0 V
0.009-0.027 A
0.05
Documents & Downloads
Datasheet
Datasheet 1685634 Siemens 6FB11411AT113WE2 Controller
User & Safety Instructions
User & Safety Instructions 1685634 Siemens 6FB11411AT113WE2 Controller
Description
SIDOOR ATD401W control unit for machine tools, up to 600kg door weight, 36VDC, 1*RS485, 4*DI, 3*Relays, 1*24VDC out-20 to +50° Celsius, EN 13849, Performance Level D the SIDOOR controllers convince by one-button start-up and the thus achieved certified safety according to EN ISO 14120 (force, energy) and EN ISO 13849-1 PL d. In addition, a two-channel profile changeover for a robot load or two-hand operation can be implemented simply but safely. Thanks to the PROFINET connection to a SIMATIC or SINUMERIK, Mindsphere enables innovative maintenance concepts. THE SIDOOR controllers for industrial plant and machine protection doors, cooling room doors or escape tunnel doors are available as PROFINET, PROFIBUS or RELAY versions. There are ALSO DOOR controllers FOR elevator doors and gates, railway doors and platform doors. The SIDOOR DIN RAIL HOLDER is available as an accessory for installation in the control cabinet. With THE SIDOOR SOFTWARE KIT, firmware updates can be imported and support with a precise recording of the travel curve, as well as the possibility to read and write the parameter set. The recommended power supply is SITOP PSU8200 13 A / 36 V (plus secondary-side cable protection 5SY4108-7) or THE SIDOOR NT40. Depending on the desired dynamic response, THE SIDOOR TRANSFORMER can be used for a mass to be moved up to 400 kg. For moving masses up to 700 kg there are released motors, THE SIDOOR MDG3, MDG4 and MDG5 optimized for the industrial environment as well as the standard versions SIDOOR M3, M4 and M5.
