Siemens 6GK1905-0CD00 Hybrid connector LAN data transfer rate 12 MBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Suitability for use: For connection to ECOFAST Hybrid lines, transmission of data and energy
- Type of cable outlet: 90° cable outlet
- Case material: Plastic
- Product type
Hybrid connector
- LAN data transfer rate
12 MBit/s
- Type
6GK1905-0CD00

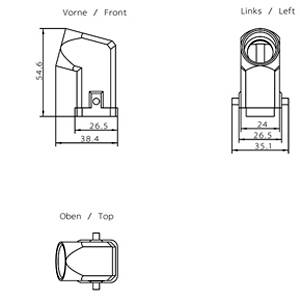

- Dim
(W x H x D) 27 x 27 x 71 mm
- Weight
40 g
- Width
27 mm
- Height
27 mm
- Depth
71 mm
IP65
IP67
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2864886 Siemens 6GK1905-0CD00 Hybrid connector LAN data transfer rate 12 MBit/s
User & Safety Instructions
User & Safety Instructions 2864886 Siemens 6GK1905-0CD00 Hybrid connector LAN data transfer rate 12 MBit/s
Description
PROFIBUS ECOFAST hybrid angled plug (ECOFAST Cu) - 2x Cu- 4x1.5 mm2 Cu socket insert Hanbird-plug 1 pack=5 PB ECOFAST hybrid plug angled
