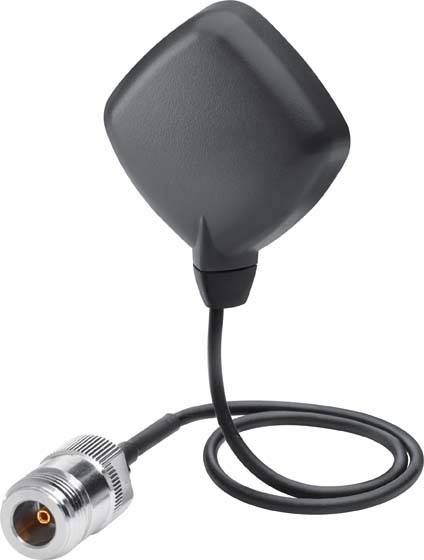

Siemens 6GK58956ML000AA0 GPS antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
14-day return policy included
Technical specifications
- Radiation characteristics: GPS
- Connector type: Female
- Fastening method: Magnet or screw fixing
- Suitable for outdoor use: Yes
- Suitable for indoor use: Yes
- Cable length of the antenna cable: 0.3 m.
- Polarization: Clockwise circular
- Connection cable: Yes
- Protection class: IP67
- Ambient temperature during operation, min. -40 °C
- Ambient temperature during operation, max. +85 °C.
- Supply voltage from antenna cable, max. 5 V
- Number of antenna electrical connections: 1
- Number of delivery units: 1
- Product type
GPS antenna
- Type
6GK5895-6ML00-0AA0
- Manufacturer part #
6GK58956ML000AA0
- Dim
(L x W x H) 12 x 45 x 51 mm
- Weight
130 g
- Width
45 mm
- Height
51 mm
- Length
12 mm
IP67
Other
45
51 mm
12 mm
Bus
N
0.3 m
TRUE
TRUE
TRUE
IP67
-40-85 °C
Documents & Downloads
Datasheet
Datasheet 1738563 Siemens 6GK58956ML000AA0 GPS antenna
User & Safety Instructions
User & Safety Instructions 1738563 Siemens 6GK58956ML000AA0 GPS antenna
Description
ANT895-6ML GPS Antenna Antenna Antenna with integrated signal amplifier incl. 0.3m connection cable and N-Female plug- 3 dBi IP67 (-40...+85°C) Mounting with magnet or screw fixing Please note country approvals- Compact instructions on paper German/English- Delivery scope: 1x ANT 895-6ML Antenna ANT895-6MLZum Reception of signals in a global navigation satellite system. These signals can be used to determine the exact position and time of the connected device. Application examples: – Time synchronization: Synchronization, for example, of a church clock with the UTC time (coordinated world time). The time is obtained from the data of the GPS signal. – Position detection/container tracking: The GPS position data can be used to trace the path of a container, for example. Unified time of all nodes in the communication network by synchronizing with the satellite time. – precise knowledge of the location or movement of the individual devices connected to GPS by evaluating the received signals. – integrated, low-noise signal amplifier for reliable analysis of received data, even at low signal strength. – Two-stage SAW filter with high attenuation allows the antenna to be placed near other transmitters.
