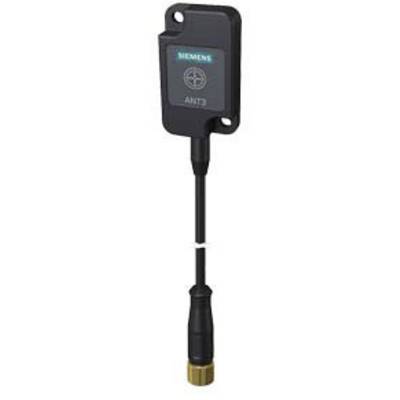

Siemens 6GT23981CD400AX0 6GT2398-1CD40-0AX0 Antenna
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 441.18 / piece)
€ 441.18
plus VAT.
14-day return policy included
Technical specifications
- Antenna for RF250R/RF350R, 3m cable
- Material: PA6V0
- Shock acceleration: 500 m/s²
- Range: 0,035 m
- Mounting type: 2 screws M4
- Design of the electrical connection: M8, 4-pin
- Product type
Antenna
- Width
28 mm
- Height
50 mm
- Depth
10 mm
- Type
6GT2398-1CD40-0AX0
IP67
- Factory colour
Black
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1705163 Siemens 6GT23981CD400AX0 6GT2398-1CD40-0AX0 Antenna
User & Safety Instructions
User & Safety Instructions 1705163 Siemens 6GT23981CD400AX0 6GT2398-1CD40-0AX0 Antenna
Description
RF300/RF200 ANT 3 antenna for connection to RF250R and RF350R IP67, -25 to +70°C, dimensions 50x 28x 10 mm incl. PUR antenna cable, UL 758, length 3 m drag chain capable Plug M8 straight/M8 angled consisting of: 1x 6GT23981CD300AX0 1x 6GT23910AH30 Antenna ANT 3 with antenna cable Antenna with flat, compact design, which can be positioned very precisely even in confined spaces. It is suitable for use with very small transponders and can be easily installed in small assembly lines.The flat, compact design allows the antenna to be positioned very precisely even in confined spaces.
